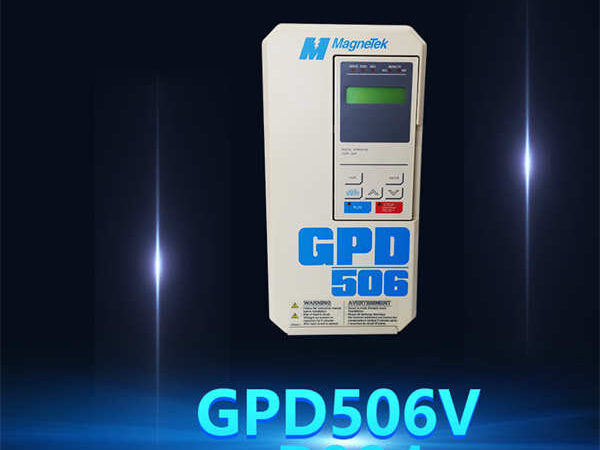

MAGNETEK GPD506V-B004是一款高性能交流伺服控制器，专为工业自动化领域设计，广泛应用于需要精确速度和位置控制的场景。以下是其核心功能与技术特点的综合概述：

一、产品定位与核心功能

伺服驱动控制

-作为模块化驱动器，支持三相交流输入（380-460VAC，50/60Hz），输出0-460VAC和0-400Hz频率，适用于3HP电机驱动，提供高精度位置、速度和转矩控制。

多行业兼容性

-适用于钢厂、电厂、水泥、化工、造纸、CNC数控机床等行业，支持与PLC、机器人等设备协同工作，优化生产效率与控制精度。

二、技术参数与性能

电气特性

-输入电压：380-460VAC，三相，支持宽电压范围输入。

-输出参数：最大电流5.1A，输出频率0-400Hz，适应不同负载需求。

-效率与损耗：采用高效能设计，减少能量损耗，提升系统能效。

环境适应性

-工作温度：0°C至60°C，适应工业现场复杂环境。

-湿度范围：5%至95%（非冷凝），具备防潮防护能力。

防护认证

-符合CE认证标准，确保电气安全与电磁兼容性。

三、设计优势

模块化与灵活性

-控制室安装设计，支持DIN导轨固定，便于集成与扩展。

-支持硬PLC指令处理器，兼容多种工业协议，简化系统配置。

高可靠性

-内置过压、过流保护功能，延长设备使用寿命。

-紧凑型结构，节省空间并提升散热效率。

维护便捷性

-支持远程参数配置与故障诊断，降低人工维护成本。

四、应用场景

工业机器人

-控制机械臂关节运动，实现精准定位与高速响应。

数控机床

-驱动主轴及进给系统，提升加工精度与效率。

能源与化工

-调节泵、压缩机等设备转速，优化工艺流程。

物流自动化

-驱动传送带、分拣系统，实现智能化物料运输。

MAGNETEK GPD506V-B004 is a high-performance AC servo controller designed for industrial automation and widely used in scenarios requiring precise speed and position control.The following is a comprehensive overview of its core functions and technical features:

I.Product positioning and core functions

Servo drive control

-As a modular drive,it supports three-phase AC input(380-460VAC,50/60Hz),outputs 0-460VAC and 0-400Hz frequency,suitable for 3HP motor drive,providing high-precision position,speed and torque control.

Multi-industry compatibility

-Suitable for industries such as steel mills,power plants,cement,chemicals,papermaking,CNC machine tools,etc.,supports working with PLC,robots and other equipment to optimize production efficiency and control accuracy.

II.Technical parameters and performance

Electrical characteristics

-Input voltage:380-460VAC,three-phase,supports wide voltage range input.

-Output parameters:maximum current 5.1A,output frequency 0-400Hz,adapt to different load requirements.

-Efficiency and loss:adopt high-efficiency design to reduce energy loss and improve system energy efficiency.

Environmental adaptability

-Working temperature:0°C to 60°C,adapt to the complex environment of industrial sites.

-Humidity range:5%to 95%(non-condensing),with moisture protection.

Protection certification

-Meet CE certification standards to ensure electrical safety and electromagnetic compatibility.

III.Design advantages

Modularity and flexibility

-Control room installation design,support DIN rail fixation,easy integration and expansion.

-Support hard PLC instruction processor,compatible with multiple industrial protocols,simplify system configuration.

High reliability

-Built-in overvoltage and overcurrent protection functions to extend the service life of the equipment.

-Compact structure,save space and improve heat dissipation efficiency.

Convenient maintenance

-Support remote parameter configuration and fault diagnosis,reduce manual maintenance costs.

IV.Application scenarios

Industrial robots

-Control the movement of the robot arm joints to achieve precise positioning and high-speed response.

CNC machine tools

-Drive the spindle and feed system to improve processing accuracy and efficiency.

Energy and Chemical Industry

-Adjust the speed of equipment such as pumps and compressors to optimize the process flow.

Logistics Automation

-Drive conveyor belts and sorting systems to achieve intelligent material transportation.
