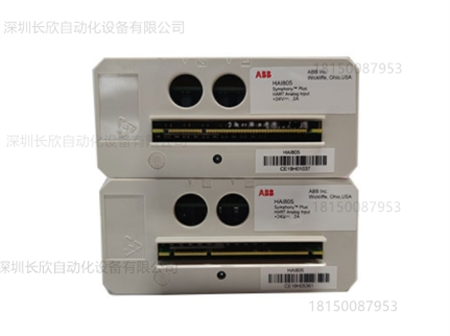

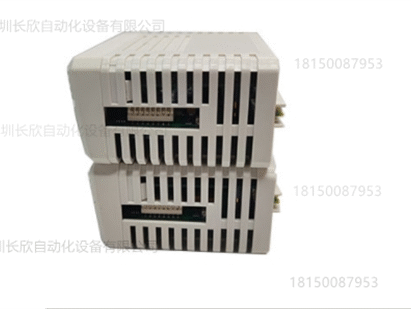

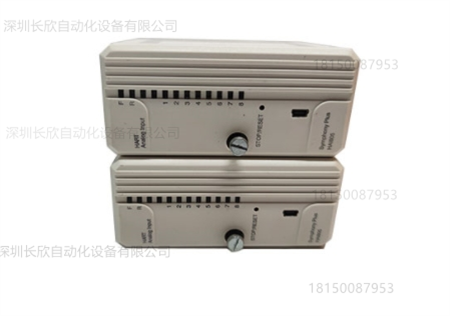

ABB HAI805是一款8通道模拟输入模块，属于ABB Symphony Plus S+I/O系列，主要用于工业自动化和过程控制系统中模拟信号的采集与转换。以下是其详细信息：
技术参数
通道数量：8路独立配置通道。
输入信号类型：4-20mA电流信号和0-10VDC电压信号。
HART支持：每路通道配有专门的HART Modem，支持HART协议。
分辨率：12位。
精度：电流信号精度为0.10%，温度对测量精度的影响最大为±0.003%/°C。
隔离电压：输入部分电隔离，隔离电压为300VDC/VRMS，60Hz下1400V AC持续2秒。
采样率：可配置，模数转换速度在100毫秒内完成全部通道。
电源需求：200mA时，24VDC±10%，典型值5W。
尺寸：59mm×186mm×127mm。
重量：约0.56kg。
产品特点
高精度：采用先进的模数转换技术，确保信号采集的准确性。
高可靠性：设计用于工业环境，具有良好的稳定性和抗干扰能力。
灵活配置：可根据需求调整输入范围、滤波方式等参数。
模块化设计：便于安装和维护，支持扩展。
兼容性强：与ABB系统无缝集成，也支持与其他设备兼容。
应用领域
工业自动化：用于监测生产过程中的温度、压力、流量等物理量。
能源管理：监测和控制能源系统中的参数，提高能源效率。
环境监测：测量环境中的空气质量、湿度等参数。
建筑自动化：控制和监测建筑内的温度、湿度、照明等。
过程控制：应用于化工、石油、制药等行业的过程控制系统中。
水处理：监测水处理过程中的水质、流量等参数。
The ABB HAI805 is an 8-channel analog input module belonging to the ABB Symphony Plus S+I/O series,primarily used for analog signal acquisition and conversion in industrial automation and process control systems.Here are its detailed specifications:
Technical Specifications
Number of Channels:8 independently configurable channels.
Input Signal Type:4-20mA current signals and 0-10VDC voltage signals.
HART Support:Each channel has a dedicated HART modem supporting the HART protocol.
Resolution:12-bit.
Accuracy:Current signal accuracy is 0.10%,with a maximum temperature effect on measurement accuracy of±0.003%/°C.
Isolation Voltage:Electrically isolated input section with an isolation voltage of 300VDC/VRMS,1400V AC for 2 seconds at 60Hz.
Sampling Rate:Configurable;analog-to-digital conversion speed completes for all channels within 100 milliseconds.
Power Requirements:24VDC±10%at 200mA,typical value 5W.
Dimensions:59mm×186mm×127mm.
Weight:Approx.0.56kg.
Product Features:
High Precision:Utilizes advanced analog-to-digital conversion technology to ensure accurate signal acquisition.
High Reliability:Designed for industrial environments,offering excellent stability and anti-interference capabilities.
Flexible Configuration:Input range,filtering methods,and other parameters can be adjusted according to requirements.
Modular Design:Facilitates installation and maintenance,and supports expansion.
Strong Compatibility:Seamlessly integrates with ABB systems and is compatible with other devices.
Application Areas:
Industrial Automation:Used for monitoring physical quantities such as temperature,pressure,and flow rate in production processes.
Energy Management:Monitors and controls parameters in energy systems to improve energy efficiency.
Environmental Monitoring:Measures parameters such as air quality and humidity in the environment.
Building Automation:Controls and monitors temperature,humidity,lighting,etc.,within buildings.
Process Control:Applied in process control systems in industries such as chemical,petroleum,and pharmaceutical.
Water treatment:Monitoring parameters such as water quality and flow rate during the water treatment process.
