一、核心技术参数

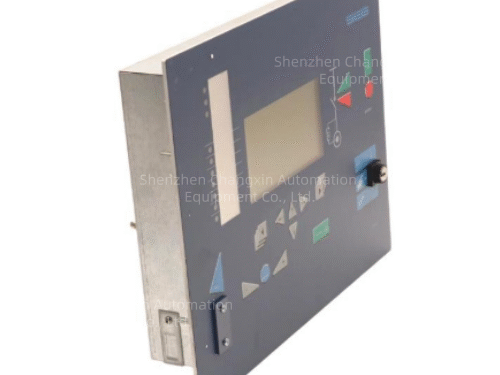

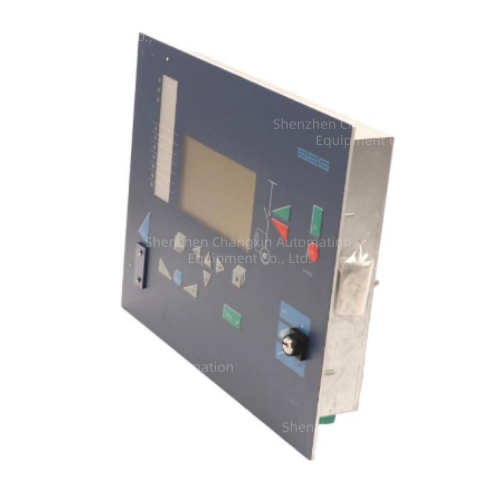

品牌型号：Woodward伍德沃德CMW112
产品类型：工业级操作员控制面板（HMI人机交互界面）
原产地：美国
整机尺寸：19.1 cm×2.5 cm×23.5 cm
整机重量：0.3 kg
质保期：常规全新备件提供12个月原厂质保
工作环境：支持户外严苛工业环境长期稳定运行
交互方式：物理按键/触控屏双模式可选
通讯接口：内置多组工业标准通讯端口，适配现场控制系统对接
二、核心功能特性
实时状态监测：可直观显示风速、风向、机组输出功率、转子转速等风力发电机组核心运行参数
系统全流程控制：支持风力发电机组的启动、停机、故障复位等全系列操作，适配机组日常运维需求
运行数据记录：自动存储机组全周期运行数据，为后续工况分析、故障溯源提供完整数据支撑
友好人机交互：搭载直观易操作的显示界面，无需复杂培训即可快速完成参数配置与日常操作
多场景适配能力：除风力发电机组外，也可适配内燃机等工业动力设备的控制场景，实现发动机转速、负荷的精准调节
工业级耐用设计：紧凑轻量化结构，可抵御户外复杂环境的粉尘、温变干扰，长期运行稳定性强
三、典型适配场景
风力发电机组主控系统的人机交互工位备件替换，快速恢复机组运行状态的本地监控与操作能力
工业内燃机动力设备的本地控制工位，适配高可靠性连续运行工况
分布式风电、自备电站动力机组的本地运维操作工位，满足户外长期不间断运行要求
工业现场该类控制面板的预防性备件储备，避免突发故障导致机组本地操作与状态监控中断
