描述
产品简要说明

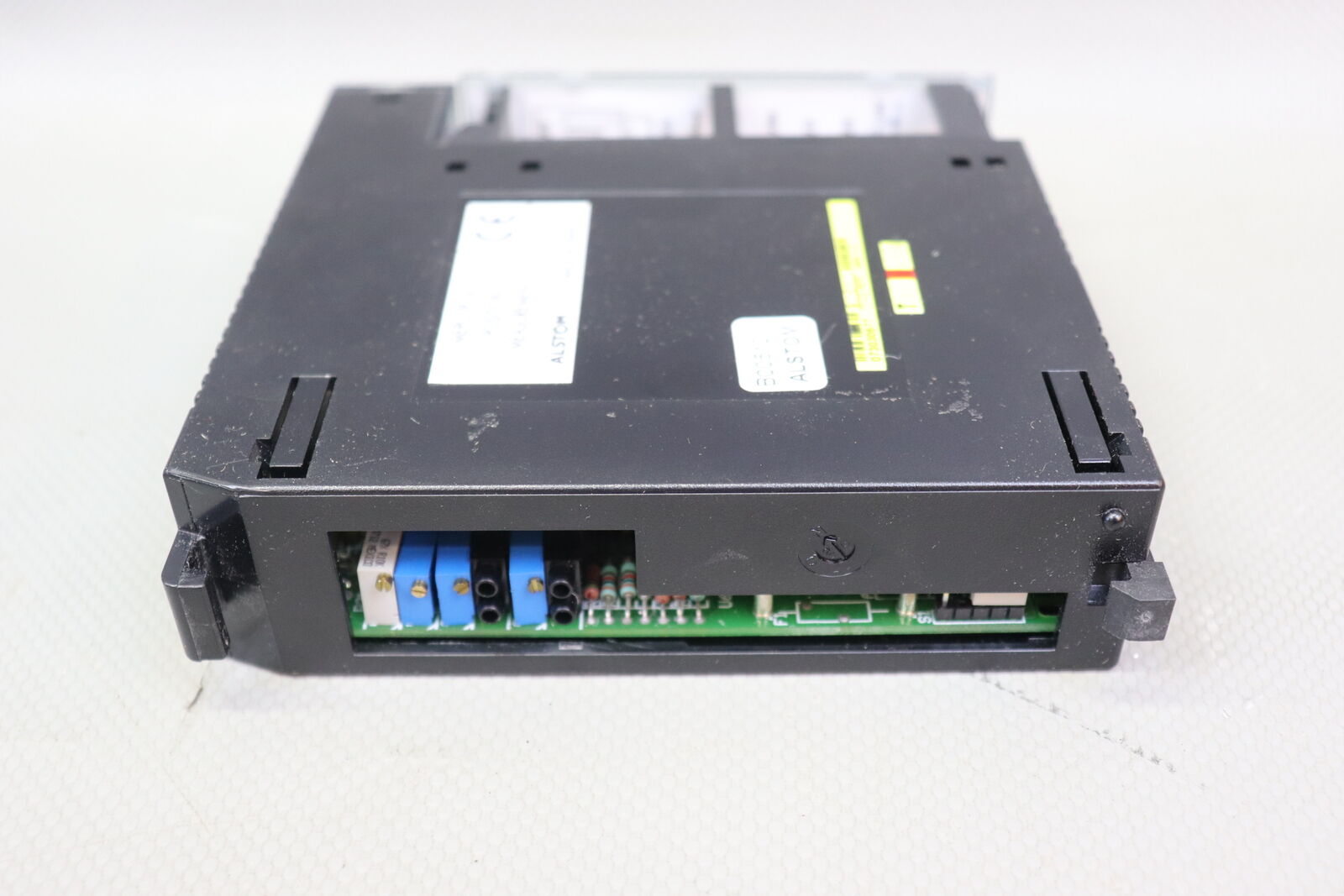

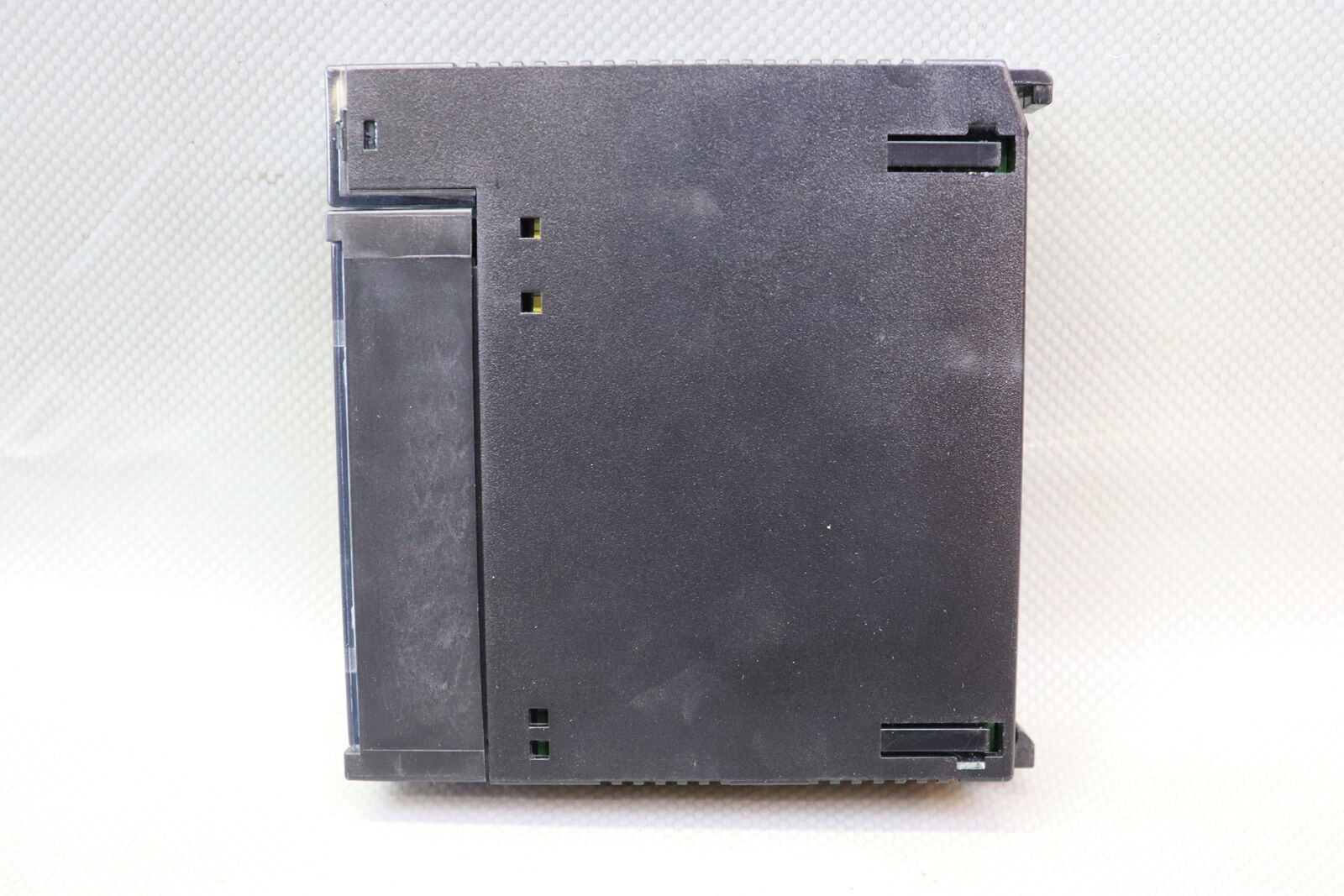

Alstom Mepo IP143 CS-C3是一款工业级智能保护继电器，专为电力系统与关键设备防护设计，核心功能包括：
多通道故障监测：支持过流、过压、短路等异常检测，响应时间≤10ms
通信集成：内置EtherNet/IP与Modbus TCP协议，实现远程监控
宽温适应性：-40℃至70℃工作温度，IP65防护等级
产品详细说明
1.硬件架构与保护功能
核心检测模块：
过流保护：支持16路独立输入通道（AC 0-10A），精度±1%
短路保护：瞬时电流检测阈值可配置（100A至2000A）
过压保护：电压范围0-1000V，响应延迟≤5ms
隔离设计：
输入输出通道电气隔离（耐压≥4kV）
抗电磁干扰（符合IEC 61000-4-4标准）
2.智能通信与诊断
协议支持：
EtherNet/IP（实时数据传输，延迟≤20ms）
Modbus TCP（兼容工业物联网平台）
故障诊断：
本地存储10,000条事件日志
支持远程触发复位与参数配置
3.工业场景适配
轨道交通应用：
适应地铁牵引系统瞬时大电流冲击
符合EN 50121-3-2铁路电磁兼容标准
电力系统兼容性：
支持三相四线制电力分配网络
耐受50Hz/60Hz频率波动
技术规格:Alstom Mepo IP143 CS-C3
参数项规格描述
检测通道16路独立输入（过流/过压/短路）
通信接口1×EtherNet/IP+1×Modbus TCP
工作电压AC 220V±10%/DC 24V±10%
防护等级IP65（防尘防水）
工作温度-40℃至70℃
核心价值与性能亮点
1.毫秒级故障响应
技术突破：在风电场变流器保护中，过流检测响应时间提升至10ms，减少设备损坏风险
2.远程运维优化
场景案例：某化工厂项目中，EtherNet/IP通信实现故障诊断效率提升80%
Product brief description
Alstom Mepo IP143 CS-C3 is an industrial-grade intelligent protection relay designed for protection of power systems and critical equipment.The core functions include:
Multi-channel fault monitoring:supports abnormal detection such as overcurrent,overvoltage,short circuit,etc.,and the response time is≤10ms
Communication integration:Built-in EtherNet/IP and Modbus TCP protocols to realize remote monitoring
Wide temperature adaptability:-40℃to 70℃operating temperature,IP65 protection level
Product details
1.Hardware architecture and protection functions
Core detection module:
Overcurrent protection:Supports 16 independent input channels(AC 0-10A),with accuracy of±1%
Short circuit protection:Instantaneous current sensing threshold can be configured(100A to 2000A)
Overvoltage protection:voltage range 0-1000V,response delay≤5ms
Isolation design:
Electrical isolation of input and output channels(withstanding voltage≥4kV)
Anti-electromagnetic interference(compliant with IEC 61000-4-4 standard)
2.Intelligent communication and diagnosis
Protocol support:
EtherNet/IP(real-time data transmission,delay≤20ms)
Modbus TCP(compatible with industrial IoT platform)
Troubleshooting:
10,000 event logs are stored locally
Support remote trigger reset and parameter configuration
3.Industrial scenario adaptation
Rail Transit Application:
Adapt to the instantaneous high current impact of subway traction system
Comply with EN 50121-3-2 railway electromagnetic compatibility standard
Power system compatibility:
Supports three-phase and four-wire power distribution network
Tolerate 50Hz/60Hz frequency fluctuations
Technical Specifications:Alstom Mepo IP143 CS-C3
Parameters Specification Description
Detection channel 16 independent inputs(overcurrent/overvoltage/short circuit)
Communication interface 1×EtherNet/IP+1×Modbus TCP
Operating voltage AC 220V±10%/DC 24V±10%
Protection level IP65(dust-proof and waterproof)
Operating temperature-40℃to 70℃
Core Valuesand Performance Highlights
1.Millisecond fault response
Technical breakthrough:In the protection of wind farm converter,the overcurrent detection response time is increased to 10ms,reducing the risk of equipment damage
2.Remote operation and maintenance optimization
Scenario case:In a chemical plant project,EtherNet/IP communication achieves 80%improvement in fault diagnosis efficiency
