描述
产品简要说明

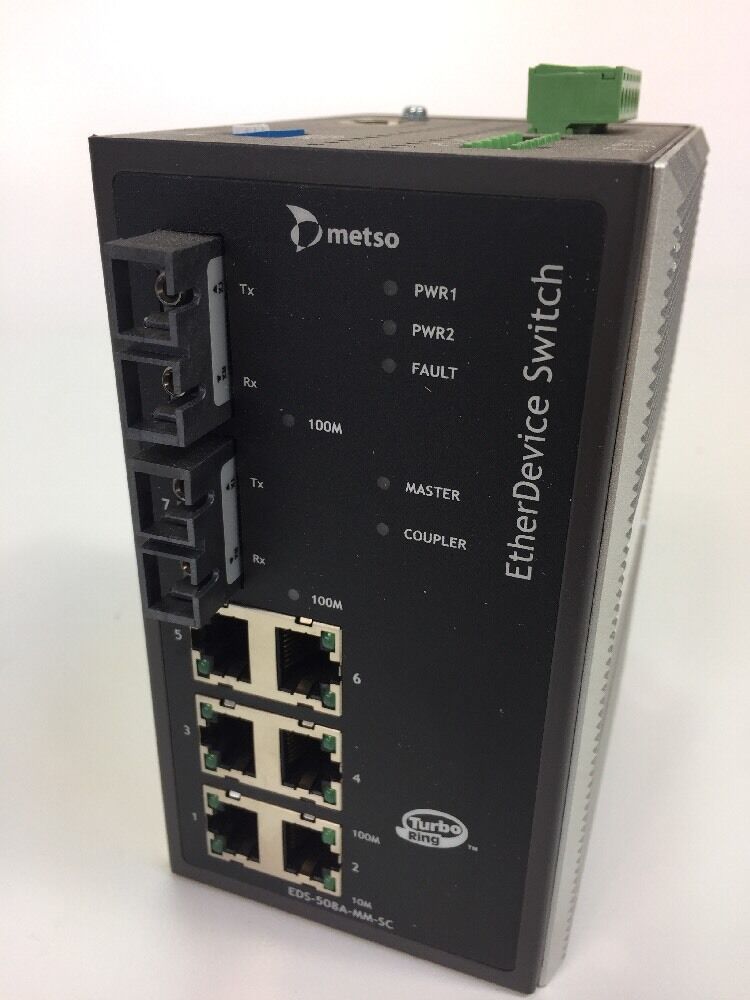

Metso EDS-508A-MM-SC是一款工业级网管型以太网交换机，核心功能包括：
端口配置：6个10/100BaseT(X)电口+2个100BaseFX多模光纤SC接口
冗余设计：支持Turbo Ring（自愈时间＜20ms）和RSTP/STP网络冗余
工业环境适配：工作温度-0℃至60℃，抗电磁干扰（EMI/EMC）
协议兼容：支持EtherNet/IP、Modbus/TCP、PROFINET工业协议
产品详细说明
1.技术架构与核心功能
网络冗余能力：
Turbo Ring技术：实现双环网拓扑，故障自愈时间≤20ms（优于传统STP协议的300ms）
链路聚合：支持端口聚合提升带宽利用率，最大带宽达2Gbps
工业协议支持：
工业自动化协议：兼容EtherNet/IP（CIP）和Modbus/TCP，支持透明数据传输
时间同步：集成IEEE 1588 PTP V2协议，实现微秒级时间同步
网络管理功能：
CLI与SNMP：支持命令行界面和SNMPv1/v2c/v3协议，实现远程监控
VLAN管理：支持Port-based VLAN、IEEE 802.1Q VLAN及GVRP协议
2.工业环境适配性
温度与防护：
宽温设计：-0℃至60℃工作温度（部分型号支持-40℃至75℃）
无风扇结构：采用工业级散热设计，MTBF（平均无故障时间）达260千小时
抗干扰能力：
光纤传输：SC接口多模光纤支持，避免电磁干扰（EMI/EMC）问题
物理防护：符合IP40防护等级，防尘防滴溅
3.安全与可靠性
安全防护：
多层认证：支持TACACS+/RADIUS、IEEE 802.1X端口认证
加密传输：HTTPS/SSH协议保障管理通道安全
故障告警：
邮件与继电器：通过E-mail和继电器输出自动报告网络异常
技术规格:Metso EDS-508A-MM-SC
参数项规格描述
端口配置6×10/100BaseT(X)+2×100BaseFX多模光纤（SC接口）
冗余协议Turbo Ring（自愈时间＜20ms）、RSTP/STP/MSTP
工作温度-0℃至60℃（宽温型号支持-40℃至75℃）
协议支持EtherNet/IP、Modbus/TCP、PROFINET、IPv6 Ready
网络管理CLI、SNMPv1/v2c/v3、RMON、IGMP Snooping
安全功能TACACS+/RADIUS、SSH/HTTPS、端口锁定、MAC地址过滤
Product brief description
Metso EDS-508A-MM-SC is an industrial-grade managed Ethernet switch with core functions including:
Port configuration:6 10/100BaseT(X)ports+2 100BaseFX multimode fiber SC interfaces
Redundant design:Supports Turbo Ring(self-healing time<20ms)and RSTP/STP network redundancy
Industrial environment adaptation:working temperature-0℃to 60℃,anti-electromagnetic interference(EMI/EMC)
Protocol compatibility:Supports EtherNet/IP,Modbus/TCP,PROFINET industrial protocols
Product details
1.Technical architecture and core functions
Network redundancy capability:
Turbo Ring technology:realize dual-ring network topology,fault self-healing time≤20ms(better than 300ms of traditional STP protocol)
Link aggregation:Supports port aggregation to improve bandwidth utilization,with a maximum bandwidth of 2Gbps
Industrial Agreement Support:
Industrial automation protocol:compatible with EtherNet/IP(CIP)and Modbus/TCP,and supports transparent data transmission
Time synchronization:Integrate IEEE 1588 PTP V2 protocol to achieve microsecond time synchronization
Network management functions:
CLI and SNMP:Support command line interface and SNMPv1/v2c/v3 protocol to realize remote monitoring
VLAN management:Supports Port-based VLAN,IEEE 802.1Q VLAN and GVRP protocols
2.Industrial environment adaptability
Temperature and protection:
Wide temperature design:-0℃to 60℃operating temperature(some models support-40℃to 75℃)
Fanless structure:adopts industrial-grade heat dissipation design,MTBF(average failure-free time)reaches 260 thousand hours
Anti-interference ability:
Fiber Optic transmission:SC interface multimode fiber support to avoid electromagnetic interference(EMI/EMC)problems
Physical protection:Comply with IP40 protection level,dustproof and splash-proof
3.Safety and reliability
Safety protection:
Multi-layer authentication:Supports TACACS+/RADIUS and IEEE 802.1X port authentication
Encrypted transmission:HTTPS/SSH protocol ensures the security of management channels
Fault alarm:
Mail and Relay:Automatically report network abnormalities through E-mail and relay outputs
Technical Specifications:Metso EDS-508A-MM-SC
Parameters Specification Description
Port configuration 6×10/100BaseT(X)+2×100BaseFX multimode fiber(SC interface)
Redundant protocol Turbo Ring(self-healing time<20ms),RSTP/STP/MSTP
Operating temperature-0℃to 60℃(Wide temperature model supports-40℃to 75℃)
Protocol supports EtherNet/IP,Modbus/TCP,PROFINET,IPv6 Ready
Network Management CLI,SNMPv1/v2c/v3,RMON,IGMP Snooping
Security functions TACACS+/RADIUS,SSH/HTTPS,port locking,MAC address filtering
