描述
产品简要说明

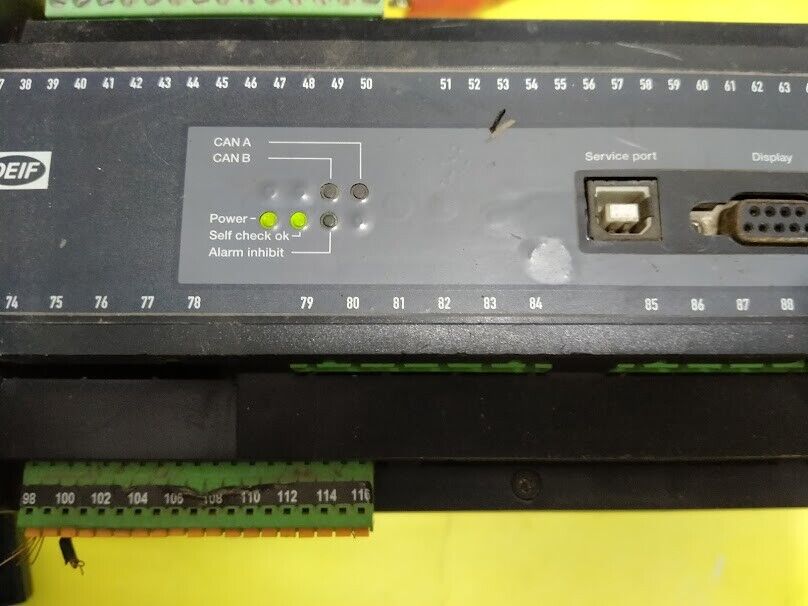

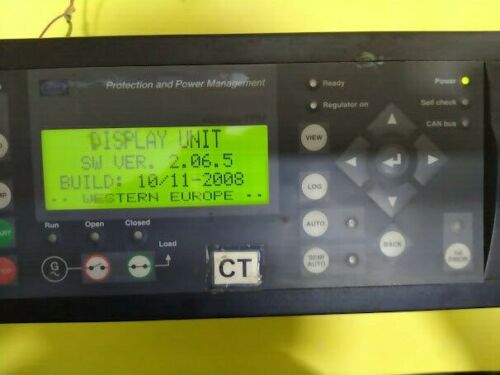

PPM DG 500005124.10是DEIF专为复杂电力环境设计的智能控制器，具备以下核心能力：
多源协同控制：支持柴油机、光伏、储能系统的动态功率分配
电网适应性：自动补偿电压波动与频率偏差（±1%精度）
远程诊断：通过Web界面实现参数配置与故障代码解析
产品详细说明
1.系统架构与控制逻辑
核心处理单元
实时操作系统：
基于VxWorks的双核ARM Cortex-A9处理器（主频800MHz）
控制算法库：
集成自适应PID、模糊逻辑及模型预测控制（MPC）算法
功率协调策略
运行模式控制优先级典型响应时间
孤岛运行频率稳定性>负载均衡20ms
并网运行电能质量>经济性15ms
混合储能SOC均衡>谐波抑制30ms
2.接口与通信协议
物理接口
模拟量输入：
12通道隔离式电压/电流输入（±10V/0～20mA）
数字量输出：
4通道继电器干触点（耐压500VAC）
网络通信
工业以太网：
EtherNet/IP+Modbus TCP双协议栈
无线扩展：
可选配LoRaWAN模块（满足IEC 62056智能电表通信标准）
产品概述:PPM DG 500005124.10
作为DEIF风电与船舶电力控制产品线的重要成员，PPM DG 500005124.10通过高精度功率调节与多协议兼容设计，为离网电站、混合储能系统及海上平台提供全生命周期电力管理方案，支持从单机调试到集群优化的全场景覆盖。
Product brief description
PPM DG 500005124.10 is an intelligent controller designed by DEIF for complex power environments,with the following core capabilities:
Multi-source collaborative control:supports dynamic power distribution of diesel engines,photovoltaics,and energy storage systems
Grid adaptability:Automatically compensate for voltage fluctuations and frequency deviation(±1%accuracy)
Remote diagnostics:implement parameter configuration and fault code analysis through the web interface
Product details
1.System architecture and control logic
Core processing unit
Real-time operating system:
Dual-core ARM Cortex-A9 processor based on VxWorks(main frequency 800MHz)
Control algorithm library:
Integrated adaptive PID,fuzzy logic and model predictive control(MPC)algorithm
Power Coordination Strategy
Operation mode Control priority Typical response time
Isle Operation Frequency Stability>Load Balancing 20ms
Grid-connected operation Power quality>Economic 15ms
Hybrid Energy Storage SOC Equalization>Harmonic Suppression 30ms
2.Interface and communication protocol
Physical interface
Analog input:
12-channel isolated voltage/current input(±10V/0～20mA)
Digital output:
4-channel relay dry contact(with 500VAC withstand voltage)
Network communication
Industrial Ethernet:
EtherNet/IP+Modbus TCP dual protocol stack
Wireless extension:
Optional LoRaWAN module(meets IEC 62056 smart meter communication standard)
Product Overview:PPM DG 500005124.10
As an important member of the DEIF wind power and ship power control product line,PPM DG 500005124.10 is designed with multi-protocol compatible design through high-precision power adjustment,providing a full-life cycle power management solution for off-grid power stations,hybrid energy storage systems and offshore platforms,supporting full-scene coverage from stand-alone debugging to cluster optimization.
