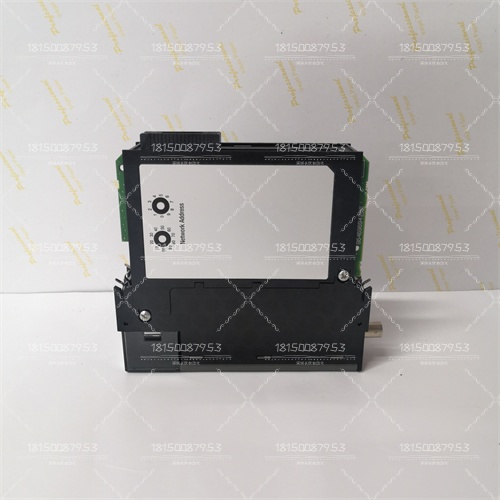

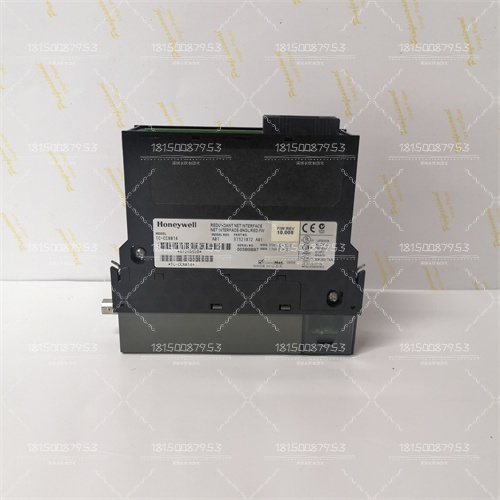

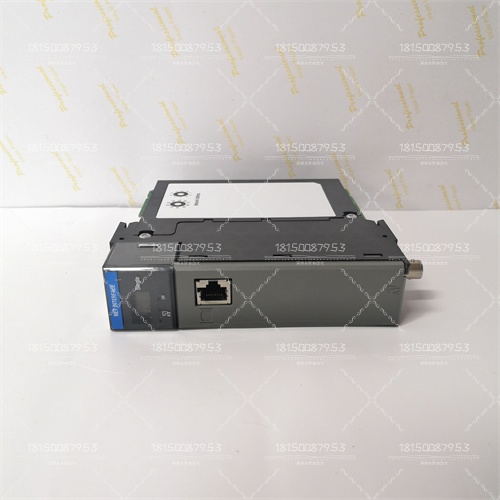

HONEYWELL TC-CCN014产品详情
一、产品概述
Honeywell TC-CCN014是Honeywell Building Technologies推出的一款智能型楼宇自控网络控制器，属于ComfortPoint™系列。该控制器专为商业建筑、工业设施及大型公共建筑的暖通空调（HVAC）系统设计，支持BACnet®MS/TP、BACnet/IP及Modbus RTU/TCP等多种通信协议，可实现设备监控、能源管理、故障诊断等功能。其核心优势在于模块化设计、高扩展性及与Honeywell楼宇管理系统的无缝集成，广泛应用于办公楼、医院、学校、购物中心等场景。
二、核心功能与技术规格
1.硬件架构与扩展性
处理器与内存：
采用32位ARM Cortex-M4处理器，主频120MHz，支持浮点运算，满足复杂控制算法需求。
内置2MB Flash+512KB RAM，可存储10,000+数据点及历史事件记录。
I/O扩展能力：
基础配置：提供8路通用输入（UI）、4路通用输出（UO）、2路模拟输入（AI）、2路模拟输出（AO）。
扩展模块：支持通过EIB总线连接最多16个I/O扩展模块（如TC-IXP01数字输入模块、TC-OXP01模拟输出模块），单控制器最多可扩展至256个I/O点。
2.通信协议与网络集成
标准协议支持：
BACnet®MS/TP：兼容BACnet/SC（BACnet Secure Connect），支持128个设备级联，传输速率9.6~115.2kbps可调。
BACnet/IP：通过RJ45以太网接口（10/100Mbps）实现高速网络通信，支持VLAN划分与QoS优先级设置。
Modbus RTU/TCP：可与第三方设备（如变频器、电表）集成，支持主从模式切换。
网络安全：
内置防火墙，支持IP地址过滤、MAC地址绑定，防止未授权访问。
符合IEC 62443-3-3工业网络安全标准，可选配AES-128加密通信。
HONEYWELL TC-CCN014 Product Details
I.Product Overview
Honeywell TC-CCN014 is an intelligent building automation network controller launched by Honeywell Building Technologies,belonging to the ComfortPoint™series.The controller is designed for heating,ventilation and air conditioning(HVAC)systems in commercial buildings,industrial facilities and large public buildings.It supports multiple communication protocols such as BACnet®MS/TP,BACnet/IP and Modbus RTU/TCP,and can realize equipment monitoring,energy management,fault diagnosis and other functions.Its core advantages lie in modular design,high scalability and seamless integration with Honeywell building management systems.It is widely used in office buildings,hospitals,schools,shopping malls and other scenarios.
II.Core functions and technical specifications
1.Hardware architecture and scalability
Processor and memory:
Adopts 32-bit ARM Cortex-M4 processor with a main frequency of 120MHz,supports floating-point operations,and meets the needs of complex control algorithms.
Built-in 2MB Flash+512KB RAM,can store 10,000+data points and historical event records.
I/O expansion capability:
Basic configuration:provides 8 universal inputs(UI),4 universal outputs(UO),2 analog inputs(AI),2 analog outputs(AO).
Expansion module:supports connecting up to 16 I/O expansion modules(such as TC-IXP01 digital input module,TC-OXP01 analog output module)through EIB bus,and a single controller can be expanded to up to 256 I/O points.
2.Communication protocol and network integration
Standard protocol support:
BACnet®MS/TP:compatible with BACnet/SC(BACnet Secure Connect),supports 128 device cascades,and the transmission rate is adjustable from 9.6 to 115.2kbps.
BACnet/IP:High-speed network communication through RJ45 Ethernet interface(10/100Mbps),supporting VLAN division and QoS priority setting.
Modbus RTU/TCP:Can be integrated with third-party devices(such as inverters,electricity meters),supporting master-slave mode switching.
Network security:
Built-in firewall,support IP address filtering,MAC address binding,to prevent unauthorized access.
Complies with IEC 62443-3-3 industrial network security standard,optional AES-128 encrypted communication.
