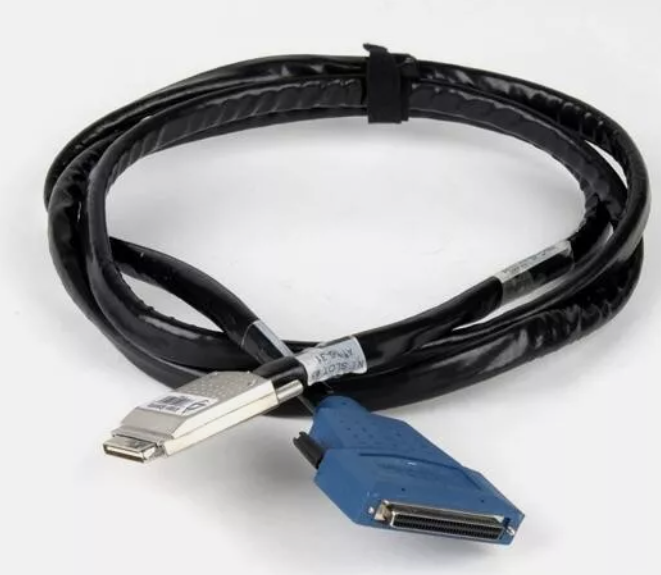

NI 192061B-02技术数据解析
一、核心功能与定位
产品类型
屏蔽电缆：专为工业自动化设计，兼容NI X系列和M系列数据采集（DAQ）设备。
用途：连接M系列设备与标准68针附件，支持高速数据传输与抗干扰设计。
物理结构
连接器类型：
输入端：68针0.050系列D型连接器（兼容M系列设备）。
输出端：68针VHDCI连接器（兼容标准68针附件）。
长度选项：0.5米、1米、2米、5米、10米。
二、电气特性
屏蔽设计
独立屏蔽层：
模拟输入通道采用单独屏蔽双绞线，降低串扰干扰。
模拟输出通道独立屏蔽，确保信号完整性。
数字I/O：关键数字I/O使用双绞线，提升抗干扰能力。
兼容性
协议支持：兼容RoHS指令，符合工业环境环保标准。
设备兼容性：适用于NI X系列（如PXIe-6363）、M系列（如NI-6259）等DAQ设备。
三、性能优势
抗干扰能力
通过独立屏蔽结构和双绞线设计，显著降低高频噪声和电磁干扰。
高速传输
支持M系列设备的高采样率需求（如1 MS/s以上），适用于实时控制与高速数据采集。
四、应用场景
工业自动化
传感器信号传输（温度、压力、振动等）。
电机控制系统的反馈信号连接。
测试测量
高精度实验室设备的信号采集与分析。
NI 192061B-02 Technical data analysis
1.Core functions and positioning
Product Type
Shielded cable:designed for industrial automation and compatible with NI X-Series and M-Series Data Acquisition(DAQ)devices.
Purpose:Connect M series equipment with standard 68-pin accessories,supporting high-speed data transmission and anti-interference design.
Physical structure
Connector type:
Input:68-pin 0.050 Series D-type connector(compatible with M-series equipment).
Output:68-pin VHDCI connector(compatible with standard 68-pin accessories).
Length options:0.5 meters,1 meter,2 meters,5 meters,10 meters.
2.Electrical characteristics
Shielding design
Independent shielding:
The analog input channel uses a separate shielded twisted pair cable to reduce crosstalk interference.
The analog output channel is independently shielded to ensure signal integrity.
Digital I/O:Key digital I/O uses twisted pair cables to improve anti-interference ability.
compatibility
Agreement support:Compatible with RoHS directives and complies with industrial environmental protection standards.
Equipment compatibility:Suitable for NI X series(such as PXIe-6363),M series(such as NI-6259)and other DAQ equipment.
3.Performance advantages
Anti-interference capability
High-frequency noise and electromagnetic interference are significantly reduced through independent shielding structure and twisted pair design.
High-speed transmission
It supports the high sampling rate requirements of M series equipment(such as 1 MS/s or above),and is suitable for real-time control and high-speed data acquisition.
IV.Application scenarios
Industrial automation
Sensor signal transmission(temperature,pressure,vibration,etc.).
Feedback signal connection of the motor control system.
Test measurement
Signal acquisition and analysis of high-precision laboratory equipment.
