描述
产品简要说明

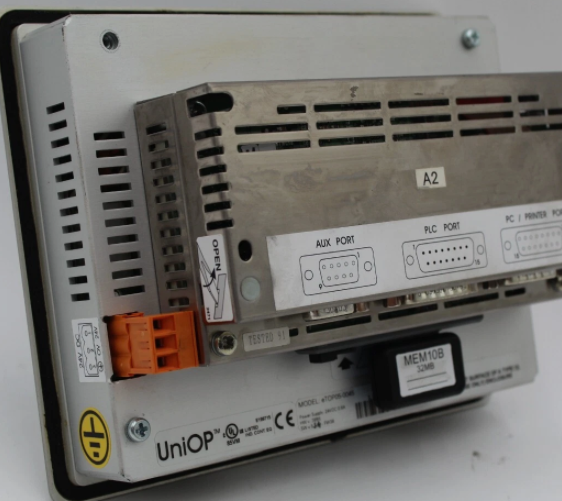

UNIOP eTOP05-0045是一款面向工业控制场景的经济型单色触摸屏人机界面（HMI），采用5.7英寸电阻式触摸屏与白光LED背光，支持IP65防护等级。其核心优势包括：
低成本高可靠性：32MB用户内存，适配中小型设备控制需求
多协议兼容性：支持Profibus DP、CANopen、DeviceNet等工业总线及以太网通信
恶劣环境适应：宽温设计（-20℃至+70℃）与防尘防水结构
产品详细说明
1.硬件架构设计
显示与交互：
屏幕特性：5.7英寸单色TFT显示屏，1/4 VGA分辨率（320×240像素），白光LED背光
触摸技术：电阻式触摸屏，支持多点触控操作
接口扩展：
通信模块：可选配Profibus DP、CANopen、DeviceNet等总线模块及以太网模块
电源输入：24V DC宽电压（18-30V DC），最大电流消耗0.6A
2.软件与编程能力
开发工具：
UniOP Designer 6：支持图形化编程与脚本编辑，提供130+工业设备通信驱动
多语言支持：Unicode格式文本导出，支持无限语言配置（受限于内存）
功能特性：
数据可视化：动态显示数值、文本、柱状图及模拟仪表
报警管理：支持1024级报警记录与历史事件查询
配方存储：通过以太网实现配方数据远程传输与备份
3.环境适应性
防护等级：IP65（前面板），防尘防水
工作条件：
温度：0-50℃（工作），-20-70℃（存储）
湿度：5-85%RH（非冷凝）
抗干扰设计：工业级电磁兼容（EMC）认证，适应复杂电磁环境
技术规格:UNIOP eTOP05-0045
参数项规格描述
显示屏5.7英寸单色TFT，1/4 VGA（320×240像素）
触摸类型电阻式
通信接口可选Profibus DP、CANopen、DeviceNet、以太网模块
用户内存32 MB
防护等级IP65
电源输入24V DC（18-30V DC）
工作温度0℃至50℃
Product brief description
UNIOP eTOP05-0045 is an economical monochrome touch screen human-machine interface(HMI)for industrial control scenarios.It uses a 5.7-inch resistive touch screen and white LED backlight,and supports IP65 protection level.Its core advantages include:
Low cost and high reliability:32MB user memory,adapted to control needs of small and medium-sized equipment
Multi-protocol compatibility:Supports industrial buses such as Profibus DP,CANopen,DeviceNet and other industrial buses and Ethernet communications
Harsh environment adaptation:wide temperature design(-20℃to+70℃)and dust-proof and waterproof structure
Product details
1.Hardware architecture design
Display and interact:
Screen features:5.7-inch monochrome TFT display,1/4 VGA resolution(320×240 pixels),white LED backlight
Touch technology:resistive touch screen,supports multi-touch operation
Interface extension:
Communication module:optional bus modules such as Profibus DP,CANopen,DeviceNet and other bus modules and Ethernet modules
Power input:24V DC wide voltage(18-30V DC),maximum current consumption 0.6A
2.Software and programming capabilities
Development Tools:
UniOP Designer 6:Supports graphical programming and script editing,and provides 130+industrial equipment communication drivers
Multilingual support:Unicode format text export,support unlimited language configuration(memory limited)
Functional Features:
Data visualization:dynamically display numerical values,text,bar charts and analog instruments
Alarm management:Supports level 1024 alarm records and historical event query
Recipe storage:Remote transmission and backup of recipe data through Ethernet
3.Environmental adaptability
Protection level:IP65(front panel),dust-proof and water-proof
Working conditions:
Temperature:0-50℃(working),-20-70℃(storage)
Humidity:5-85%RH(non-condensing)
Anti-interference design:Industrial-grade electromagnetic compatibility(EMC)certification,adapting to complex electromagnetic environments
Technical specifications:UNIOP eTOP05-0045
Parameters Specification Description
Display 5.7-inch monochrome TFT,1/4 VGA(320×240 pixels)
Touch type Resistive type
Communication interface Optional Profibus DP,CANopen,DeviceNet,Ethernet module
User memory 32 MB
Protection level IP65
Power input 24V DC(18-30V DC)
Operating temperature 0℃to 50℃
