描述
产品简要说明

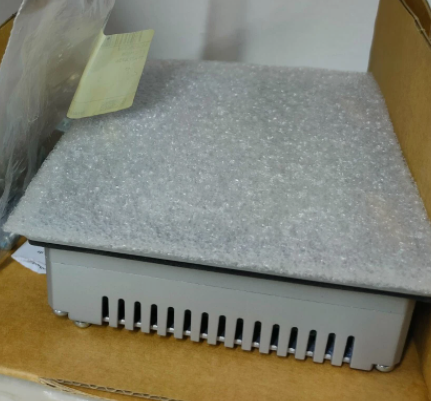

UNIOP eTOP307-U301是一款高性能工业人机界面（HMI），采用7英寸宽屏TFT显示屏与电阻式触摸屏设计，支持以太网、USB及串口通信。其核心优势包括：
高分辨率显示：800×480像素WVGA分辨率，64K色全矢量图形
多协议兼容性：支持Profibus、Modbus、DeviceNet等工业总线及以太网协议
严苛环境适应：IP65防护等级，工作温度-10℃至60℃
产品详细说明
1.硬件架构设计
显示与交互：
屏幕特性：7英寸宽屏TFT显示屏（16:9比例），800×480像素分辨率，LED背光
触摸技术：电阻式单点触控，支持戴手套操作，响应时间≤15ms
接口扩展：
网络通信：10/100M以太网接口，支持远程编程与数据传输
外设连接：USB 2.0主机端口、RS-232/485/422可配置串口
电源输入：24V DC宽电压（18-30V DC），最大电流0.8A
2.软件与编程能力
UniOP Designer 6：
图形化开发：支持TrueType字体、动态对象控制及矢量图形渲染
多语言支持：Unicode文本导出，支持无限语言配置（受限于内存）
通信驱动：
协议兼容性：覆盖西门子、三菱、欧姆龙等主流PLC，支持150+工业协议
远程管理：通过以太网实现固件升级与配置同步
3.环境适应性
防护设计：
IP65防护：前面板防尘防水，适应工业现场环境
抗干扰能力：通过CE、RoHS认证，符合EN 61000-6-4电磁兼容标准
极端温度适应：
工作温度：-10℃至60℃
存储温度：-20℃至70℃
技术规格:UNIOP eTOP307-U301
参数项规格描述
显示屏7英寸宽屏TFT（16:9），800×480像素，64K色
触摸类型电阻式
用户内存64 MB
通信接口10/100M以太网、USB 2.0、RS-232/485/422
防护等级IP65（前面板）
电源输入24V DC（18-30V DC）
工作温度-10℃至60℃
Product brief description
UNIOP eTOP307-U301 is a high-performance industrial human-machine interface(HMI)that uses a 7-inch wide-screen TFT display and resistive touch screen design,supporting Ethernet,USB and serial communication.Its core advantages include:
High resolution display:800×480 pixel WVGA resolution,64K color full vector graphics
Multi-protocol compatibility:Supports industrial buses such as Profibus,Modbus,DeviceNet and other industrial buses and Ethernet protocols
Strict environmental adaptation:IP65 protection level,working temperature-10℃to 60℃
Product details
1.Hardware architecture design
Display and interact:
Screen features:7-inch wide-screen TFT display(16:9 ratio),800×480 pixel resolution,LED backlight
Touch technology:resistive single-point touch,supports glove-wearing operation,response time≤15ms
Interface extension:
Network communication:10/100M Ethernet interface,supports remote programming and data transmission
Peripheral connection:USB 2.0 host port,RS-232/485/422 configurable serial port
Power input:24V DC wide voltage(18-30V DC),maximum current 0.8A
2.Software and programming capabilities
UniOP Designer 6:
Graphical development:Support TrueType font,dynamic object control and vector graphics rendering
Multilingual support:Unicode text export,support unlimited language configuration(memory limited)
Communication driver:
Agreement compatibility:Covering mainstream PLCs such as Siemens,Mitsubishi,Omron,etc.,supporting 150+industrial protocols
Remote management:Synchronize firmware upgrade and configuration via Ethernet
3.Environmental adaptability
Protection design:
IP65 protection:the front panel is dust-proof and water-proof,adapting to industrial site environment
Anti-interference ability:passed CE and RoHS certification,comply with EN 61000-6-4 electromagnetic compatibility standard
Extreme temperature adaptation:
Operating temperature:-10℃to 60℃
Storage temperature:-20℃to 70℃
Technical Specifications:UNIOP eTOP307-U301
Parameters Specification Description
Display 7-inch widescreen TFT(16:9),800×480 pixels,64K color
Touch type Resistive type
User memory 64 MB
Communication interface 10/100M Ethernet,USB 2.0,RS-232/485/422
Protection level IP65(front panel)
Power input 24V DC(18-30V DC)
Operating temperature-10℃to 60℃
