描述
产品简要说明

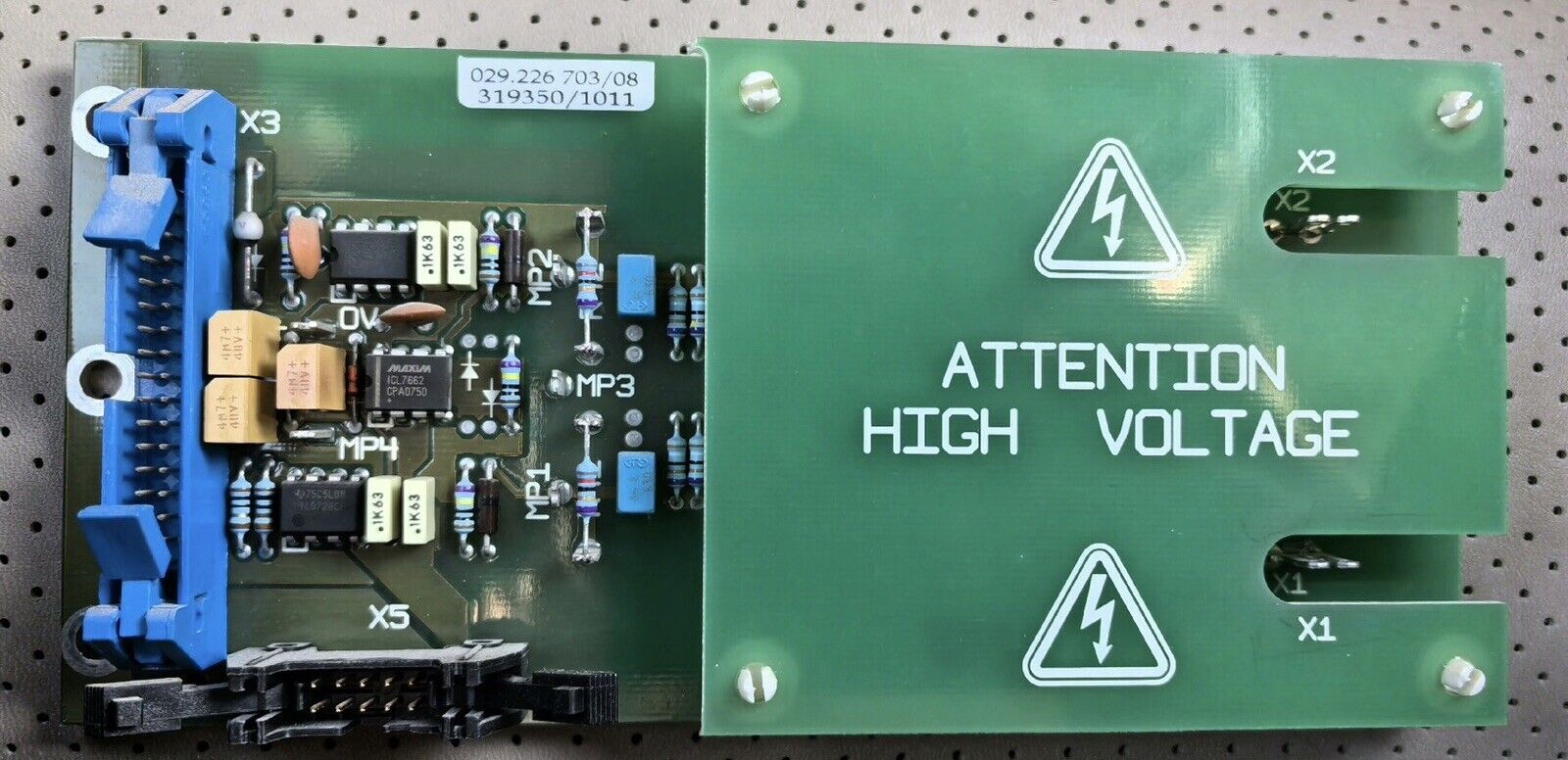

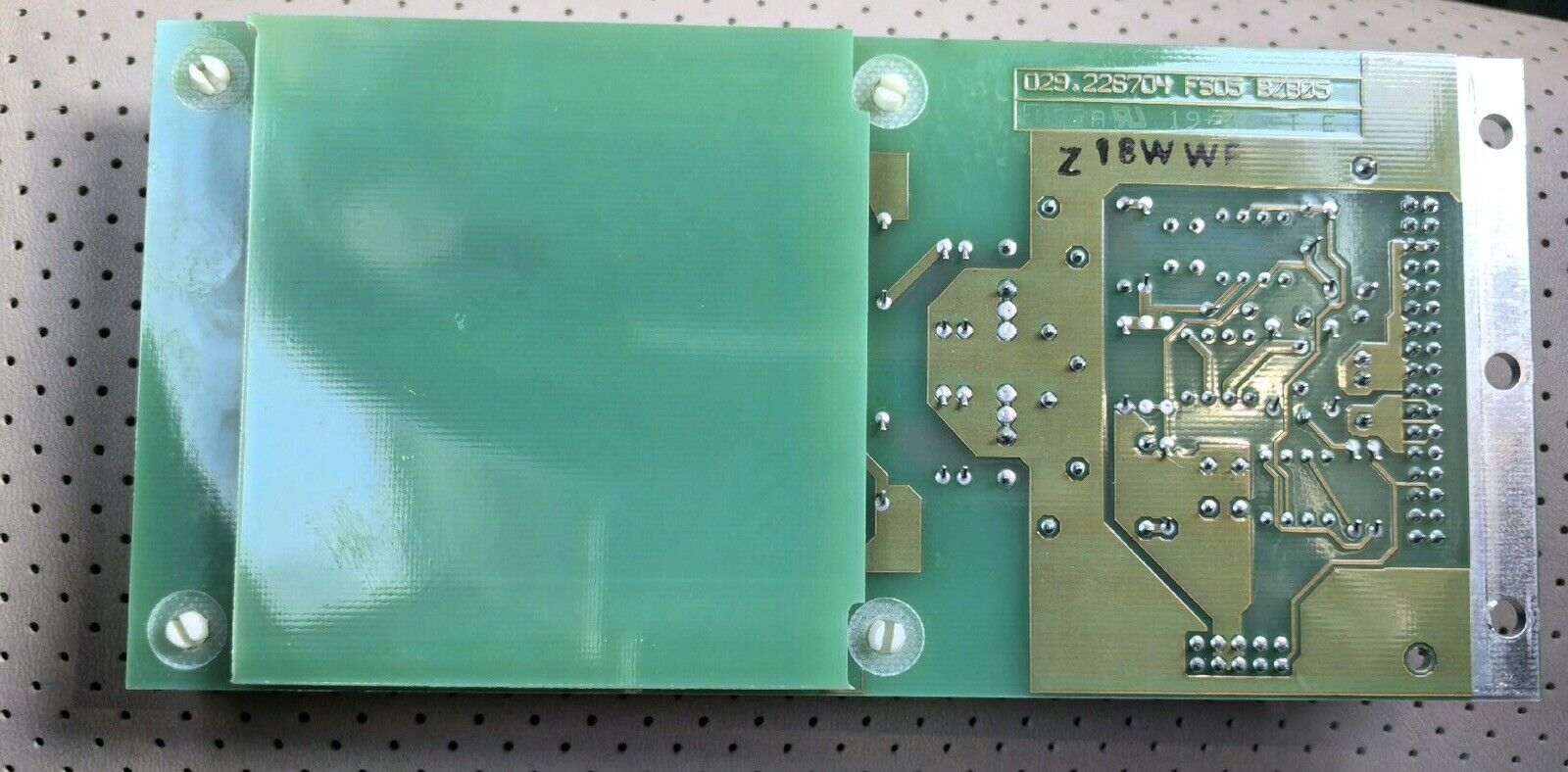

ALSTOM 08 319350 029.226704是一款高可靠性工业通信控制器，核心功能包括：
冗余架构：双CPU热备份设计，故障切换时间≤5ms
安全等级：符合IEC 61508 SIL3标准，支持紧急制动与联锁控制
协议兼容：EtherCAT、Profinet、POWERLINK Safety等工业协议
环境适应：IP67防护等级，工作温度-40℃至70℃
产品详细说明
1.硬件架构与冗余设计
双CPU同步运行：
主备CPU实时数据同步，故障切换时间≤5ms（符合SIL3标准）
支持32节点冗余组网，扩展性强
电源管理：
双冗余24V/48V DC输入，支持热插拔
自动切换机制，确保持续供电
2.通信与安全协议
工业协议支持：
实时总线：EtherCAT（传输延迟≤0.5ms）
安全协议：POWERLINK Safety（符合SIL3安全数据传输）
传统协议：Profinet IO、Modbus TCP
网络拓扑：
环形冗余组网，支持介质与数据线双重冗余
光纤接口可选，抗电磁干扰能力增强
3.工业级安全与诊断
安全逻辑：
内置分散式安全设计，支持紧急制动与联锁控制
安全事件记录与自解释故障代码
智能诊断：
实时监控CPU负载、内存占用及I/O通道状态
分级报警机制（邮件/SMS通知）
技术规格:ALSTOM 08 319350 029.226704
参数项规格描述
处理器双核ARM Cortex-R5（主频200MHz）
存储128MB DDR3+32MB Flash（支持固件OTA升级）
通信接口4×EtherCAT端口、2×Profinet、1×光纤接口
防护等级IP67（防尘防水）
安全认证IEC 61508 SIL3
工作温度-40℃至70℃
电源输入24V/48V DC（双冗余输入）
Product brief description
ALSTOM 08 319350 029.226704 is a high-reliability industrial communication controller with core functions including:
Redundant architecture:dual CPU hot backup design,failover time≤5ms
Safety level:Comply with IEC 61508 SIL3 standard,supporting emergency braking and interlocking control
Protocol compatible:industrial agreements such as EtherCAT,Profinet,POWERLINK Safety
Environmental adaptation:IP67 protection level,working temperature-40℃to 70℃
Product details
1.Hardware architecture and redundant design
Dual CPUs run synchronously:
Real-time data synchronization of the main and backup CPU,failover time≤5ms(compliant with SIL3 standard)
Supports redundant networking of 32 nodes,strong scalability
Power Management:
Dual redundant 24V/48V DC input,support hot plug
Automatic switching mechanism to ensure continuous power supply
2.Communication and Security Protocol
Industrial Agreement Support:
Real-time bus:EtherCAT(transmission delay≤0.5ms)
Security protocol:POWERLINK Safety(SIL3-compliant secure data transmission)
Traditional protocols:Profinet IO,Modbus TCP
Network topology:
Ring redundant networking supports dual redundancy between media and data lines
Optional fiber interface,enhanced anti-electromagnetic interference capability
3.Industrial-grade safety and diagnosis
Security logic:
Built-in distributed safety design,supporting emergency braking and interlocking control
Security event logging and self-interpreting fault code
Intelligent Diagnosis:
Real-time monitoring of CPU load,memory usage and I/O channel status
Graded alarm mechanism(email/SMS notification)
Technical Specifications:ALSTOM 08 319350 029.226704
Parameters Specification Description
Processor Dual-core ARM Cortex-R5(main frequency 200MHz)
Storage 128MB DDR3+32MB Flash(supports firmware OTA upgrade)
Communication interface 4×EtherCAT port,2×Profinet,1×Fiber Optical Interface
Protection level IP67(dust-proof and waterproof)
Safety Certification IEC 61508 SIL3
Operating temperature-40℃to 70℃
Power input 24V/48V DC(dual redundant input)
