描述
产品简要说明

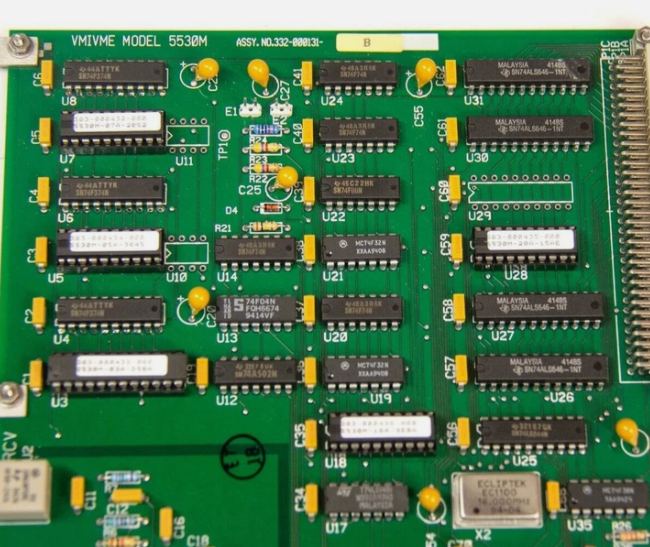

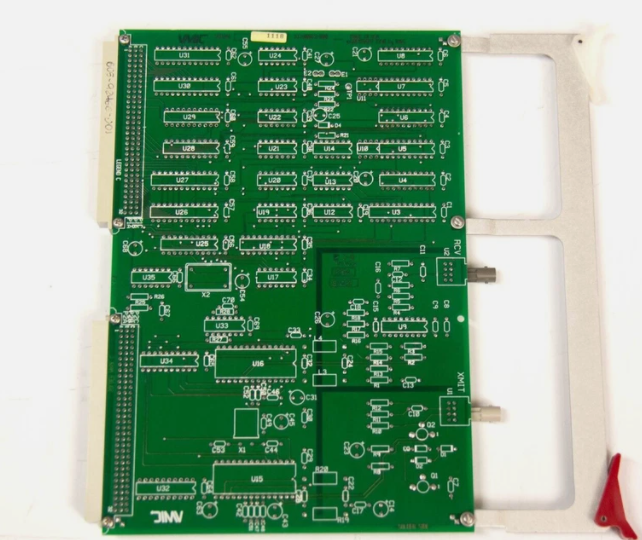

VMIC 5530M 332-000131-000是VMIC公司基于PowerPC架构的高性能VME总线控制器，专为工业自动化、国防军工及能源电力领域的高可靠性系统设计。其核心特性包括：
PowerPC处理器：采用PowerPC 440EP核心，主频667MHz，支持浮点运算加速
VME总线兼容性：符合VITA 31.1规范，支持64位地址空间扩展
多协议接口：集成千兆以太网、CAN总线及串口，支持多总线协议协同工作
工业级环境适应性：-40℃至+85℃宽温工作，抗振动/冲击符合MIL-STD-810标准
产品详细说明
1.硬件架构与核心功能
PowerPC处理器平台
处理器类型：PowerPC 440EP，主频667MHz，支持实时任务调度
内存配置：1GB DDR2 SDRAM（可扩展至4GB）
总线接口：
VME64x总线（支持A16/A24寻址模式）
PCIe x1接口，支持外接存储或通信卡
2路千兆以太网，支持冗余传输
系统扩展能力
模块化设计：通过VME总线实现多控制器协同工作，支持热插拔
板载外设：
4路RS-232/422/485串口
2路CAN总线接口
16通道通用I/O（支持数字量/模拟量配置）
环境适应性
工作温度：-40℃至+85℃（可定制-55℃至+105℃）
电源冗余：支持双5V/3.3V输入，抗瞬态干扰能力达100V/μs
物理加固：无风扇设计，IP67防护等级（需外置机箱）
产品概述:VMIC 5530M 332-000131-000
作为VMIC VME产品线的核心控制器，其核心价值在于高性能与高可靠性：
技术价值：
在轨道交通中，实现列车控制系统的实时数据处理
在航空航天领域，保障飞行器导航系统的冗余计算
行业适配：
工业自动化：分布式控制系统的主控节点
国防军工：导弹制导系统、舰载电子设备
能源电力：智能变电站保护装置、风电场监控系统
测试测量：高精度仪器控制与数据采集
Product brief description
VMIC 5530M 332-000131-000 is a high-performance VME bus controller based on PowerPC architecture of VMIC.It is designed for high-reliability systems in the fields of industrial automation,defense and military industry,and energy and power.Its core features include:
PowerPC processor:adopts PowerPC 440EP core,main frequency 667MHz,supports floating point operation acceleration
VME bus compatibility:Comply with VITA 31.1 specification,supports 64-bit address space expansion
Multi-protocol interface:Integrate Gigabit Ethernet,CAN bus and serial port,and supports multi-bus protocol collaborative work
Industrial grade environmental adaptability:wide temperature operation from-40℃to+85℃,vibration/impact resistance complies with MIL-STD-810 standard
Product details
1.Hardware architecture and core functions
PowerPC Processor Platform
Processor type:PowerPC 440EP,main frequency 667MHz,support real-time task scheduling
Memory configuration:1GB DDR2 SDRAM(scalable to 4GB)
Bus interface:
VME64x bus(supports A16/A24 addressing mode)
PCIe x1 interface,supports external storage or communication card
2-channel Gigabit Ethernet,supports redundant transmission
System expansion capability
Modular design:realizes multi-controller collaborative work through VME bus,and supports hot plugging
Onboard peripherals:
4-channel RS-232/422/485 serial port
2-channel CAN bus interface
16-channel universal I/O(supports digital/analog configuration)
Environmental adaptability
Operating temperature:-40℃to+85℃(customized-55℃to+105℃)
Power supply redundancy:supports dual 5V/3.3V inputs,with anti-transient interference capability up to 100V/μs
Physical reinforcement:fanless design,IP67 protection level(external chassis required)
Product Overview:VMIC 5530M 332-000131-000
As the core controller of the VMIC VME product line,its core value lies in high performance and high reliability:
Technical value:
Real-time data processing of train control system in rail transit
In the field of aerospace,ensure redundant calculation of aircraft navigation systems
Industry adaptation:
Industrial automation:the main control node of distributed control system
National Defense and Military Industry:Missile Guide System,Ship-based Electronic Equipment
Energy and electricity:intelligent substation protection device,wind farm monitoring system
Testing and Measurement:High-precision Instrument Control and Data Acquisition
