描述
产品简要说明

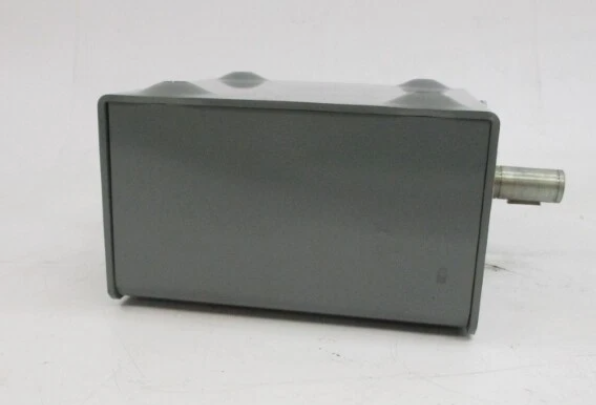

MAGNETEK 1980104LSPX是一款面向工业泵、风机及传送带系统的高效变频驱动器，核心特性包括：
节能优化：支持PAM控制技术，能耗降低20%-35%
多协议兼容：集成RS-485、CANopen通信，支持跨平台集成
宽电压输入：单相/三相100-480V AC，适应复杂电网环境
产品详细说明
1.核心控制技术
节能模式：
动态负载监测：通过电流谐波分析自动调节输出功率
智能休眠功能：空载时进入低功耗状态，待机功耗≤1W
精准控制算法：
矢量控制模式：转矩响应时间≤10ms，转速精度±0.5%
软启软停曲线：支持5段自定义曲线，减少机械冲击
2.硬件设计特性
电源架构：
双电源冗余设计：支持热插拔切换（切换时间≤100ms）
宽电压波动容忍：±10%输入电压波动仍可稳定运行
环境适应性：
防护等级IP65，适应潮湿、多尘环境
工作温度范围-25℃至55℃（可选配-35℃低温套件）
技术规格:MAGNETEK 1980104LSPX
参数项规格描述
输出功率315kW（额定值）
通信接口1×RS-485、1×CANopen、1×EtherCAT
控制输入4个数字输入（DC 24V）、2个模拟输入（0-10V/4-20mA）
输出接口2个继电器输出、1个故障报警输出
防护等级IP65（标准）
核心价值与性能亮点
1.高效节能
案例：在某化工厂离心泵系统中，年节电约35万度，电费节省30%。
2.智能运维
功能：
故障自诊断：支持120+种故障代码定位，支持远程复位
运行日志存储：记录电机温度、电流谐波等参数，支持云端导出
3.行业适配性
优势：
泵类专用：内置防气蚀控制算法，延长叶轮寿命
传送带优化：提供动态负载补偿，减少停机率
Product brief description
MAGNETEK 1980104LSPX is an efficient frequency converter for industrial pumps,fans and conveyor belt systems.The core features include:
Energy saving optimization:Supports PAM control technology,reduces energy consumption by 20%-35%
Multi-protocol compatibility:Integrate RS-485,CANopen communication,supports cross-platform integration
Wide voltage input:single-phase/three-phase 100-480V AC,adapted to complex grid environments
Product details
1.Core control technology
Energy saving mode:
Dynamic load monitoring:Automatically adjust the output power through current harmonic analysis
Intelligent sleep function:Entering a low-power state when no load,standby power consumption≤1W
Precise control algorithm:
Vector control mode:torque response time≤10ms,speed accuracy±0.5%
Soft start and soft stop curve:Supports 5 custom curves to reduce mechanical impact
2.Hardware design features
Power architecture:
Dual power supply redundant design:support hot-swap switching(switching time≤100ms)
Wide voltage fluctuation tolerance:±10%input voltage fluctuation can still operate stably
Environmental adaptability:
Protection level IP65,adapt to humid and dusty environments
Operating temperature range-25℃to 55℃(optional-35℃low temperature kit)
Technical Specifications:MAGNETEK 1980104LSPX
Parameters Specification Description
Output power 315kW(rated value)
Communication interface 1×RS-485,1×CANopen,1×EtherCAT
Control inputs 4 digital inputs(DC 24V),2 analog inputs(0-10V/4-20mA)
Output interface 2 relay outputs,1 fault alarm output
Protection level IP65(standard)
Core Valuesand Performance Highlights
1.High efficiency and energy saving
Case:In the centrifugal pump system of a chemical plant,the annual electricity saving is about 350,000 kWh and the electricity bill is 30%.
2.Intelligent operation and maintenance
Function:
Fault self-diagnosis:Supports 120+types of fault code positioning,supports remote reset
Running log storage:record motor temperature,current harmonics and other parameters,and supports cloud export
3.Industry adaptability
Advantages:
Special for pumps:built-in anti-cavitation control algorithm to extend impeller life
Conveyor Belt Optimization:Provides dynamic load compensation and reduces downtime
