描述
一、核心技术参数

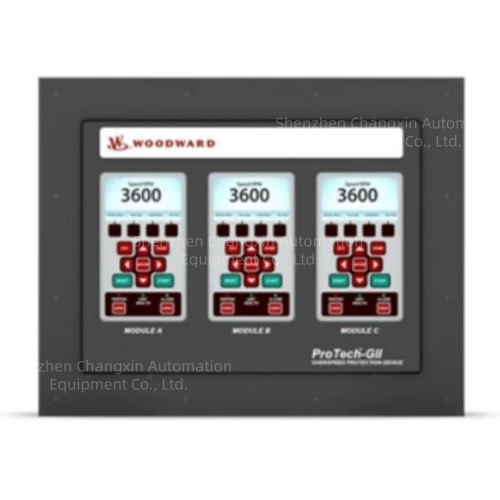

品牌型号：Woodward伍德沃德8237-1369
产品类型：Overspeed Protection Device超速保护装置
适配子接口：3×5437-1119专用接口模块
供电规格：支持双电压输入，高压侧115V AC/240V AC/125V DC，低压侧24V DC±10%
通讯协议：Modbus RTU/TCP
响应时间：≤12毫秒
转速监测范围：0.5–32000 RPM
输入信号：4–20 mA转速读数模拟量信号
输出继电器：3路Form C型继电器，采用2-out-of-3表决逻辑设计
抗振性能：±5g运行稳定性，适配极端振动工业环境
工作环境温度范围：-40℃~+85℃
防护设计：军工级元器件选型，支持共形涂层防护
冗余架构：并行处理架构，支持自动故障切换冗余设计
二、核心功能特性
作为独立安全层接入透平控制系统，实时采集旋转机械转速信号，超速工况下快速输出跳机保护信号，避免机组超速损坏
Modbus RTU/TCP通讯能力可无缝对接上层SCADA或DCS系统，实现远程转速监测与远程诊断功能
内置三重转速采集通道，通过2-out-of-3表决逻辑判断超速工况，避免单点故障导致保护误动或拒动
并行处理双冗余架构，支持自动故障切换，单通道故障时不中断保护功能运行
军工级元器件与共形涂层防护设计，可在高硫、高粉尘、强振动的严苛工业现场长期稳定运行
