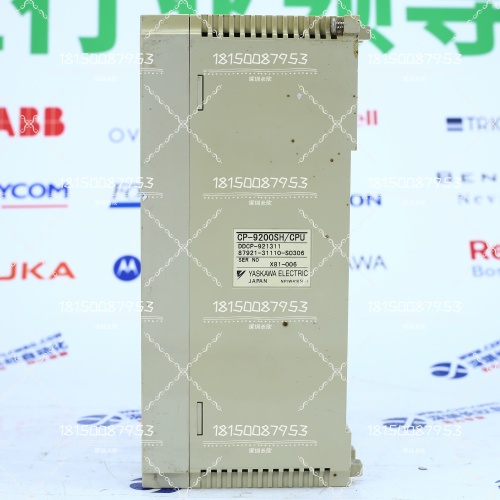

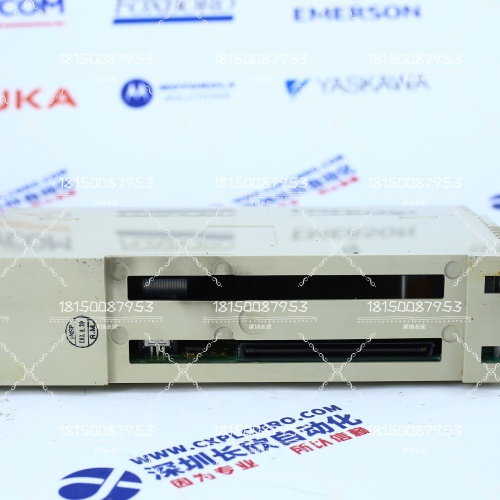

安川CP-9200SHCPU产品详情
CP-9200SHCPU是CP-9200SH机器控制器的“大脑”，负责处理顺序控制（PLC）和高级运动控制。
类型：机器控制器CPU（中央处理器）模块。
系列：CP-9200SH系列。
主要特性和功能：
高性能处理器：配备32位RISC处理器，能够处理高级机器控制所需的复杂控制任务和高速计算。
集成控制：将顺序控制（PLC功能）和运动控制集成在一个集成平台中。这使得逻辑和运动之间能够无缝协调，这对于机器同步操作至关重要。
内存：通常包含16MB闪存和32MB SDRAM，为程序、数据和系统操作提供充足的空间。
丰富的I/O支持：能够管理多达4,096个I/O点，实现全面的机器控制和数据采集。
多种通信接口：提供各种通信端口，用于连接其他设备、系统和网络：
2个以太网端口
1个RS-232C端口
1个RS-422/485端口
支持以太网/IP和Modbus TCP/IP等工业网络通信，并可作为EtherCAT主站，与伺服驱动器和远程I/O进行高速通信。
实时控制：专为实时控制而设计，确保快速响应和确定性操作，这对于精确的工业自动化应用至关重要。
可编程性：用户可以使用安川电机的MotionWorks IEC Pro软件对CP-9200SHCPU进行编程。它支持符合IEC 61131-3标准的编程语言，包括：
梯形图(LD)
功能块图(FBD)
顺序功能图(SFC)
结构化文本(ST)
指令表(IL)
某些高级版本还支持C和C++等高级语言。
模块化设计：CP-9200SH系统采用模块化设计，CP-9200SHCPU是核心模块。基本配置通常包括电源模块、CPU模块和SVA（伺服放大器）模块。系统扩展时，还可以添加其他各种模块。
同步：擅长执行高速、完全同步的多轴运动，非常适合需要协调运动的应用。
诊断和监控：配备LED状态指示灯和螺钉端子，确保连接可靠。它通常与HMI（人机界面）解决方案集成，以实现可视化和监控。
技术规格（典型值）：
尺寸：约130mm x 130mm x 70mm（具体子型号可能略有不同）。
重量：约800克。
电源：CPU模块本身通常为24V DC，但整个系统（包括PS-01、PS-02、PS-03等电源模块）可接受各种交流和直流输入。
工作温度：-10°C至55°C（某些来源指定为0°C至55°C）。
湿度：5%至95%相对湿度，无凝结。
环境注意事项：专为工业环境设计，但需要避免阳光直射、腐蚀性气体、易燃气体以及过度振动或冲击。
Yaskawa CP-9200SHCPU Product Details
The CP-9200SHCPU acts as the”brain”of the CP-9200SH machine controller,handling both sequence(PLC)control and advanced motion control.
Type:CPU(Central Processing Unit)Module for Machine Controller.
Series:CP-9200SH Series.
Key Features and Functions:
High-Performance Processor:Equipped with a 32-bit RISC processor,enabling it to handle complex control tasks and high-speed calculations required for advanced machine control.
Integrated Control:Combines sequence control(PLC functionality)and motion control within a single integrated platform.This allows for seamless coordination between logic and motion,which is crucial for synchronized machine operations.
Memory:Typically includes 16MB of flash memory and 32MB of SDRAM,providing ample space for programs,data,and system operations.
Extensive I/O Support:Capable of managing a significant number of I/O points,up to 4,096 I/O points,allowing for comprehensive machine control and data acquisition.
Multiple Communication Interfaces:Provides various communication ports for connecting to other devices,systems,and networks:
2 Ethernet ports
1 RS-232C port
1 RS-422/485 port
Supports industrial network communications like Ethernet/IP and Modbus TCP/IP,and can act as an EtherCAT master for high-speed communication with servo drives and remote I/O.
Real-time Control:Designed for real-time control,ensuring rapid response and deterministic operation,which is essential for precise industrial automation applications.
Programmability:Users can program the CP-9200SHCPU using Yaskawa’s MotionWorks IEC Pro software.It supports IEC 61131-3 compliant programming languages,including:
Ladder Diagram(LD)
Function Block Diagram(FBD)
Sequential Function Chart(SFC)
Structured Text(ST)
Instruction List(IL)
Some advanced versions may also support higher-level languages like C and C++.
Modular Design:The CP-9200SH system has a modular design,with the CP-9200SHCPU being a core module.The basic configuration typically includes a power module,the CPU module,and SVA(Servo Amplifier)modules.Various other modules can be added for system expansion.
Synchronization:Excels at performing high-speed,completely synchronized operations across multiple axes,making it suitable for applications requiring coordinated motion.
Diagnostics and Monitoring:Features LED indicators for status and screw terminals for reliable connections.It’s often integrated with HMI(Human Machine Interface)solutions for visualization and monitoring.
Technical Specifications(Typical):
Dimensions:Approximately 130mm x 130mm x 70mm(though this can vary slightly by specific sub-variant).
Weight:Around 800g.
Power Supply:Typically 24V DC for the CPU module itself,though the overall system(including power modules like PS-01,PS-02,PS-03)can accept various AC and DC inputs.
Operating Temperature:-10°C to 55°C(some sources specify 0 to 55°C).
Humidity:5%to 95%relative humidity,non-condensing.
Environmental Considerations:Designed for industrial environments,but needs protection from direct sunlight,corrosive gases,flammable gases,and excessive vibration or shock.
