Bently Nevada 330103-10-20-05-02-CN产品详情解析。该型号属于3300 XL系列电涡流位移传感器系统的定制化版本（后缀“-CN”通常表示中国区域定制或合规配置），专为超大位移监测和长距离信号传输设计，适用于大型汽轮机、发电机、长轴系设备等工业场景。以下是详细信息：
一、产品概述
型号：330103-10-20-05-02-CN
品牌：Bently Nevada（贝克休斯旗下，工业状态监测领域领导者）
系列：3300 XL系列（高性能电涡流传感器系统）
核心功能：
非接触式测量转子与探头端面的动态间隙，实时监测振动、轴向位移、胀差、偏心等关键参数。
兼容Bently Nevada 3300/3500/4000系列监测系统及System 1软件，支持预测性维护与故障诊断。
适用于高温、高振动、强电磁干扰等严苛工业环境（如汽轮机、发电机、压缩机、齿轮箱等）。
定制化标识：
后缀“-CN”可能表示：
符合中国国家标准（如GB/T）或行业规范（如电力、石化领域）。
包含中文说明书、标签或本地化技术支持。
针对中国市场的特殊配置（如防爆认证、电压适配等）。
二、型号分解与配置说明
Bently Nevada的型号编码规则通常包含关键参数信息。以330103-10-20-05-02-CN为例：
字段含义取值（本型号）说明
330103基础型号330103表示3300 XL系列电涡流传感器套件，标准配置包含探头、延伸电缆、前置器。
10探头类型10标准型探头（非高温、非特殊材质），适用于常规工业环境。
20探头量程20mm测量范围0.25mm至20mm，适用于超大位移监测场景（如大型汽轮机胀差）。
05延伸电缆长度5米（约16.4英尺）长距离信号传输，适用于分散式设备或前置器远离安装场景。
02前置器类型02标准型前置器（非防爆、非特殊功能），支持模拟/数字信号输出。
CN区域定制标识CN中国区域定制（可能包含合规认证、中文文档等）。
三、系统组成与核心组件
330103-10-20-05-02-CN为完整传感器套件，包含以下组件：

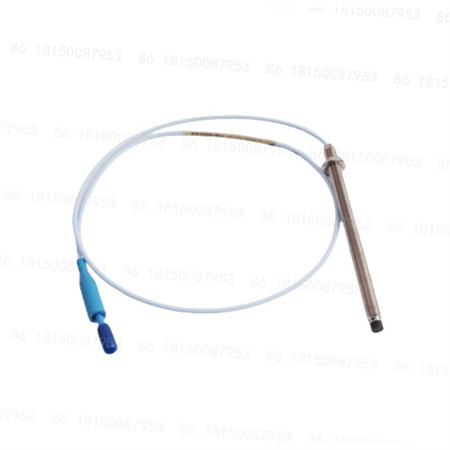

1.探头（Proximity Probe）
型号：3300 XL 20mm探头。
功能：
非接触式测量转子与探头端面的动态间隙，反映设备振动、位移等状态。
关键特性：
超大范围高精度测量：
量程：0.25mm至20mm，覆盖大型设备热膨胀、机械松动等极端位移场景。
分辨率：≤0.1μm（典型值），满足精密监测需求。
线性度：≤±1%全量程，确保数据准确性。
耐温设计：
标准型号：-35℃至+175℃（探头头部），适用于大多数工业环境。
Bently Nevada 330103-10-20-05-02-CN Product Details.This model is a customized version of the 3300 XL Series eddy-current displacement sensor system(the suffix”-CN”generally indicates customization or compliance for China).Designed for ultra-large displacement monitoring and long-distance signal transmission,it is suitable for industrial applications such as large steam turbines,generators,and long-shafted equipment.The following are the details:
I.Product Overview
Model:330103-10-20-05-02-CN
Brand:Bently Nevada(a Baker Hughes company,a leader in industrial condition monitoring)
Series:3300 XL Series(High-Performance Eddy-Current Sensor System)
Core Function:
Non-contact measurement of the dynamic clearance between the rotor and the probe tip,providing real-time monitoring of key parameters such as vibration,axial displacement,differential expansion,and eccentricity.Compatible with the Bently Nevada 3300/3500/4000 series monitoring systems and System 1 software,supporting predictive maintenance and fault diagnostics.
Suitable for harsh industrial environments(such as steam turbines,generators,compressors,and gearboxes)subject to high temperatures,high vibration,and strong electromagnetic interference.
Customized Labeling:
The suffix”-CN”may indicate:
Compliance with Chinese national standards(such as GB/T)or industry specifications(such as those in the power and petrochemical sectors).
Includes Chinese manuals,labels,or localized technical support.
Special configurations for the Chinese market(such as explosion-proof certification and voltage adaptation).
II.Model Decomposition and Configuration Instructions
Bently Nevada model coding typically includes key parameter information.Taking 330103-10-20-05-02-CN as an example:
Field Meaning Value(This Model)Description
330103 Basic Model 330103 represents the 3300 XL Series Eddy Current Sensor Kit.The standard configuration includes the probe,extension cable,and preamplifier.
10 Probe Type 10 Standard probe(non-high-temperature,non-special material),suitable for general industrial environments.
20 Probe Range 20mm Measurement range 0.25mm to 20mm,suitable for monitoring ultra-large displacements(such as differential expansion in large steam turbines).
05 Extension Cable Length 5 meters(approximately 16.4 feet)Long-distance signal transmission,suitable for distributed equipment or when the preamplifier is remotely installed.
02 Preamplifier Type 02 Standard preamplifier(non-explosion-proof,non-special function),supports analog/digital signal output.
CN Regional Customization Logo.CN is customized for the China region(may include compliance certifications,Chinese documentation,etc.).
III.System Composition and Core Components
The 330103-10-20-05-02-CN is a complete sensor kit,including the following components:
1.Proximity Probe
Model:3300 XL 20mm Probe.
Function:
Non-contact measurement of the dynamic clearance between the rotor and the probe tip,reflecting equipment vibration,displacement,and other conditions.
Key Features:
Ultra-Wide Range,High-Precision Measurement:
Measuring range:0.25mm to 20mm,covering extreme displacement scenarios such as thermal expansion and mechanical loosening of large equipment.
Resolution:≤0.1μm(typical),meeting precision monitoring needs.
Linearity:≤±1%of full scale,ensuring data accuracy.
Temperature-Resistant Design:
Standard model:-35°C to+175°C(probe head),suitable for most industrial environments.
