描述

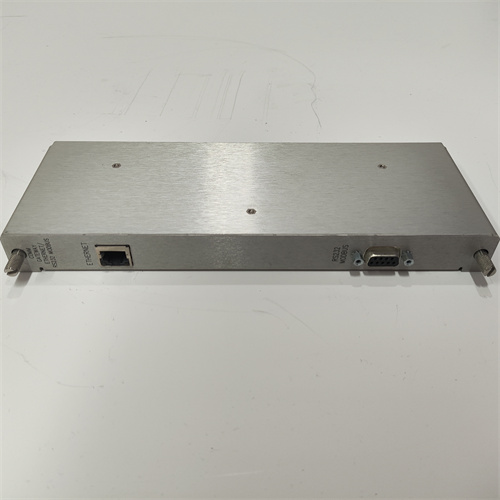

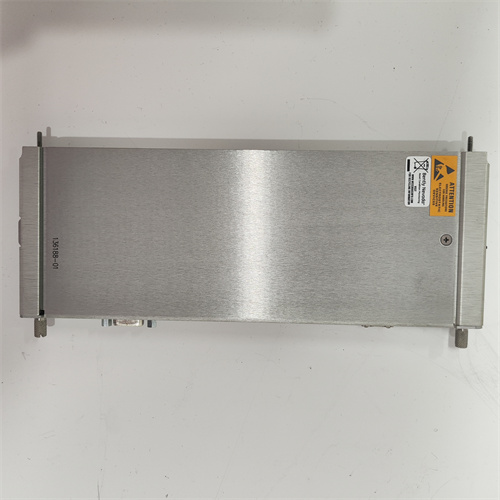

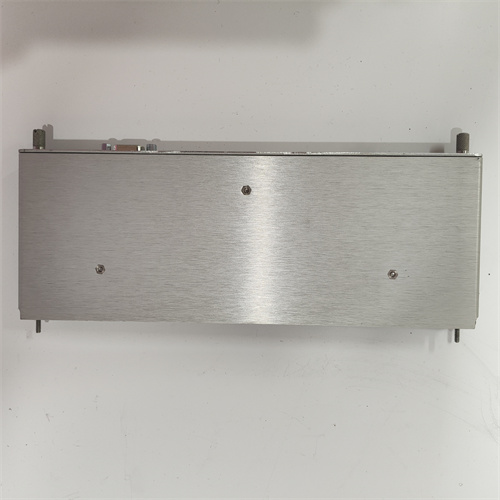

Bently Nevada 3500-92 136188-01是Bently Nevada公司3500系列机械保护与状态监测系统中的通信网关模块，以下为其产品详情：
一、核心功能
通信能力
协议支持：支持Modicon Modbus协议（通过串口通信）、Modbus/TCP协议（串口Modbus应用的TCP/IP以太网通信变种）以及专有的Bently Nevada通信协议，用于与3500框架配置软件进行以太网通信和数据采集。
接口类型：提供以太网TCP/IP和串行（RS232/RS422/RS485）通信接口，可与过程控制和其他自动化系统集成，实现与其他控制系统或设备的数据交互。
数据处理与转换
Modbus寄存器配置：具有可配置的Modbus注册表实用工具，提供与原始3500/90模块相同的功能，通过Modbus寄存器进行通信。用户可根据实际需求对参数进行配置，如设置通讯波特率、数据位、停止位、奇偶校验位等，以适应不同的通讯环境和设备要求。
数据格式转换：对3500系统各监测模块采集到的数据进行处理和转换，将原始数据转换为符合特定协议和格式的数据，方便其他系统读取和理解，还能对数据进行打包、压缩等操作，提高数据传输效率。
系统集成与扩展
系统集成：作为3500系统与外部系统之间的桥梁，使3500系统能够与工厂中的其他自动化系统进行无缝集成，实现信息共享和协同工作，有助于提高整个工厂的自动化水平和生产效率。例如，将机组的运行状态数据传输到DCS系统，以便操作人员在中央控制室对整个生产过程进行统一监控和管理。
扩展性：方便对3500系统进行扩展，可连接更多的监测模块或外部设备，满足不同规模和复杂程度的监测需求。在工厂扩建或设备升级时，通过添加新的监测模块并利用3500-92 136188-01通信网关模块，可将新模块的数据纳入到现有的监测系统中。
二、技术特性
电气参数
最大开关电压：125 Vdc。
最小开关电流：100 mA 12 Vdc。
网络与连接
以太网连接：采用10BASE-T星形配置，使用RJ45连接器，支持快速数据交换，符合IEEE 802.3标准，支持10Mbps速率。
串行通讯接口：支持RS-232、RS-422和RS-485等标准。
电源消耗：典型功耗为5.0瓦（Modbus RS232/RS422 I/O模块）或5.6瓦（带Modbus RS485 I/O模块）。
环境适应性
工作温度：范围为-30℃至65℃。
防护等级：设计用于在各种工业环境中工作，支持双电源供应槽和NEMA 4X防水外壳，适合环保或净化空气用的场合。
安全与配置
系统配置保护：系统配置受到软件密码保护，防止未经授权的更改或篡改配置，确保系统的安全性。
模块化设计：作为3500框架系统的一部分，模块支持热插拔，便于安装、更换和维护。
三、应用领域
工业自动化
设备监测：用于对汽轮机、压缩机、风机、水泵、磨煤机、齿轮箱、电机等大中型旋转机械的振动监测，广泛应用于钢铁、电力、冶金、化工、石化等行业。
数据交互：将3500系统监测到的各种数据，如振动、位移、转速等信息传输到上位机、DCS（分布式控制系统）或PLC（可编程逻辑控制器）等设备中，以便进行进一步的分析、处理和监控。
状态监测与保护
机械保护：与其他Bentley Nevada监测模块一起使用，提供全面的机械保护和状态监测解决方案。
故障预警：通过对设备运行数据的实时监测和分析，提前发现设备潜在故障，及时发出预警，避免设备损坏和生产中断。
Bently Nevada 3500-92 136188-01 is a communication gateway module in Bently Nevada’s 3500 series machinery protection and condition monitoring system.The following are its product details:
I.Core functions
Communication capabilities
Protocol support:Supports Modicon Modbus protocol(via serial port communication),Modbus/TCP protocol(TCP/IP Ethernet communication variant of serial Modbus application)and proprietary Bently Nevada communication protocol for Ethernet communication and data acquisition with 3500 framework configuration software.
Interface type:Provides Ethernet TCP/IP and serial(RS232/RS422/RS485)communication interfaces,which can be integrated with process control and other automation systems to achieve data interaction with other control systems or devices.
Data processing and conversion
Modbus register configuration:Has a configurable Modbus registry utility,providing the same functions as the original 3500/90 module,communicating through Modbus registers.Users can configure parameters according to actual needs,such as setting communication baud rate,data bit,stop bit,parity bit,etc.,to adapt to different communication environments and equipment requirements.
Data format conversion:Process and convert the data collected by each monitoring module of the 3500 system,convert the original data into data that conforms to a specific protocol and format,which is convenient for other systems to read and understand,and can also package and compress the data to improve data transmission efficiency.
System integration and expansion
System integration:As a bridge between the 3500 system and external systems,the 3500 system can be seamlessly integrated with other automation systems in the factory to achieve information sharing and collaborative work,which helps to improve the automation level and production efficiency of the entire factory.For example,the operating status data of the unit is transmitted to the DCS system so that the operator can uniformly monitor and manage the entire production process in the central control room.
Scalability:It is convenient to expand the 3500 system,and more monitoring modules or external devices can be connected to meet monitoring needs of different scales and complexities.When expanding a plant or upgrading equipment,by adding new monitoring modules and using the 3500-92 136188-01 communication gateway module,the data of the new modules can be incorporated into the existing monitoring system.
2.Technical characteristics
Electrical parameters
Maximum switching voltage:125 Vdc.
Minimum switching current:100 mA 12 Vdc.
Network and connection
Ethernet connection:uses 10BASE-T star configuration,uses RJ45 connector,supports fast data exchange,complies with IEEE 802.3 standard,and supports 10Mbps rate.
Serial communication interface:supports RS-232,RS-422 and RS-485 standards.
Power consumption:Typical power consumption is 5.0 watts(Modbus RS232/RS422 I/O module)or 5.6 watts(with Modbus RS485 I/O module).
Environmental adaptability
Operating temperature:ranges from-30℃to 65℃.
Protection level:Designed to work in various industrial environments,it supports dual power supply slots and NEMA 4X waterproof housing,suitable for environmental protection or air purification applications.
Security and configuration
System configuration protection:The system configuration is protected by a software password to prevent unauthorized changes or tampering with the configuration,ensuring the security of the system.
Modular design:As part of the 3500 framework system,the module supports hot swapping,which is easy to install,replace and maintain.
III.Application areas
Industrial automation
Equipment monitoring:It is used for vibration monitoring of large and medium-sized rotating machinery such as turbines,compressors,fans,pumps,coal mills,gearboxes,motors,etc.,and is widely used in steel,power,metallurgy,chemical,petrochemical and other industries.
Data interaction:The various data monitored by the 3500 system,such as vibration,displacement,speed and other information,are transmitted to the host computer,DCS(distributed control system)or PLC(programmable logic controller)and other equipment for further analysis,processing and monitoring.
Condition monitoring and protection
Mechanical protection:Used with other Bentley Nevada monitoring modules to provide comprehensive mechanical protection and condition monitoring solutions.
Fault warning:Through real-time monitoring and analysis of equipment operation data,potential equipment failures can be discovered in advance and warnings can be issued in time to avoid equipment damage and production interruptions.
