描述
才1.产品定位与核心功能

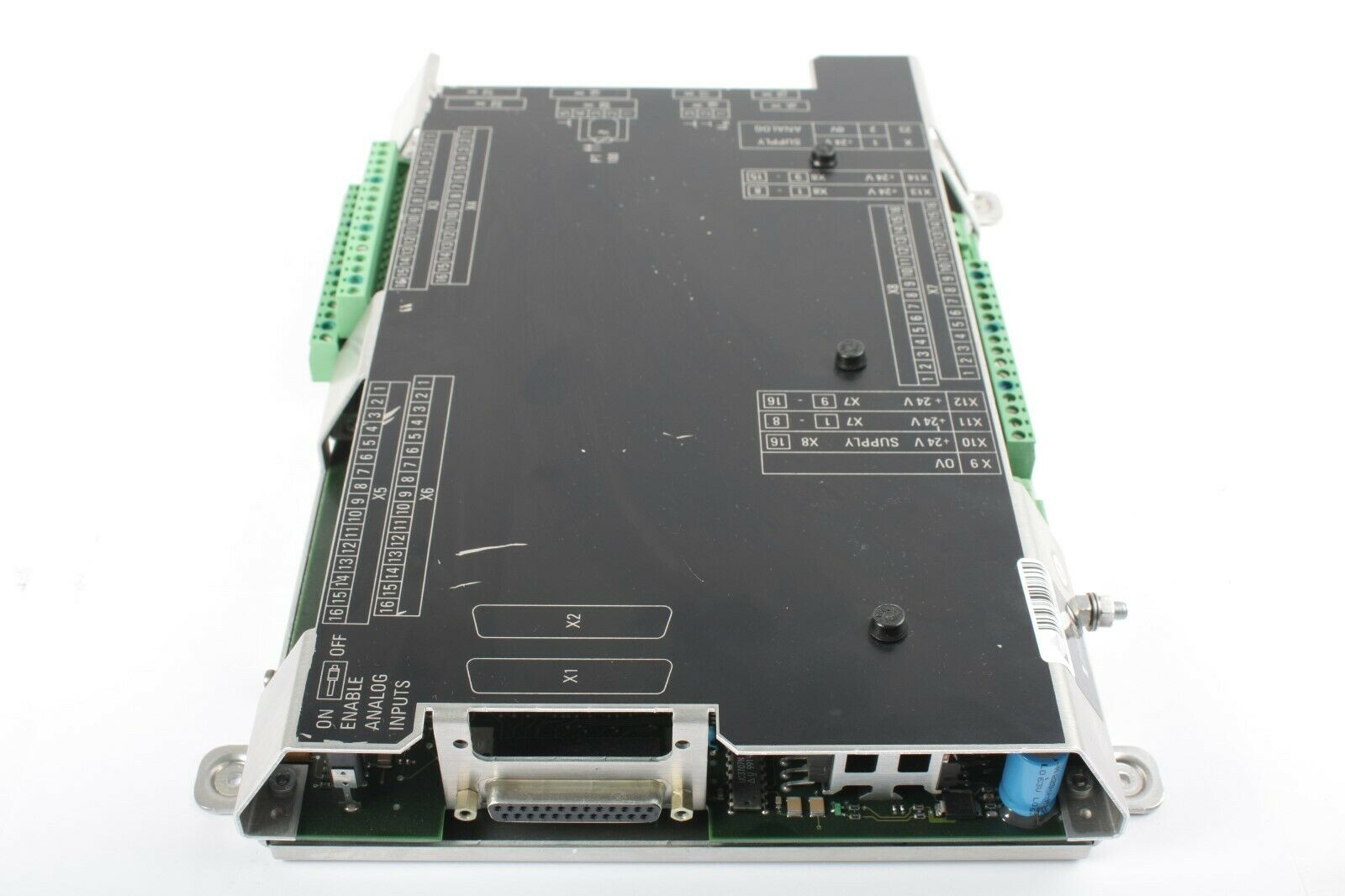

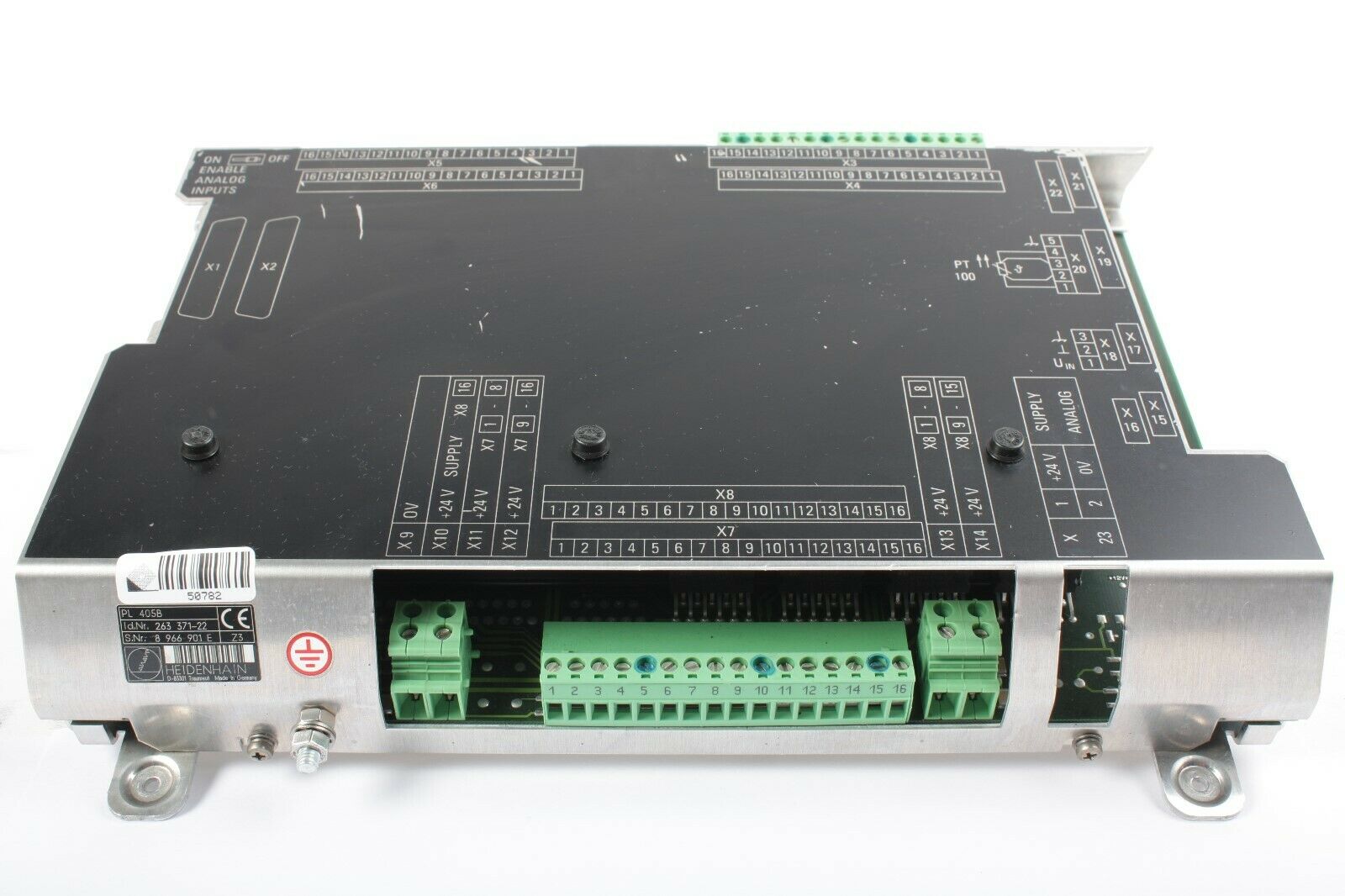

371-22-801706推测为工业级信号调理模块，属于多通道模拟信号处理单元，主要用于传感器信号放大、滤波与隔离转换，适配智能制造中的振动监测、压力测量及闭环控制系统，支持高噪声环境下的稳定信号传输。
2.关键技术参数推断
信号处理能力：
-输入类型：差分/单端可切换（兼容应变片、压电传感器）；
-增益范围：1×至1000×（程控调节）；
-带宽：DC至10 kHz（支持低频振动信号采集）。
隔离与保护：
-通道间隔离度：≥150 dB（抑制共模干扰）；
-过压保护：±50 V（输入/输出端口）。
环境适应性：
-防护等级：IP40（防尘，适配工业控制柜）；
-工作温度：-40°C至+85°C（宽温设计）。
3.典型应用场景
工业设备监测
-气体涡轮流量计信号调理（噪声滤波与长线传输）；
-电机轴承振动分析（多通道同步采集）。
闭环控制系统
-伺服驱动器反馈信号优化（提升PID控制精度）；
-电子称重系统抗干扰升级（抑制电网谐波干扰）。
4.系统集成与扩展功能
通信接口：
-数字输出：RS-485（Modbus RTU协议）；
-模拟输出：0-10 V/4-20 mA可选。
兼容性：
-适配主流PLC系统（如西门子S7-1200）；
-需配合24 V直流电源（功耗≤5 W）。
1.Product positioning and core functions
371-22-801706 It is speculated that it is an industrial-grade signal conditioning module,and belongs to a multi-channel analog signal processing unit.It is mainly used for sensor signal amplification,filtering and isolation conversion.It is suitable for vibration monitoring,pressure measurement and closed-loop control systems in intelligent manufacturing,and supports stable signal transmission in high-noise environments.
2.Inference of key technical parameters
Signal processing capability:
-Input type:differential/single-ended switchable(compatible with strain gauge,piezoelectric sensor);
-Gain range:1×to 1000×(program-controlled adjustment);
-Bandwidth:DC to 10 kHz(supports low-frequency vibration signal acquisition).
Isolation and protection:
-Channel isolation:≥150 dB(suppress common mode interference);
-Overvoltage protection:±50 V(input/output port).
Environmental adaptability:
-Protection level:IP40(dust-proof,adapted to industrial control cabinet);
-Operating temperature:-40°C to+85°C(wide temperature design).
3.Typical application scenarios
Industrial equipment monitoring
-Gas turbine flowmeter signal conditioning(noise filtering and long-line transmission);
-Motor bearing vibration analysis(multi-channel synchronous acquisition).
Closed-loop control system
-Servo drive feedback signal optimization(improving PID control accuracy);
-Anti-interference upgrade of electronic weighing system(suppresses harmonic interference in the power grid).
4.System integration and extension functions
Communication interface:
-Digital output:RS-485(Modbus RTU protocol);
-Analog output:0-10 V/4-20 mA optional.
compatibility:
-Adapt to mainstream PLC systems(such as Siemens S7-1200);
-Need to be equipped with a 24 V DC power supply(power consumption≤5 W).
