描述
ABB XXD863 A101(3BHE031482R0101)产品详情
产品概述

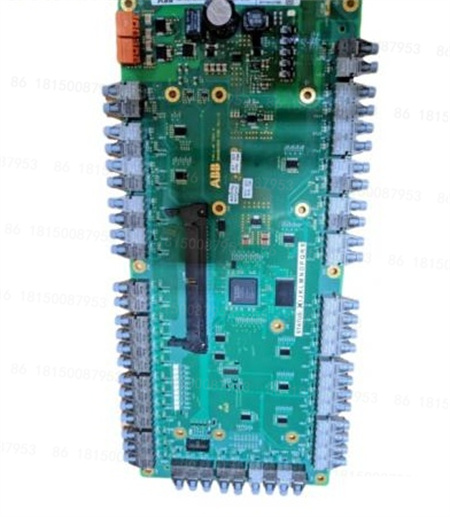

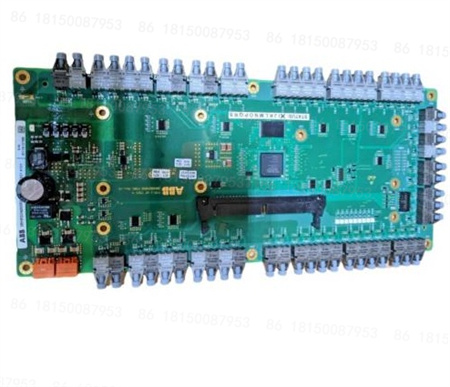

ABB XXD863 A101，其完整物料号为3BHE031482R0101，是一款来自ABB公司的驱动或控制板卡。该模块是ABB高功率变流器和传动系统中的一个关键电子组件。它的核心功能是为功率半导体器件（如IGBT、IGCT或晶闸管）提供精确、可靠的驱动信号，以控制它们的开关动作。该模块通常集成在更大型的电力电子设备中，用于实现高效的电能转换。
主要特性与规格
品牌：ABB
型号：XXD863 A101
完整物料号：3BHE031482R0101
产品类型：驱动板/控制板
兼容系统：专用于ABB的高功率变流器或传动系统，例如用于工业变频器、轨道交通牵引变流器或高压直流（HVDC）输电系统。
功能：
门极驱动：负责生成并放大控制信号，以驱动功率半导体器件的门极，使其按预定顺序导通和关断。
信号处理：接收来自主控制器的指令，并将其转换为驱动功率模块的精确信号。
系统保护：集成了故障监测和保护功能，以确保功率模块和整个系统的安全运行。
产品状态：
作为高功率传动系统的核心组件，该板卡是设备维修和系统升级的重要备件，用于替换故障模块，以恢复驱动器的正常功能。
应用领域
该驱动板作为ABB高功率变流系统的核心，广泛应用于：
工业传动：在冶金、采矿、石油天然气等行业中，用于驱动大型电机。
轨道交通：在高铁和地铁的牵引逆变器中。
电力系统：在高压直流（HVDC）输电和无功补偿（SVC）系统中。
系统维护：是维护和延长现有ABB高功率驱动器系统生命周期的核心部件。
ABB XXD863 A101(3BHE031482R0101)Product Details
Product Overview
The ABB XXD863 A101,whose full part number is 3BHE031482R0101,is a drive or control board from ABB.This module is a key electronic component in ABB’s high-power converters and drive systems.Its core function is to provide precise and reliable drive signals to power semiconductor devices(such as IGBTs,IGCTs,or thyristors)to control their switching.This module is typically integrated into larger power electronic devices to achieve efficient power conversion.
Key Features and Specifications
Brand:ABB
Model:XXD863 A101
Full Material Number:3BHE031482R0101
Product Type:Drive Board/Control Board
Compatible Systems:Designed for use with ABB’s high-power converters or drive systems,such as industrial inverters,rail traction converters,or high-voltage direct current(HVDC)transmission systems.
Function:
Gate Driver:Generates and amplifies control signals to drive the gates of power semiconductor devices,turning them on and off in a predetermined sequence.
Signal Processing:Receives commands from the main controller and converts them into precise signals to drive the power modules.
System Protection:Integrated fault monitoring and protection functions ensure the safe operation of the power modules and the entire system.
Product Status:
As a core component of high-power drive systems,this board is a crucial spare part for equipment repairs and system upgrades,replacing faulty modules to restore normal drive functionality.
Applications
This driver board,as the core of ABB’s high-power converter systems,is widely used in the following applications:
Industrial Drives:Driving large motors in industries such as metallurgy,mining,and oil and gas.
Rail Transit:In traction inverters for high-speed rail and subway systems.
Power Systems:In high-voltage direct current(HVDC)transmission and reactive power compensation(SVC)systems.
System Maintenance:A core component for maintaining and extending the lifecycle of existing ABB high-power drive systems.
