516TX 336A4940DNP516TX

工业级设计:符合IEEE 802.3和1613标准,满足NEMA TS1/TS2规范以及美国船级社(ABS)的类型认证,能够在恶劣的工业环境中稳定工作,如高温、高湿度、强电磁干扰等环境。

工作温度范围广:工作温度范围为-40℃至85℃,适应各种不同的工业现场环境温度条件,确保在极端温度下也能正常运行。

数据处理能力:采用存储转发技术,最大吞吐量可达2.6Gb/s,支持多达4000个MAC地址,能够高效处理工业网络中的大量数据,保证网络的流畅运行。

冗余电源输入:配备冗余电源输入(10-30VDC),提高了设备的供电可靠性,当一个电源出现故障时,另一个电源可继续为设备供电,避免因电源故障导致网络中断。

状态指示:具有双色LED指示灯,用于显示链路、速度、活动和双工状态,方便用户直观地了解设备的工作状态,便于故障排查和维护。

高级管理功能(部分型号支持)

IGMP窥探:支持IGMP窥探功能,可有效管理多播流量,提高网络带宽利用率。

VLAN支持:支持VLAN(802.1q),可将网络划分为多个虚拟局域网,增强网络的安全性和灵活性。

QoS支持:支持QoS(Quality of Service),能够根据不同的业务需求对网络流量进行优先级管理,确保关键业务的网络带宽和性能。

端口镜像:支持端口镜像功能,可将一个或多个端口的流量复制到另一个端口,用于网络监控和故障诊断。

远程监控:支持N-View™远程监控功能(通过OPC技术),方便用户通过网络对设备进行远程管理和监控,提高运维效率。

描述

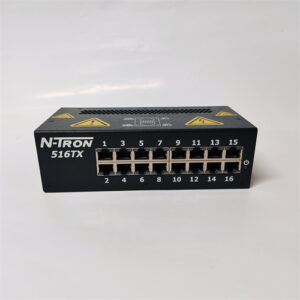

516TX 336A4940DNP516TX是通用电气(GE)旗下N-TRON 5系列中的一款16端口以太网网络交换机,主要用于工业应用。以下是其产品详情:

产品特点

端口规格:具备16个10/100Base-TX RJ-45端口,支持自动感应10/100Base-TX、双工和MDIX功能,可方便地连接各种工业设备,实现设备之间的以太网通信。

工业级设计:符合IEEE 802.3和1613标准,满足NEMA TS1/TS2规范以及美国船级社(ABS)的类型认证,能够在恶劣的工业环境中稳定工作,如高温、高湿度、强电磁干扰等环境。

工作温度范围广:工作温度范围为-40℃至85℃,适应各种不同的工业现场环境温度条件,确保在极端温度下也能正常运行。

数据处理能力:采用存储转发技术,最大吞吐量可达2.6Gb/s,支持多达4000个MAC地址,能够高效处理工业网络中的大量数据,保证网络的流畅运行。

冗余电源输入:配备冗余电源输入(10-30VDC),提高了设备的供电可靠性,当一个电源出现故障时,另一个电源可继续为设备供电,避免因电源故障导致网络中断。

状态指示:具有双色LED指示灯,用于显示链路、速度、活动和双工状态,方便用户直观地了解设备的工作状态,便于故障排查和维护。

高级管理功能(部分型号支持)

IGMP窥探:支持IGMP窥探功能,可有效管理多播流量,提高网络带宽利用率。

VLAN支持:支持VLAN(802.1q),可将网络划分为多个虚拟局域网,增强网络的安全性和灵活性。

QoS支持:支持QoS(Quality of Service),能够根据不同的业务需求对网络流量进行优先级管理,确保关键业务的网络带宽和性能。

端口镜像:支持端口镜像功能,可将一个或多个端口的流量复制到另一个端口,用于网络监控和故障诊断。

远程监控:支持N-View™远程监控功能(通过OPC技术),方便用户通过网络对设备进行远程管理和监控,提高运维效率。

物理特性

尺寸:约为263×58×28mm。

重量:约为4.3kg。

安装方式:采用坚固的工业导轨安装式钢制外壳,也可选择面板安装和机架安装套件,安装方式灵活,适用于不同的工业安装场景。

该交换机广泛应用于工业自动化、工厂自动化、电力生产、过程控制等领域,可连接可编程逻辑控制器(PLC)、监控与数据采集(SCADA)系统、计算机等设备,构建可靠的工业以太网网络。

516TX 336A4940DNP516TX is a 16-port Ethernet network switch in the N-TRON 5 series of General Electric(GE),mainly used for industrial applications.The following are its product details:

Product Features

Port Specifications:It has 16 10/100Base-TX RJ-45 ports,supports auto-sensing 10/100Base-TX,duplex and MDIX functions,and can easily connect various industrial devices to achieve Ethernet communication between devices.

Industrial-grade design:It complies with IEEE 802.3 and 1613 standards,meets NEMA TS1/TS2 specifications and American Bureau of Shipping(ABS)type certification,and can work stably in harsh industrial environments,such as high temperature,high humidity,strong electromagnetic interference and other environments.

Wide operating temperature range:The operating temperature range is-40℃to 85℃,which can adapt to various different industrial field environmental temperature conditions and ensure normal operation under extreme temperatures.

Data processing capability:Adopting store-and-forward technology,the maximum throughput can reach 2.6Gb/s,supporting up to 4000 MAC addresses,and can efficiently process large amounts of data in industrial networks to ensure smooth operation of the network.

Redundant power input:Equipped with redundant power input(10-30VDC),the device’s power supply reliability is improved.When one power supply fails,the other power supply can continue to power the device,avoiding network interruption due to power failure.

Status indication:It has a dual-color LED indicator to display link,speed,activity and duplex status,which is convenient for users to intuitively understand the working status of the device and facilitate troubleshooting and maintenance.

Advanced management function(supported by some models)

IGMP snooping:Supports IGMP snooping function,which can effectively manage multicast traffic and improve network bandwidth utilization.

VLAN support:Supports VLAN(802.1q),which can divide the network into multiple virtual LANs to enhance network security and flexibility.

QoS support:Supports QoS(Quality of Service),which can prioritize network traffic according to different business needs to ensure network bandwidth and performance for key businesses.

Port mirroring:Supports port mirroring function,which can copy the traffic of one or more ports to another port for network monitoring and fault diagnosis.

Remote monitoring:Supports N-View™remote monitoring function(through OPC technology),which facilitates users to remotely manage and monitor devices through the network and improve operation and maintenance efficiency.

Physical characteristics

Dimensions:approximately 263×58×28mm.

Weight:approximately 4.3kg.

Installation method:It adopts a sturdy industrial rail-mounted steel housing,and panel mounting and rack mounting kits can also be selected.The installation method is flexible and suitable for different industrial installation scenarios.

The switch is widely used in industrial automation,factory automation,power production,process control and other fields.It can connect programmable logic controllers(PLCs),supervisory control and data acquisition(SCADA)systems,computers and other equipment to build a reliable industrial Ethernet network.
