描述

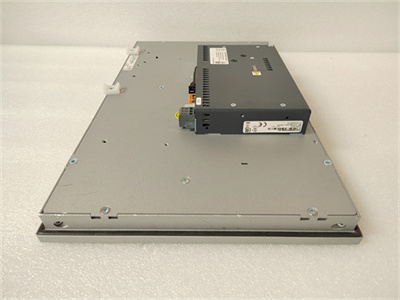

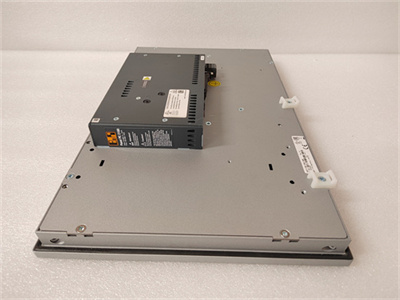

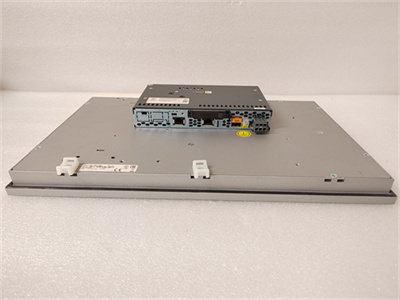

贝加莱（B&R）5AP1130.156C-000是一款高性能工业触摸屏，专为工业自动化与控制场景设计，具备高分辨率显示、多点触控及坚固耐用的特性。以下是其核心功能与技术参数的综合解析：
一、核心显示特性
高清显示
配备15.6英寸全高清TFT显示屏，分辨率1920×1080像素（16:9比例），支持1670万色彩显示，提供清晰细腻的视觉体验，适用于复杂界面与数据呈现。
触控技术
采用投射电容式多点触控（PCT技术），支持10点触控，响应速度快，适用于工业环境下的直观操作与交互。
二、硬件配置
处理器与内存
处理器：Intel Core i5-6300U，主频2.4GHz，支持Turbo Boost技术，满足实时控制需求；
内存：8GB DDR4 SDRAM，存储：256GB SSD，兼顾性能与数据存储能力。
显卡与扩展
显卡：Intel HD Graphics 520，支持图形加速与多屏显示；
接口：USB、HDMI、RS232等，兼容多种工业设备连接。
三、工业级防护设计
防护等级
正面：IP65（防尘防水），适用于潮湿或粉尘环境；
背面：IP20（安装联接模块或安全单元时）。
结构与材料
外壳：喷漆铝材质，密封件厚度3mm，坚固耐用；
尺寸：宽414mm×高258.5mm，重量3.7kg，适配控制柜安装。
四、适用场景
工业自动化
适用于PPC900/PPC2100/PPC3100等控制系统，实现设备监控与参数配置。
机器人与机械臂
支持轨迹编程与实时运动反馈，优化调试效率。
能源与物流
用于生产流程监控、数据可视化及报警管理。
五、技术优势
高可靠性
MTBF：70,000小时，支持24/7连续运行；
温度范围：-25°C至+70°C，适应严苛环境。
驱动程序与兼容性
预装B&R专用驱动程序，支持硬件校准，简化更换与维护；
兼容Windows/Linux系统，适配多种工业协议。
B&R 5AP1130.156C-000 is a high-performance industrial touch screen designed for industrial automation and control scenarios.It features high-resolution display,multi-touch and ruggedness.The following is a comprehensive analysis of its core functions and technical parameters:
1.Core display features
High-definition display
Equipped with a 15.6-inch full HD TFT display,a resolution of 1920×1080 pixels(16:9 ratio),supports 16.7 million color display,provides a clear and delicate visual experience,and is suitable for complex interfaces and data presentation.
Touch technology
Adopts projected capacitive multi-touch(PCT technology),supports 10-point touch,fast response speed,and is suitable for intuitive operation and interaction in industrial environments.
2.Hardware configuration
Processor and memory
Processor:Intel Core i5-6300U,main frequency 2.4GHz,supports Turbo Boost technology to meet real-time control requirements;
Memory:8GB DDR4 SDRAM,storage:256GB SSD,taking into account both performance and data storage capacity.
Graphics card and expansion
Graphics card:Intel HD Graphics 520,supports graphics acceleration and multi-screen display;
Interfaces:USB,HDMI,RS232,etc.,compatible with a variety of industrial equipment connections.
III.Industrial protection design
Protection level
Front:IP65(dust and water proof),suitable for humid or dusty environments;
Back:IP20(when installing connection modules or safety units).
Structure and materials
Casing:painted aluminum,seal thickness 3mm,sturdy and durable;
Dimensions:width 414mm×height 258.5mm,weight 3.7kg,suitable for control cabinet installation.
IV.Applicable scenarios
Industrial automation
Applicable to control systems such as PPC900/PPC2100/PPC3100 to realize equipment monitoring and parameter configuration.
Robots and robotic arms
Support trajectory programming and real-time motion feedback to optimize debugging efficiency.
Energy and logistics
Used for production process monitoring,data visualization and alarm management.
5.Technical advantages
High reliability
MTBF:70,000 hours,supports 24/7 continuous operation;
Temperature range:-25°C to+70°C,suitable for harsh environments.
Driver and compatibility
Pre-installed B&R dedicated driver,supports hardware calibration,simplifies replacement and maintenance;
Compatible with Windows/Linux systems,adaptable to a variety of industrial protocols.
