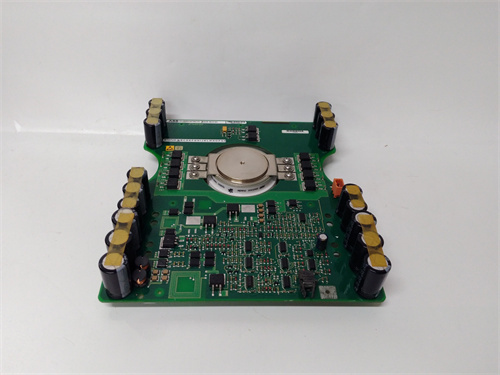

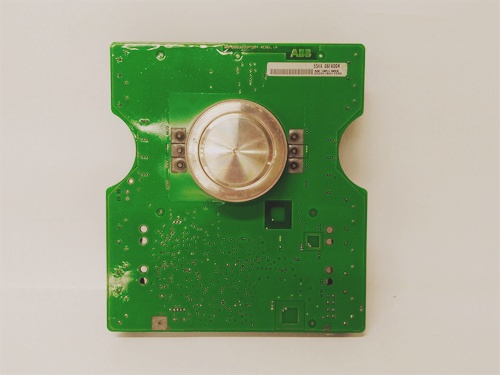

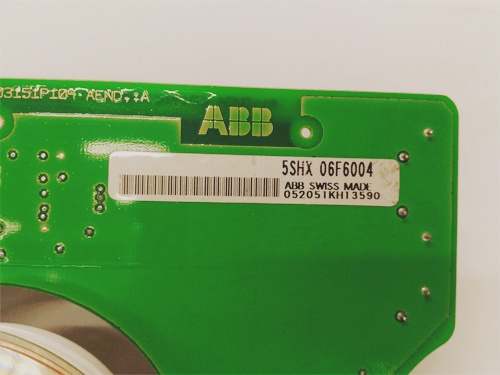

一、ABB 5SHX06F6004 IGCT模块
核心特性
技术原理：基于集成门极换向晶闸管（IGCT）技术，结合IGBT与GTO优点，兼具低导通损耗和快速开关能力。
结构设计：三极管结构，内部集成栅极驱动电路与反并联二极管，低电感封装优化散热与可靠性。
性能参数：额定电压600V、电流600A，支持高压大电流应用，频率响应能力高达40kHz（短脉冲模式）。
防护性能：工作温度范围-30°C至+70°C，IP67/68防护等级（部分型号），适应恶劣工业环境。
应用领域
电力系统：高压直流输电、柔性直流电网能量转换、变频逆变器；
工业驱动：钢铁厂、矿山机械、大型电机控制系统；
可再生能源：风电、光伏并网逆变器。
二、ABB 3BHB003387R0101 PLC备件模块
核心特性
功能定位：PLC系统备件，用于工业自动化控制，支持模块化扩展与冗余配置。
通信协议：兼容ABB Modulebus协议，支持光纤接口与电气模块总线混合拓扑，最多连接12个I/O模块或7个光纤集群。
显示与交互：集成TFT/LED显示屏，支持多协议通信与HMI界面开发，适用于人机交互场景。
防护标准：工作温度-30°C至+70°C，IP20防护等级，满足工业现场环境要求。
应用领域
过程控制：DCS系统I/O模块扩展、工业流程监控；
自动化设备：机器人控制系统、交通信号控制、电气化铁路牵引变流器；
能源管理：发电厂、变电站自动化辅助控制。
三、技术优势对比
参数5SHX06F6004 3BHB003387R0101
技术类型功率半导体器件PLC控制模块
核心功能高压大电流开关控制工业控制信号采集与处理
典型应用柔性直流输电、电机驱动DCS系统、HMI交互、冗余通信
防护等级IP67/68 IP20
.
1.ABB 5SHX06F6004 IGCT module
Core features
Technical principle:Based on integrated gate-commutated thyristor(IGCT)technology,it combines the advantages of IGBT and GTO,and has both low conduction loss and fast switching capability.
Structural design:triode structure,internal integrated gate drive circuit and anti-parallel diode,low inductance package optimizes heat dissipation and reliability.
Performance parameters:rated voltage 600V,current 600A,supports high voltage and high current applications,frequency response capability up to 40kHz(short pulse mode).
Protection performance:operating temperature range-30°C to+70°C,IP67/68 protection level(some models),adaptable to harsh industrial environments.
Application areas
Power system:high-voltage DC transmission,flexible DC grid energy conversion,variable frequency inverter;
Industrial drive:steel mills,mining machinery,large motor control systems;
Renewable energy:wind power,photovoltaic grid-connected inverters.
2.ABB 3BHB003387R0101 PLC spare parts module
Core features
Functional positioning:PLC system spare parts,used for industrial automation control,supporting modular expansion and redundant configuration.
Communication protocol:compatible with ABB Modulebus protocol,supports hybrid topology of fiber optic interface and electrical module bus,and connects up to 12 I/O modules or 7 fiber optic clusters.
Display and interaction:integrated TFT/LED display,supports multi-protocol communication and HMI interface development,suitable for human-computer interaction scenarios.
Protection standard:operating temperature-30°C to+70°C,IP20 protection level,meeting industrial site environment requirements.
Application areas
Process control:DCS system I/O module expansion,industrial process monitoring;
Automation equipment:robot control system,traffic signal control,electrified railway traction converter;
Energy management:power plant,substation automation auxiliary control.
3.Comparison of technical advantages
Parameters 5SHX06F6004 3BHB003387R0101
Technology type Power semiconductor device PLC control module
Core function High voltage and high current switch control Industrial control signal acquisition and processing
Typical applications Flexible DC transmission,motor drive DCS system,HMI interaction,redundant communication
Protection level IP67/68 IP20
