描述

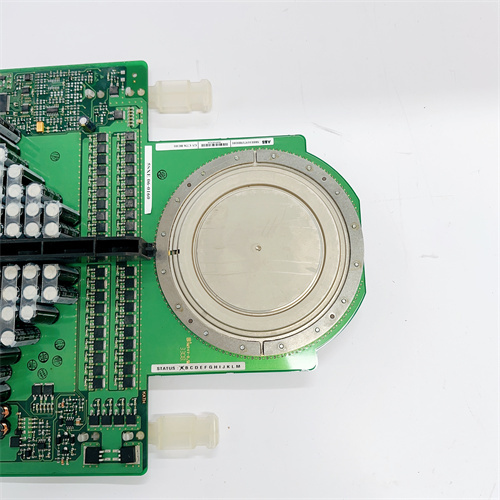

ABB 5SHX1960L0006 3BHB016120R0002 3BHE019719R0101 GVC736BE101是一款高性能IGCT（集成门极换流晶闸管）模块组合，专为高压、大功率电力电子应用设计。以下是其核心功能与技术参数的综合解析：
一、技术特点
IGCT核心性能
低导通损耗：通过优化IGCT技术，显著降低导通电压（≤1.5V），提升系统效率，尤其适用于高电流（数千安培）场景。
快速开关能力：支持高频开关操作（开关频率≥20kHz），适合柔性直流输电、中压变频器等动态响应要求高的应用。
高可靠性：模块采用紧凑型封装与散热设计，防护等级IP67，适应高温（-40°C至+125°C）与高湿环境。
模块化集成设计
多模块协同：由5SHX1960L0006（主控模块）、3BHB016120R0002（驱动模块）、3BHE019719R0101（接口模块）及GVC736BE101（通信模块）组成，支持冗余配置与热插拔。
通信兼容性：支持Profibus、Modbus及以太网协议，可无缝接入DCS/SCADA系统，实现远程监控与故障诊断。
二、应用场景
电力系统
高压直流输电（HVDC）、柔性直流电网能量转换、UPS不间断电源；
配电自动化开关柜、智能电网动态无功补偿装置。
工业驱动
大型电机变频调速（如矿山提升机、轧钢机）、压缩机节能控制；
可再生能源并网逆变器（光伏、风电）。
轨道交通
电气化铁路牵引变流器、地铁再生制动能量回收系统。
三、技术参数
参数规格
额定电压6.6kV/10kV（相电压）
额定电流1.6kA（连续）/4kA（短时）
开关频率20kHz（连续）/40kHz（脉冲）
防护等级IP67（主模块）/IP20（接口模块）
环境温度-40°C至+125°C
通信接口RS485、光纤以太网
四、优势对比
与传统GTO或IGBT模块相比，该组合模块：
效率提升：导通损耗降低30%以上，系统效率≥97%；
成本优化：模块化设计减少系统集成复杂度，维护成本降低50%；
兼容性增强：支持ABB 800xA DCS系统及第三方PLC协议。
ABB 5SHX1960L0006 3BHB016120R0002 3BHE019719R0101 GVC736BE101 is a high-performance IGCT(integrated gate-commutated thyristor)module combination designed for high-voltage,high-power power electronics applications.The following is a comprehensive analysis of its core functions and technical parameters:
1.Technical features
IGCT core performance
Low conduction loss:By optimizing IGCT technology,the conduction voltage(≤1.5V)is significantly reduced,and the system efficiency is improved,especially for high current(thousands of amperes)scenarios.
Fast switching capability:Supports high-frequency switching operations(switching frequency≥20kHz),suitable for applications with high dynamic response requirements such as flexible DC transmission and medium-voltage inverters.
High reliability:The module adopts a compact package and heat dissipation design,with a protection level of IP67,and is suitable for high temperature(-40°C to+125°C)and high humidity environments.
Modular integrated design
Multi-module collaboration:composed of 5SHX1960L0006(main control module),3BHB016120R0002(drive module),3BHE019719R0101(interface module)and GVC736BE101(communication module),supporting redundant configuration and hot swap.
Communication compatibility:supports Profibus,Modbus and Ethernet protocols,can be seamlessly connected to DCS/SCADA system,and realize remote monitoring and fault diagnosis.
2.Application scenarios
Power system
High-voltage direct current transmission(HVDC),flexible DC grid energy conversion,UPS uninterruptible power supply;
Distribution automation switchgear,smart grid dynamic reactive power compensation device.
Industrial drive
Large motor variable frequency speed regulation(such as mine hoist,rolling mill),compressor energy-saving control;
Renewable energy grid-connected inverter(photovoltaic,wind power).
Railway transportation
Electrified railway traction converter,subway regenerative braking energy recovery system.
3.Technical parameters
Parameters Specifications
Rated voltage 6.6kV/10kV(phase voltage)
Rated current 1.6kA(continuous)/4kA(short-time)
Switching frequency 20kHz(continuous)/40kHz(pulse)
Protection level IP67(main module)/IP20(interface module)
Ambient temperature-40°C to+125°C
Communication interface RS485,optical fiber Ethernet
4.Advantages
Compared with traditional GTO or IGBT modules,this combination module:
Efficiency improvement:conduction loss is reduced by more than 30%,and system efficiency is≥97%;
Cost optimization:modular design reduces system integration complexity and maintenance costs by 50%;
Compatibility enhancement:supports ABB 800xA DCS system and third-party PLC protocols.
