描述

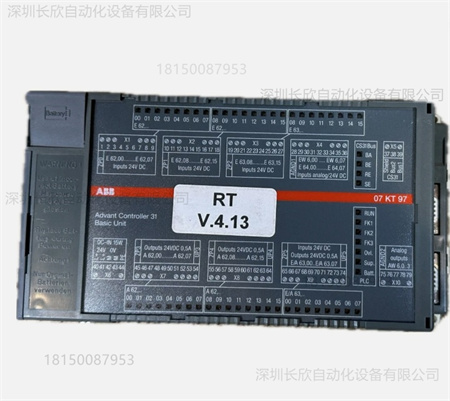

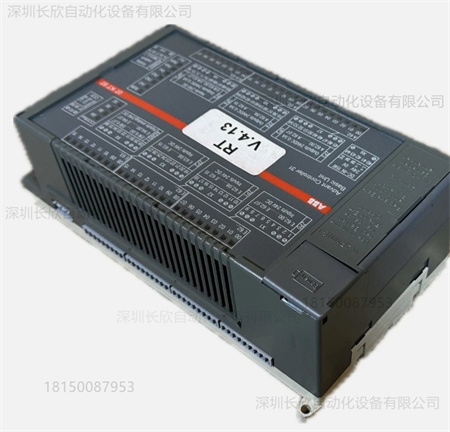

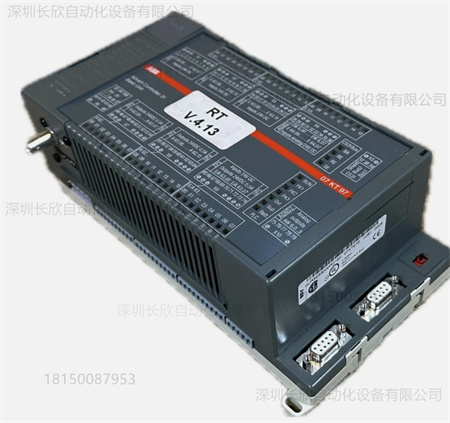

ABB 07KT97E GJR5253000R0160是一款可编程逻辑控制器（PLC）中央单元，属于ABB Advant Controller 31系列，主要用于工业自动化场景的实时控制和数据处理。以下是其详细信息：
一、核心参数与功能
处理器与内存
处理器：采用8位微处理器，集成中断和DMA控制器，支持高效的实时任务调度。
内存配置：8KB DP RAM（数据处理内存）、512KB闪存EPROM（程序存储）和368KB RAM（临时数据存储），可满足中小型工业控制程序的运行需求。
电源与输入输出
供电：24V DC电源输入，具备宽电压波动耐受性（±20%），适合工业环境。
I/O接口：
数字输入：24通道（3组，每组8个），支持24V DC信号，电气隔离设计以抗干扰。
晶体管输出：16通道（2组，每组8个），每通道最大负载0.5A，支持直接驱动继电器或电磁阀。
混合输入输出：8通道数字/模拟混合接口，模拟输入可配置为0-10V、4-20mA等标准信号，支持PT100温度传感器（2/3线制）。
通信能力
标准协议：集成Profibus-DP主站接口，支持与分布式I/O模块（如ABB S800系列）的高速通信。
可选扩展：通过扩展模块可支持以太网（TCP/IP）或Arcnet通信，实现与上位机或其他控制系统的互联。
诊断功能：内置LED指示灯实时显示通信状态（如Profibus连接质量、数据传输速率）。
二、物理特性与环境适应性
尺寸与安装
尺寸：约160mm×160mm×120mm（宽×高×深），重量约0.8kg，采用标准DIN导轨安装，支持密集型控制柜布局。
防护等级：IP20（柜内安装），可抵御灰尘和小型异物侵入，但需避免直接接触水或高湿度环境。
环境参数
工作温度：0°C至+60°C，存储温度-25°C至+70°C，适应工业现场的温度波动。
抗干扰能力：通过EMC认证，符合IEC 61000-6-2（工业环境抗扰度）标准，可在强电磁干扰环境中稳定运行。
The ABB 07KT97E GJR5253000R0160 is a programmable logic controller(PLC)central unit,part of the ABB Advant Controller 31 series.It is primarily used for real-time control and data processing in industrial automation scenarios.The following are its detailed information:
I.Core Parameters and Functions
Processor and Memory
Processor:An 8-bit microprocessor with integrated interrupt and DMA controllers supports efficient real-time task scheduling.
Memory Configuration:8KB of DP RAM(data processing memory),512KB of Flash EPROM(program storage),and 368KB of RAM(temporary data storage),meeting the requirements of running small and medium-sized industrial control programs.
Power Supply and I/O
Power Supply:24V DC power input with wide voltage fluctuation tolerance(±20%),suitable for industrial environments.
I/O Interfaces:
Digital Inputs:24 channels(3 groups of 8),supporting 24V DC signals and electrically isolated for interference resistance.Transistor Output:16 channels(2 groups of 8),with a maximum load of 0.5A per channel,supporting direct drive of relays or solenoid valves.
Mixed Input/Output:8-channel digital/analog hybrid interface.Analog inputs can be configured for standard signals such as 0-10V and 4-20mA,and support PT100 temperature sensors(2-wire/3-wire).
Communication Capabilities
Standard Protocol:Integrated Profibus-DP master interface supports high-speed communication with distributed I/O modules(such as the ABB S800 series).
Optional Expansion:Ethernet(TCP/IP)or ArcNet communication is supported via expansion modules,enabling interconnection with a host computer or other control system.
Diagnostic Function:Built-in LED indicators display real-time communication status(such as Profibus connection quality and data transmission rate).II.Physical Characteristics and Environmental Adaptability
Dimensions and Installation
Dimensions:Approximately 160mm×160mm×120mm(W×H×D),weighing approximately 0.8kg.It mounts on a standard DIN rail,supporting compact control cabinet layouts.
Protection Rating:IP20(for cabinet installation),providing protection against intrusion by dust and small foreign objects.However,it must avoid direct contact with water or high humidity.
Environmental Parameters
Operating Temperature:0°C to+60°C,Storage Temperature:-25°C to+70°C,adaptable to temperature fluctuations in industrial environments.
Interference Immunity:EMC certified,compliant with IEC 61000-6-2(Industrial Environment Immunity),ensuring stable operation in environments with strong electromagnetic interference.
