描述
产品概述

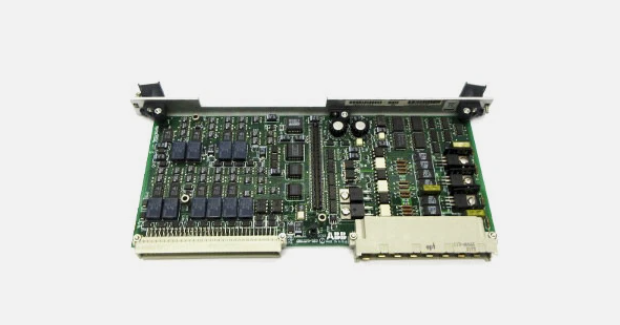

ABB 086345-504是一款工业自动化控制模块，属于控制系统系列，主要应用于电力系统控制、工业自动化I/O扩展及通讯接口场景。其核心功能包括信号处理、逻辑控制、冗余保护等，支持多协议通信和模块化扩展，适用于发电厂、变电站、工业生产线等复杂环境。
核心参数与技术特点
1.物理特性
尺寸与重量：
净重2.21公斤（框架模块版本）。
步进线性控制主板版本采用开放式通风塑料外壳，尺寸未明确标注。
防护等级：
未明确标注，但设计上具备抗干扰能力，适用于潮湿、多尘环境。
2.功能特性
控制功能：
电力系统控制：作为框架模块，支持过载保护、短路保护、接地保护等，集成数字化技术实现高可靠性控制。
工业I/O扩展：作为步进线性控制主板，提供输入/输出通道扩展，支持LED状态指示（故障、运行、警告），兼容冗余模块配置。
通讯接口：支持多协议连接（如Profibus、DeviceNet、Modbus TCP/IP），可与PLC、HMI及多品牌控制器互联。
兼容性：
适用于ABB S800系列I/O系统、电力控制系统（如发电厂、变电站）及工业自动化设备。
3.设计优势
高可靠性：采用工业级元器件，支持长期稳定运行。
模块化扩展：可与其他ABB模块（如CP430B-ETH、CP630等）集成，扩展系统功能。
诊断功能：提供故障自检和实时状态监控，便于维护。
Product Overview
ABB 086345-504 is an industrial automation control module,belonging to the control system series,mainly used in power system control,industrial automation I/O expansion and communication interface scenarios.Its core functions include signal processing,logic control,redundancy protection,etc.,support multi-protocol communication and modular expansion,and are suitable for complex environments such as power plants,substations,and industrial production lines.
Core parameters and technical characteristics
1.Physical characteristics
Size and Weight:
Net weight 2.21 kg(frame module version).
The stepping linear control motherboard version uses an open ventilated plastic shell,and the size is not clearly marked.
Protection level:
Not clearly marked,but it has anti-interference capability in design and is suitable for humid and dusty environments.
2.Functional characteristics
Control functions:
Power system control:As a framework module,it supports overload protection,short circuit protection,ground protection,etc.,and integrates digital technology to achieve high reliability control.
Industrial I/O expansion:As a stepping linear control motherboard,it provides input/output channel expansion,supports LED status indication(fault,operation,warning),and is compatible with redundant module configuration.
Communication interface:supports multi-protocol connections(such as Profibus,DeviceNet,Modbus TCP/IP),and can be interconnected with PLC,HMI and multi-brand controllers.
compatibility:
Suitable for ABB S800 series I/O systems,power control systems(such as power plants,substations)and industrial automation equipment.
3.Design Advantages
High reliability:Use industrial-grade components to support long-term and stable operation.
Modular expansion:It can be integrated with other ABB modules(such as CP430B-ETH,CP630,etc.)to expand system functions.
Diagnostic function:Provides fault self-check and real-time status monitoring for easy maintenance.
