描述

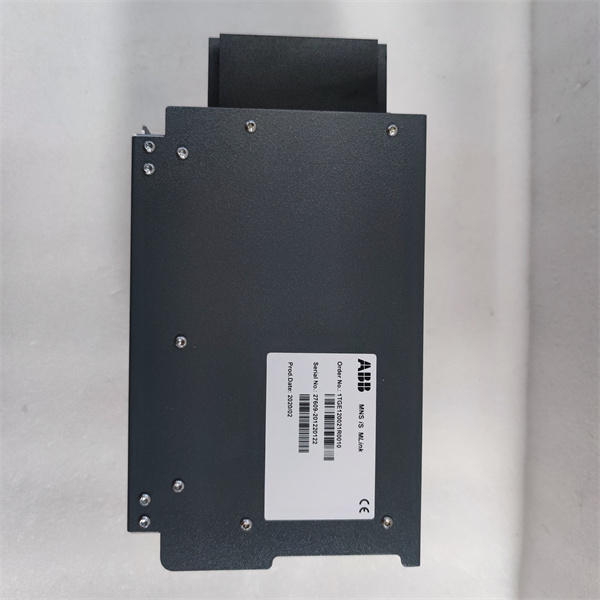

ABB 1TGE120021R0010是一款多功能工业自动化模块，集通信网关、模拟量输出与现场总线接口于一体，广泛应用于电力、制造业、楼宇自动化等领域。以下是其综合技术特性与应用场景的详细解析：
一、核心功能与定位
通信网关与协议转换
作为MLink系列通信网关，支持Modbus RTU/TCP、PROFINET等工业协议，实现不同设备间的互联互通。
支持RS485（9600-115200 bps）和以太网接口，兼容Modbus、Ethernet/IP等主流通信标准。
模拟量输出模块
提供两个模拟量输出通道，支持0-10V或4-20mA输出，分辨率高达12位，适用于驱动执行器、阀门等设备。
支持隔离功能，可选配RocketPort INFINITY卡扩展端口数量。
现场总线接口与I/O配置
支持Profibus、ASI等总线协议，兼容S800输入/输出模块，提供智能处理与I/O扫描功能。
最多可配置八个I/O组，模块采用坚固的铝制外壳，通过螺栓固定于接线板。
二、技术参数与性能
物理特性：净尺寸160×140×250 mm，净重2 kg，符合RoHS标准。
工作环境：支持-25°C至+70°C温度范围，通过振动、冲击、盐雾等工业级测试。
可靠性设计：
反极性保护与短路耐受能力，支持热切换冗余功能。
符合CE认证，兼容NAMUR协议报警传输。
三、应用场景
电力与能源系统
用于变电站监控、电机控制中心（MNS），实现状态数据采集与SCADA系统集成。
配合中压变频器实现风机、水泵节能调速，降低电网谐波干扰。
工业制造
集成于生产线控制、协作机器人驱动（如ABB GoFa CRB 15000），支持高精度定位与多设备协同。
在半导体制造中，通过热电模块实现温度稳定（0.5-5°C带宽调节）。
楼宇与环境监测
支持温湿度调节、NAMUR协议报警传输（如浓度警报），并可通过HMI（触摸屏/按钮屏）实现低成本配置。
智能电网与交通
优化太阳能追踪、储能系统充放电管理，支持铁路、公路交通设施的调度监控。
四、技术优势
高灵活性与扩展性
支持DIN导轨安装，可灵活扩展RocketPort INFINITY卡（4/8/16/32端口）。
兼容ABB控制系统与第三方设备，简化集成流程。
实时性与稳定性
基于RTOS实时操作系统，提供高效控制解决方案。
隔离技术与冗余设计降低故障风险，适用于极端工业环境。
开发与维护便捷性
配套PanelBuilder 600配置软件与低成本驱动程序开发工具。
ABB 1TGE120021R0010 is a multifunctional industrial automation module that integrates communication gateway,analog output and fieldbus interface.It is widely used in power,manufacturing,building automation and other fields.The following is a detailed analysis of its comprehensive technical characteristics and application scenarios:
I.Core functions and positioning
Communication gateway and protocol conversion
As an MLink series communication gateway,it supports industrial protocols such as Modbus RTU/TCP and PROFINET to achieve interconnection between different devices.
Supports RS485(9600-115200 bps)and Ethernet interfaces,and is compatible with mainstream communication standards such as Modbus and Ethernet/IP.
Analog output module
Provides two analog output channels,supports 0-10V or 4-20mA output,with a resolution of up to 12 bits,suitable for driving actuators,valves and other equipment.
Supports isolation function,and can be equipped with RocketPort INFINITY card to expand the number of ports.
Fieldbus interface and I/O configuration
Supports bus protocols such as Profibus and ASI,compatible with S800 input/output modules,and provides intelligent processing and I/O scanning functions.
Up to eight I/O groups can be configured,and the module adopts a sturdy aluminum housing and is fixed to the terminal board by bolts.
II.Technical parameters and performance
Physical characteristics:net size 160×140×250 mm,net weight 2 kg,RoHS compliant.
Working environment:supports-25°C to+70°C temperature range,and passes industrial-grade tests such as vibration,shock,and salt spray.
Reliability design:
Reverse polarity protection and short-circuit tolerance,support hot switching redundancy function.
Compliant with CE certification,compatible with NAMUR protocol alarm transmission.
III.Application scenarios
Power and energy systems
Used for substation monitoring and motor control center(MNS)to achieve status data acquisition and SCADA system integration.
Cooperate with medium voltage inverter to realize energy-saving speed regulation of fans and pumps and reduce grid harmonic interference.
Industrial manufacturing
Integrated in production line control and collaborative robot drive(such as ABB GoFa CRB 15000),supporting high-precision positioning and multi-device collaboration.
In semiconductor manufacturing,temperature stabilization(0.5-5°C bandwidth adjustment)is achieved through thermoelectric modules.
Building and environmental monitoring
Supports temperature and humidity adjustment,NAMUR protocol alarm transmission(such as concentration alarm),and can be configured at low cost through HMI(touch screen/button screen).
Smart grid and transportation
Optimize solar tracking,energy storage system charging and discharging management,and support dispatching and monitoring of railway and highway transportation facilities.
IV.Technical advantages
High flexibility and scalability
Support DIN rail installation,and can flexibly expand RocketPort INFINITY cards(4/8/16/32 ports).
Compatible with ABB control systems and third-party devices to simplify the integration process.
Real-time and stability
Based on RTOS real-time operating system,it provides efficient control solutions.
Isolation technology and redundant design reduce the risk of failure and are suitable for extreme industrial environments.
Easy to develop and maintain
Comes with PanelBuilder 600 configuration software and low-cost driver development tools.
