描述

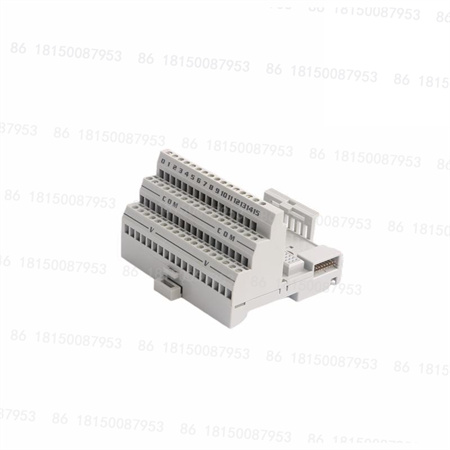

ABB 200-TB3是一款端子模块，主要用于工业控制系统中连接I/O单元和多个两线或三线设备到I/O系统。以下是其产品详情：
基本信息
品牌：ABB
型号：200-TB3
重量：0.22kg
尺寸：9.3cm×9.5cm×6cm
原产国：瑞典
安装方式：表面安装
认证：CE、UL、IEC等认证
技术规格
额定电流：在250VAC时为10A
额定电压：600VAC
端子数量：36个
工作温度范围：-20℃至+70℃
功能特点
连接功能强大：配备三排螺丝端子，上排有16个端子用于输入/输出信号，中间排由18个0V DC螺丝端子组成且内部连接，最右边和最左边的螺丝端子用于连接电源，下排由18个+24V DC螺丝端子组成，内部连接，用于为传感器供电，左右两端也用于连接电源。
性能稳定可靠：采用优质材料制造，如高等级铜合金，确保了良好的导电性和较长的使用寿命，能适应各种复杂的工业环境。
The ABB 200-TB3 is a terminal module primarily used in industrial control systems to connect I/O units and multiple two-wire or three-wire devices to the I/O system.The following are product details:
Basic Information
Brand:ABB
Model:200-TB3
Weight:0.22kg
Dimensions:9.3cm×9.5cm×6cm
Country of Origin:Sweden
Mounting Method:Surface Mount
Certifications:CE,UL,IEC,etc.
Technical Specifications
Rated Current:10A at 250VAC
Rated Voltage:600VAC
Number of Terminals:36
Operating Temperature Range:-20°C to+70°C
Features
Powerful Connectivity:Equipped with three rows of screw terminals.The top row contains 16 terminals for input/output signals.The middle row consists of 18 internally connected 0V DC screw terminals.The rightmost and leftmost screw terminals are for power connections.The bottom row consists of 18 internally connected+24V DC screw terminals for sensor power supply.The left and right ends also serve as power supply connections.
Stable and Reliable Performance:Made of high-quality materials,such as high-grade copper alloy,this ensures excellent conductivity and a long service life,making it suitable for a variety of complex industrial environments.
