描述

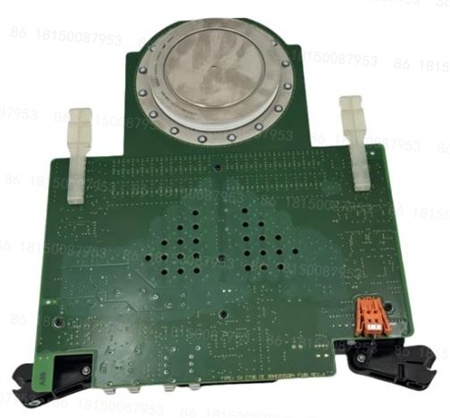

ABB 3BHB030310R0001 5SHY4045L0006是一款IGBT（绝缘栅双极型晶体管）模块，属于高压大功率半导体器件。以下是其产品详情：
基本信息：
品牌：ABB
型号：5SHY4045L0006/3BHB030310R0001
类型：IGBT模块
技术参数：
输入电压：一般大于24V，具体电压根据配置而定
输出电压：380V
输出电流：45A
输出功率：17.1kW
效率：99%
绝缘电阻：>100MΩ
额定电流：4045A
额定电压：1000V
工作温度范围：-40℃至70℃
功能特点：
大功率开关：该模块适用于中压（MV）系统，通常电压范围从2.3千伏到35千伏，可用于控制工业环境中的大功率交流负载，如工厂大型电机的变速驱动器、可再生能源系统中的大功率逆变器、软起动器等。
高效换相：模块具有内置的换相电路，与传统晶闸管相比，能够更有效地关闭，损耗更低。
减少谐波：有效的开关可以帮助减少电网中不必要的谐波的产生。
可靠运行：设计用于在恶劣的工业环境中提供可靠的性能。
应用领域：
主要用于工业自动化和控制系统中，特别是在电力系统、输电和配电系统中。适用于制造过程、物料搬运系统、发电和配电、石油和天然气行业以及水和废水处理等工业环境。具体应用包括高压变频器、风力发电变流器、工业电机驱动、电力传输系统等。
ABB 3BHB030310R0001 5SHY4045L0006 is an IGBT(Insulated Gate Bipolar Transistor)module,which is a high-voltage and high-power semiconductor device.The following are product details:
Basic Information:
Brand:ABB
Model:5SHY4045L0006/3BHB030310R0001
Type:IGBT Module
Technical Parameters:
Input Voltage:Generally greater than 24V,specific voltage varies depending on configuration
Output Voltage:380V
Output Current:45A
Output Power:17.1kW
Efficiency:99%
Insulation Resistance:>100MΩ
Rated Current:4045A
Rated Voltage:1000V
Operating Temperature Range:-40°C to 70°C
Features:
High-Power Switching:This module is suitable for medium voltage(MV)systems,typically ranging from 2.3 kV to 35 kV.It can be used to control high-power AC loads in industrial environments,such as variable speed drives for large motors in factories,high-power inverters in renewable energy systems,and soft starters.
Efficient Commutation:The module features built-in commutation circuitry,enabling more efficient switching and lower losses than traditional thyristors.Harmonic Reduction:Effective switching can help reduce the generation of unwanted harmonics in the power grid.
Reliable Operation:Designed to provide reliable performance in harsh industrial environments.
Applications:
Primarily used in industrial automation and control systems,particularly in power systems,transmission,and distribution systems.Suitable for industrial environments such as manufacturing processes,material handling systems,power generation and distribution,the oil and gas industry,and water and wastewater treatment.Specific applications include high-voltage inverters,wind turbine converters,industrial motor drives,and power transmission systems.
