描述
一、产品概述

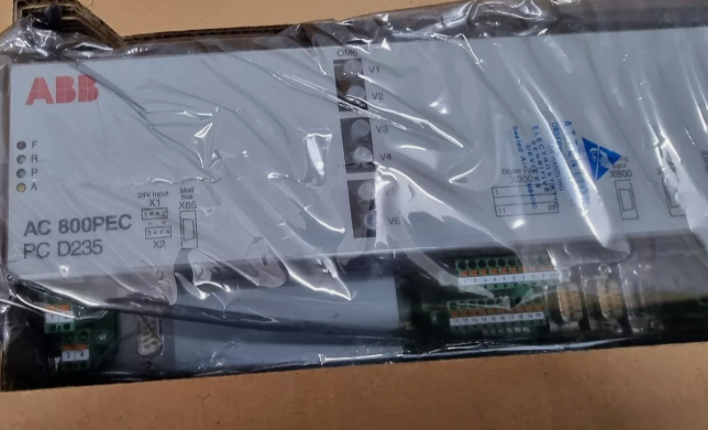

ABB 3BHE046836R0101 GFD563A101是ABB公司开发的高性能工业控制器模块，属于AC 800PEC系列的核心组件，主要用于电力系统自动化控制、工业过程控制及机器人系统通信。其核心功能包括励磁装置管理、数据高速传输、多协议兼容及高可靠性控制，广泛应用于发电厂、变频器、机器人系统及工业自动化领域。
二、核心功能与特点
高效通信与数据处理
支持以太网协议（如Modbus、Profibus、IEC 61850）和光纤通信接口，确保工业环境中高速、稳定的数据传输。
控制周期低至100微秒，适用于电力电子设备（如变频器、整流器）的实时控制。
励磁系统管理
作为励磁装置控制单元，可调节同步发电机的励磁电流和输出电压，提升电网稳定性。
集成无功功率控制和故障诊断功能，支持过载、短路等保护机制。
多协议兼容性与扩展性
支持MATLAB/Simulink编程，实现从仿真到部署的无缝转换。
模块化设计，可扩展冗余模块、I/O接口及通信协议适配器，适应复杂系统需求。
工业级可靠性
采用双核处理器架构（浮点CPU+FPGA），支持冗余配置，确保单点故障时系统仍稳定运行。
环境适应性：工作温度范围-20°C至+70°C，防护等级IP66，抗振动与冲击。
安全与维护
内置安全联锁装置，防止误操作或故障导致的系统风险。
支持预测性维护功能，定期检查可延长设备寿命。
三、技术参数
参数类别规格
处理器双核架构（浮点CPU+FPGA）
通信接口以太网、光纤、Modbus、Profibus、IEC 61850
控制周期100微秒（典型值）
环境适应性工作温度：-20°C至70°C；防护等级：IP66
尺寸与重量53 x 187 x 130毫米，约3公斤（参考AC800PEC系列）
编程语言梯形图（LD）、结构化文本（ST）、功能块图（FBD）
1.Product Overview
ABB 3BHE046836R0101 GFD563A101 is a high-performance industrial controller module developed by ABB.It belongs to the core component of the AC 800PEC series.It is mainly used for power system automation control,industrial process control and robot system communication.Its core functions include excitation device management,high-speed data transmission,multi-protocol compatibility and high-reliability control,and are widely used in power plants,frequency converters,robot systems and industrial automation fields.
2.Core functions and features
Efficient communication and data processing
Supports Ethernet protocols(such as Modbus,Profibus,IEC 61850)and fiber optic communication interfaces to ensure high-speed and stable data transmission in industrial environments.
The control cycle is as low as 100 microseconds and is suitable for real-time control of power electronic equipment(such as frequency converters,rectifiers).
Excitation system management
As the excitation device control unit,the excitation current and output voltage of the synchronous generator can be adjusted to improve the stability of the power grid.
Integrated reactive power control and fault diagnosis functions,supporting protection mechanisms such as overload and short circuit.
Multi-protocol compatibility and scalability
Supports MATLAB/Simulink programming to achieve seamless transformation from simulation to deployment.
Modular design,scalable redundant modules,I/O interfaces and communication protocol adapters to meet complex system needs.
Industrial-grade reliability
It adopts a dual-core processor architecture(floating point CPU+FPGA)and supports redundant configuration to ensure that the system still operates stably in a single point of failure.
Environmental adaptability:Operating temperature range-20°C to+70°C,protection level IP66,vibration and shock resistance.
Safety and maintenance
Built-in safety interlocking device to prevent systemic risks caused by misoperation or failure.
Supports predictive maintenance features,and regular inspections can extend the life of the equipment.
3.Technical parameters
Parameter Category Specifications
Processor Dual-core architecture(floating point CPU+FPGA)
Communication interface Ethernet,fiber optic,Modbus,Profibus,IEC 61850
Control cycle 100 microseconds(typical)
Environmental adaptability Operating temperature:-20°C to 70°C;Protection level:IP66
Dimensions and Weight 53 x 187 x 130 mm,approximately 3 kg(refer to AC800PEC Series)
Programming languagesLadder diagram(LD),structured text(ST),functional block diagram(FBD)
