描述
ABB AC 800F SA801F 3BDH000011R1是ABB Freelance分布式控制系统（DCS）的中央处理单元，同时也可作为电源模块为系统组件供电。以下是其产品详情：
基本信息
品牌：ABB
型号：SA801F
零件编号：3BDH000011R1
产品类型：DCS中央处理单元、电源模块
产地：瑞典
技术参数
输入电压：115/230VAC自适应
输出电压：5VDC/5A和3.3VDC/5A
效率：典型效率为90%
保护等级：IP20
工作温度范围：-20℃至+60℃
尺寸：约6.5cm×12.5cm×15.5cm
重量：约0.46kg
功能特点
现场总线连接：可与基金会现场总线（FOUNDATION Fieldbus）、PROFIBUS和Modbus等多种现场总线技术无缝集成。
分布式架构：可安装在靠近过程的位置，降低布线复杂性并缩短系统响应时间。
高可靠性：经过严格测试和验证，能在恶劣工业环境中长时间稳定运行，具备短路保护、过流限制等功能。
灵活配置与编程：支持多种编程语言和开发环境，可根据具体应用需求进行灵活配置和调整。
电源管理：为控制器的CPU板、以太网模块和现场总线模块提供必要电源，具有增强的电源故障预测和停机程序，以及电源状态和现场控制器运行状态LED指示。
应用领域
水和废水处理：用于控制泵站、处理过程和配送网络。
化工行业：用于中小型工厂的批量和连续过程控制。
发电：用于自动化辅助系统和工厂辅助控制。
食品和饮料：用于啤酒厂、乳制品厂和装瓶厂的生产线管理。

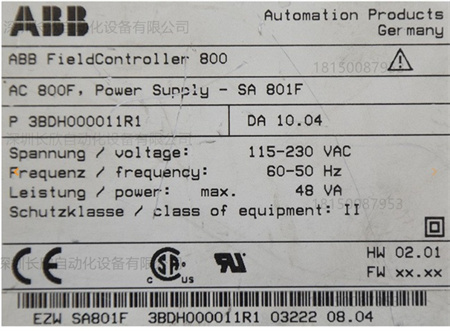

The ABB AC 800F SA801F 3BDH000011R1 is the central processing unit for ABB’s Freelance Distributed Control System(DCS),and can also function as a power module to power system components.Here are the product details:
Basic Information
Brand:ABB
Model:SA801F
Part Number:3BDH000011R1
Product Type:DCS Central Processing Unit,Power Module
Origin:Sweden
Technical Specifications
Input Voltage:115/230VAC Auto-adaptive
Output Voltage:5VDC/5A and 3.3VDC/5A
Efficiency:Typical efficiency 90%
Protection Rating:IP20
Operating Temperature Range:-20℃to+60℃
Dimensions:Approx.6.5cm×12.5cm×15.5cm
Weight:Approx.0.46kg
Features
Fieldbus Connectivity:Seamlessly integrates with various fieldbus technologies such as Foundation Fieldbus,PROFIBUS,and Modbus.
Distributed Architecture:Can be installed close to the process,reducing wiring complexity and shortening system response time.
High Reliability:Rigorously tested and verified,it can operate stably for extended periods in harsh industrial environments,featuring short-circuit protection and overcurrent limiting.
Flexible Configuration and Programming:Supports multiple programming languagesand development environments,allowing for flexible configuration and adjustment to meet specific application needs.
Power Management:Provides necessary power to the controller’s CPU board,Ethernet module,and fieldbus module,featuring enhanced power failure prediction and shutdown procedures,as well as LED indicators for power status and field controller operating status.
Application Areas:
Water and Wastewater Treatment:Used for controlling pump stations,treatment processes,and distribution networks.
Chemical Industry:Used for batch and continuous process control in small to medium-sized plants.
Power Generation:Used for automation auxiliary systems and plant auxiliary control.
Food and Beverage:Used for production line management in breweries,dairy plants,and bottling plants.
