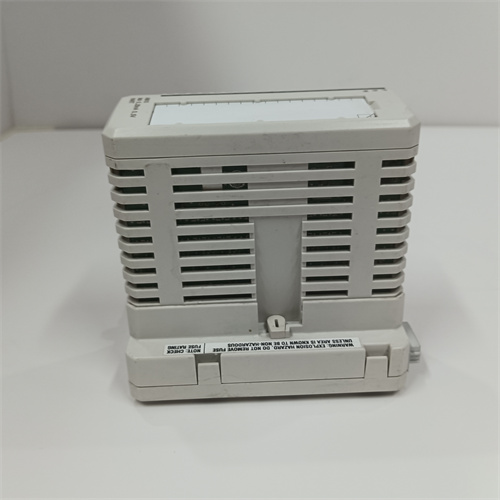

ABB AI815 3BSE052604R1产品详情
一、基本信息
品牌与型号：ABB AI815 3BSE052604R1
产品类型：模拟输入模块
所属系列：ABB AC 800M系列过程控制系统
二、技术规格
输入通道：
模块具有8个独立的模拟输入通道，每个通道都可以配置为电压或电流输入。
支持的信号类型包括0-20 mA、4-20 mA、0-10V、0-5V和1-5V d.c.等，能够适应不同的信号输入需求。
输入电阻：
电压输入的输入电阻大于10M欧姆。
电流输入的输入电阻为250欧姆（包括PTC）。
分辨率：
模块的分辨率为12位，能够提供高精度的模拟信号测量。
电源供应：
模块能够将外部HART兼容变送器电源分配给每个通道，为2线制或3线制变送器的供电分配提供一个简单的连接。
模块会监控并限制发射机电源的电流。
通信与协议：
支持HART通讯协议，并具有HART直通功能，仅支持点对点通信。
模块通常具有通信接口，如以太网、Modbus等（具体接口类型可能因产品配置而异），方便与其他设备或控制系统进行数据交换和通信。
隔离与分组：
模块具有分组与地面隔离的功能，提高了系统的安全性和稳定性。1组8通道与地隔离。
防护等级与工作环境：
模块具有IP30防护等级，采用波浪纹铝制加强机壳，适合工业环境使用。
工作温度范围宽，能在恶劣的环境条件下稳定运行。
三、功能特点
高精度测量：通过高精度的模拟输入电路，能够准确地将模拟信号转换为数字信号，为控制系统提供准确的数据支持。
高可靠性：采用高质量的电子元件和先进的生产工艺，保证了其高可靠性和稳定性。能够在各种复杂和恶劣的工业环境中稳定运行，满足长时间、连续工作的需求。
易于集成：采用标准的接口和通信协议，易于与其他设备和系统进行集成。它可以通过与控制系统中的其他模块进行通信，实现数据的共享和交换，从而提高整个系统的运行效率。
灵活配置：可以根据实际需要进行灵活的配置。用户可以根据需要选择不同的信号类型、输入范围和分辨率等参数，以满足不同的应用需求。
维护方便：具有完善的故障诊断和报警功能，当出现故障时能够及时进行报警提示，方便用户进行故障排除和维护。同时，还提供了方便的更换和维护接口，降低了维护成本和难度。
ABB AI815 3BSE052604R1 Product Details
I.Basic Information
Brand and Model:ABB AI815 3BSE052604R1
Product Type:Analog Input Module
Series:ABB AC 800M Series Process Control System
II.Technical Specifications
Input Channels:
The module has 8 independent analog input channels,each of which can be configured as voltage or current input.
Supported signal types include 0-20 mA,4-20 mA,0-10V,0-5V and 1-5V d.c.,etc.,which can adapt to different signal input requirements.
Input Resistance:
The input resistance of the voltage input is greater than 10M ohms.
The input resistance of the current input is 250 ohms(including PTC).
Resolution:
The module has a resolution of 12 bits,which can provide high-precision analog signal measurement.
Power supply:
The module can distribute the power supply of external HART-compatible transmitter to each channel,providing a simple connection for power distribution of 2-wire or 3-wire transmitters.
The module monitors and limits the current of the transmitter power supply.
Communication and protocol:
Supports HART communication protocol and has HART pass-through function,and only supports point-to-point communication.
The module usually has a communication interface,such as Ethernet,Modbus,etc.(the specific interface type may vary depending on the product configuration),which is convenient for data exchange and communication with other devices or control systems.
Isolation and grouping:
The module has the function of grouping and ground isolation,which improves the safety and stability of the system.1 group of 8 channels is isolated from the ground.
Protection level and working environment:
The module has an IP30 protection level and adopts a corrugated aluminum reinforced casing,which is suitable for use in industrial environments.
The operating temperature range is wide and can operate stably under harsh environmental conditions.
III.Functional characteristics
High-precision measurement:Through high-precision analog input circuits,analog signals can be accurately converted into digital signals,providing accurate data support for control systems.
High reliability:The use of high-quality electronic components and advanced production technology ensures its high reliability and stability.It can operate stably in various complex and harsh industrial environments and meet the needs of long-term and continuous work.
Easy to integrate:It adopts standard interfaces and communication protocols,which is easy to integrate with other devices and systems.It can communicate with other modules in the control system to achieve data sharing and exchange,thereby improving the operating efficiency of the entire system.
Flexible configuration:It can be flexibly configured according to actual needs.Users can choose different signal types,input ranges,resolutions and other parameters according to their needs to meet different application requirements.
Easy maintenance:It has complete fault diagnosis and alarm functions,and can promptly alarm when a fault occurs,which is convenient for users to troubleshoot and maintain.At the same time,it also provides a convenient replacement and maintenance interface to reduce maintenance costs and difficulties.
