描述

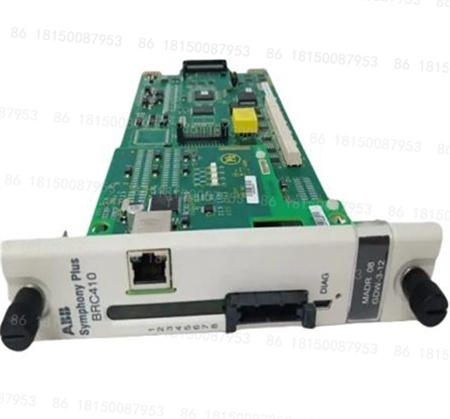

ABB Bailey SPBRC410是ABB Symphony Plus分布式控制系统（DCS）中的核心桥接控制器。以下是其产品详情：
基本信息
产品型号：SPBRC410
制造商：ABB
产品类型：桥接控制器
供电电压：24V DC（±15%）
处理器：ColdFire®MCF5475，256MHz
内存配置：4MB ROM+64MB RAM+2MB NVRAM
通信协议：Modbus TCP、RS-232/485、CAN、EtherNet/IP
I/O接口：8路数字输入（DI）、4路数字输出（DO）
工作温度：-20°C至+60°C（无冷凝）
防护等级：IP20（模块）/IP65（外壳，可选）
安装方式：35mm DIN导轨或机柜式安装
尺寸与重量：203.2mm×254mm×101.6mm，约1.5kg
认证标准：CE、ATEX（可选防爆型号）
功能特点
强大的通信能力：支持多种通信协议，可与ABB Symphony Harmony、INFI 90等前代系统兼容，也可与第三方PLC、智能电子设备（IED）及ABB 800xA系统集成。
复杂控制逻辑执行：基于256MHz ColdFire®处理器与64MB RAM，可处理30,000个功能块，执行连续控制、批量控制及先进算法。
冗余设计：支持双控制器热备（需搭配NRC 410模块），确保关键流程无中断运行，平均无故障时间（MTBF）超过200,000小时。
智能诊断与维护支持：内置实时健康监测功能，可通过LED指示灯与LCD屏显示通信状态、I/O信号质量及内存使用情况，故障时自动生成事件日志，帮助工程师快速定位问题。
应用领域
石油化工：可连接DCS与现场智能仪表，实现温度、流量数据的实时采集与调节阀控制，也可通过Modbus TCP协议集成多个储罐的液位、压力传感器，构建分布式安全联锁系统。
电力行业：作为SCADA系统的边缘控制器，采集继电保护装置数据，并通过RS-485接口发送控制指令至断路器，实现故障快速隔离；在光伏电站中，连接逆变器与储能系统，优化功率分配策略，提升并网稳定性。
冶金与矿业：通过Modbus TCP与PLC通信，实时监测炉温、透气性等参数，实现布料系统的精准调节；连接称重传感器与变频器，动态调整皮带速度，避免过载与空转，实现节能。
The ABB Bailey SPBRC410 is the core bridge controller in the ABB Symphony Plus distributed control system(DCS).The following are product details:
Basic Information
Product Model:SPBRC410
Manufacturer:ABB
Product Type:Bridge Controller
Power Supply:24V DC(±15%)
Processor:ColdFire®MCF5475,256MHz
Memory Configuration:4MB ROM+64MB RAM+2MB NVRAM
Communication Protocols:Modbus TCP,RS-232/485,CAN,EtherNet/IP
I/O Interfaces:8 Digital Inputs(DI),4 Digital Outputs(DO)
Operating Temperature:-20°C to+60°C(non-condensing)
Protection Rating:IP20(module)/IP65(housing,optional)
Mounting:35mm DIN rail or cabinet
Dimensions and Weight:203.2mm×254mm×101.6mm,approx.1.5kg
Certifications:CE,ATEX(explosion-proof models available)
Features
Powerful communication capabilities:Supports multiple communication protocols and is compatible with previous-generation systems such as ABB Symphony Harmony and INFI 90.It can also be integrated with third-party PLCs,Intelligent Electronic Devices(IEDs),and ABB 800xA systems.
Complex control logic execution:Based on a 256MHz ColdFire®processor and 64MB of RAM,it can process 30,000 function blocks and execute continuous and batch control,as well as advanced algorithms.
Redundant design:Supports dual-controller hot standby(requires NRC 410 module),ensuring uninterrupted operation of critical processes and a mean time between failures(MTBF)exceeding 200,000 hours.
Intelligent diagnostics and maintenance support:Built-in real-time health monitoring displays communication status,I/O signal quality,and memory usage via LED indicators and an LCD screen.Automatically generates event logs in the event of a fault,helping engineers quickly locate the problem.Application Areas
Petrochemical:Connects to DCS systems and field smart instruments for real-time temperature and flow data collection and control of regulating valves.It also integrates level and pressure sensors from multiple storage tanks via the Modbus TCP protocol to build a distributed safety interlock system.
Power Industry:Serves as an edge controller in SCADA systems,collecting data from relay protection devices and sending control commands to circuit breakers via the RS-485 interface for rapid fault isolation.In photovoltaic power plants,it connects inverters and energy storage systems to optimize power distribution strategies and improve grid stability.
Metallurgy and Mining:Communicates with PLCs via Modbus TCP for real-time monitoring of parameters such as furnace temperature and air permeability,enabling precise adjustment of material distribution systems.Connects to load cells and inverters for dynamic belt speed adjustment,preventing overload and idling and achieving energy savings.
