描述
ABB CB801 3BSE042245R1是一款工业通信模块，主要用于实现自动化系统中设备间的数据交换与通信。具体详情如下：
通信协议：支持PROFIBUS DP协议。
波特率：可设置为9600bps、19200bps、48000bps、96000bps、192000bps等，数据传输速率最大可达12Mbps。
节点地址：范围为0-31。
接口类型：采用9针D-Sub连接器。
工作温度范围：-20°C至+60°C。
存储温度范围：-40°C至+85°C。
尺寸：114mm×80mm×23mm。
重量：约0.2kg。
安装方式：支持导轨安装或螺钉安装。
产品特点：具有高可靠性，采用高品质元件和先进设计，能在恶劣环境下长期稳定运行；兼容性好，可与各种PROFIBUS DP设备无缝连接；扩展性强，支持远程I/O、诊断等扩展功能；提供易于使用的接口和配置工具，方便用户安装与配置。
产品作用：主要用于将Panel 800控制系统连接到PROFIBUS DP现场总线网络，实现与其他PROFIBUS DP设备之间的通信和数据交换，可应用于工艺控制、运动控制等工业自动化场景。

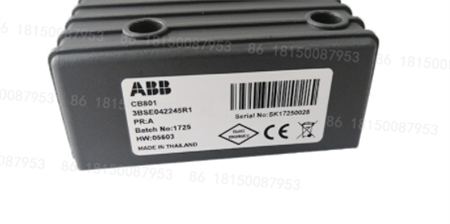

The ABB CB801 3BSE042245R1 is an industrial communication module primarily used for data exchange and communication between devices in automation systems.Specific details are as follows:
Communication Protocol:Supports PROFIBUS DP protocol.
Baud Rate:Can be set to 9600bps,19200bps,48000bps,96000bps,192000bps,etc.,with a maximum data transmission rate of 12Mbps.
Node Address:Range 0-31.

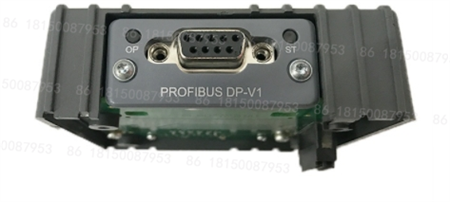

Interface Type:Uses a 9-pin D-Sub connector.
Operating Temperature Range:-20°C to+60°C.
Storage Temperature Range:-40°C to+85°C.
Dimensions:114mm×80mm×23mm.
Weight:Approximately 0.2kg.
Mounting Method:Supports DIN-rail mounting or screw mounting.Product Features:High reliability,utilizing high-quality components and advanced design,ensuring long-term stable operation in harsh environments;excellent compatibility,seamless connection with various PROFIBUS DP devices;strong scalability,supporting extended functions such as remote I/O and diagnostics;and easy-to-use interfaces and configuration tools for convenient installation and configuration.
Product Application:Primarily used to connect the Panel 800 control system to a PROFIBUS DP fieldbus network,enabling communication and data exchange with other PROFIBUS DP devices.Suitable for industrial automation scenarios such as process control and motion control.
