一、产品概述

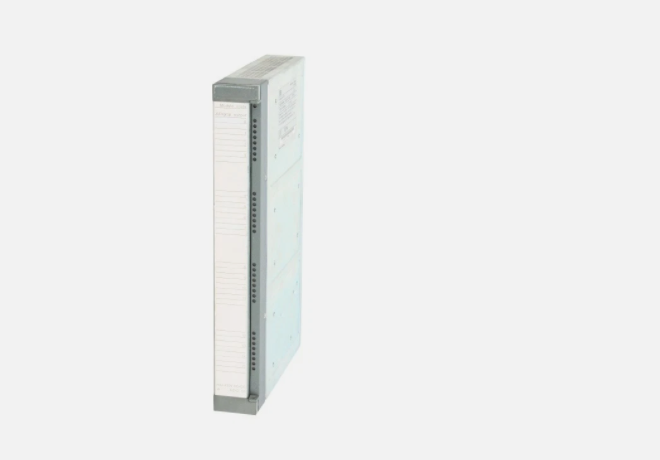

ABB DDO02是一款多功能工业自动化模块，根据应用场景不同，存在以下两种主要类型：
触摸屏模块：属于Panel 800系列，集成高分辨率显示屏和多协议通信能力，适用于人机界面（HMI）设计。
I/O模块：属于Freelance2000 RACK I/O系列，支持数字信号转换与通信，具备独立通道隔离和过流保护功能。
数字输出设备：专为工业自动化系统设计，支持高精度电流输出与网络通信。
二、核心功能与参数
1.触摸屏模块（Panel 800系列）
显示特性：
高分辨率TFT/LED屏幕，支持宽屏设计，提供直观的图标化操作界面。
基于矢量图形技术，提升图形渲染效果与交互效率。
通信能力：
支持多协议（如PROFINET、EtherNet/IP）连接，兼容多品牌控制器。
提供本地通信、远程访问及扩展接口。
环境适应性：
防护等级未明确标注，但外壳为压铸粉末涂层铝制，适用于潮湿、多尘环境。
工作温度范围：-30°C至+70°C，湿度95%。
软件支持：
基于.NET框架，支持Panel Builder 800工具进行快速工程设计，兼容Microsoft Windows环境。
1.Product Overview
ABB DDO02 is a multifunctional industrial automation module.According to the application scenario,there are two main types:
Touch screen module:belongs to the Panel 800 series,integrates high-resolution display and multi-protocol communication capabilities,suitable for human-machine interface(HMI)design.
I/O module:belongs to the Freelance2000 RACK I/O series,supports digital signal conversion and communication,and has independent channel isolation and overcurrent protection functions.
Digital output equipment:specially designed for industrial automation systems,supporting high-precision current output and network communication.
2.Core functions and parameters
1.Touch screen module(Panel 800 series)
Display features:
High resolution TFT/LED screen,supports widescreen design,and provides an intuitive iconized operation interface.
Based on vector graphics technology,improve the rendering effect and interaction efficiency of graphics.
Communication capability:
Supports multi-protocol(such as PROFINET,EtherNet/IP)connections,and is compatible with multi-brand controllers.
Provides local communication,remote access and extended interfaces.
Environmental adaptability:
The protection grade is not clearly marked,but the shell is made of die-cast powder-coated aluminum,suitable for humid and dusty environments.
Operating temperature range:-30°C to+70°C,humidity 95%.
Software support:
Based on the.NET framework,it supports Panel Builder 800 tools for rapid engineering design and is compatible with Microsoft Windows environments.
