描述

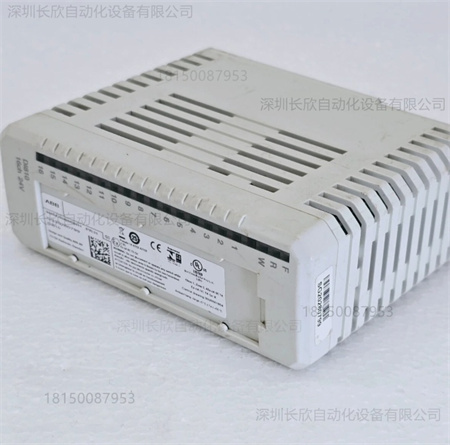

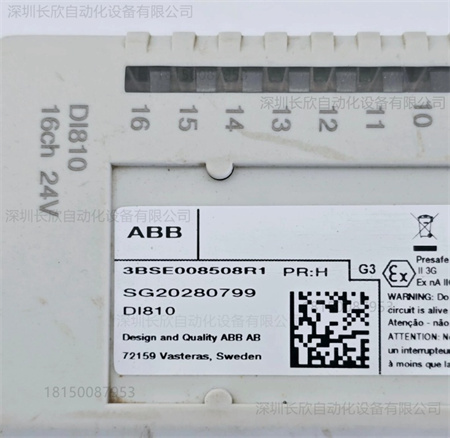

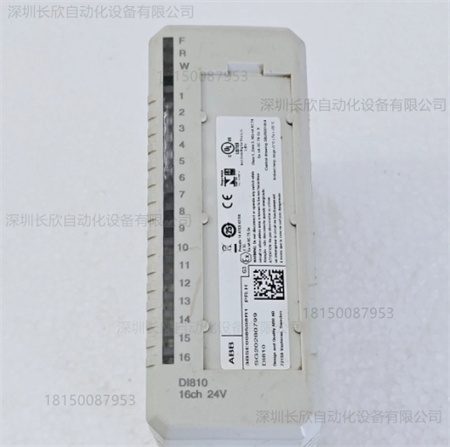

ABB DI810 3BSE008508R1是一款数字量输入模块，属于ABB S800 I/O系列，主要用于工业自动化系统中采集低电压数字信号（如传感器、开关状态等），广泛适配于ABB Ability™System 800xA等控制系统。以下是其详细信息：
一、基本参数
通道配置
通道数量：16个数字输入通道，分为两组（每组8个通道），支持独立信号采集。
输入类型：兼容干接点（无源触点）、湿接点（有源信号），支持常开/常闭触点输入。
电气参数
输入电压：额定24V DC，电压范围18-30V DC（适应工业电源波动）。
输入电流：24V DC时典型值6mA，低功耗设计减少信号源负载。
输入阻抗：3.5kΩ（稳定的阻抗特性，确保信号采集准确性）。
隔离与安全
隔离方式：两组通道之间电气隔离，通道与模块总线、地之间也实现隔离，抗干扰能力强。
绝缘等级：额定绝缘电压50V，介电测试电压500V AC（1分钟），符合工业安全标准。
二、功能特点
快速响应与滤波
响应时间：信号切换响应时间＜1ms，满足高速控制场景需求（如生产线实时监测）。
可配置滤波：支持数字滤波时间调整（2ms、4ms、8ms、16ms），可根据现场电磁环境设置，有效滤除噪声脉冲。
状态指示与诊断
每个通道配备独立LED指示灯（绿色），实时显示输入状态（“1”状态点亮，“0”状态熄灭），直观判断通道是否正常工作。
每组通道内置电压监控功能，当电源电压异常时，通过模块总线反馈错误信号，便于远程诊断。
保护功能
每个通道集成限流组件和EMC保护电路，具备过流保护和抗电磁干扰能力，适应工业强电磁环境（如电机、变频器附近）。
环境适应性
工作温度：-20℃至+60℃（宽温设计，适应高低温工业场景），存储温度-40℃至+70℃。
防护等级：IP20（需安装在控制柜内），抗振动、冲击性能符合IEC 61131-2标准。
三、物理与兼容性
尺寸与重量：宽45mm×高119mm×深102mm（含连接器111mm），重量约0.2kg，适合密集型控制柜安装（节省空间）。
功耗：典型值3.5W，低发热设计，延长模块寿命。
兼容性：支持与ABB S800 I/O系列终端单元（如TU810、TU812、TU830等）搭配，通过PROFIBUS DP、MODBUS等协议接入控制系统，实现分布式信号采集。
The ABB DI810 3BSE008508R1 is a digital input module from the ABB S800 I/O series.It is primarily used for acquiring low-voltage digital signals(such as sensor and switch status)in industrial automation systems and is widely compatible with control systems such as ABB Ability™System 800xA.The following are its details:
I.Basic Parameters
Channel Configuration
Number of Channels:16 digital input channels,divided into two groups of 8 channels each,supporting independent signal acquisition.
Input Type:Compatible with both dry contacts(passive)and wet contacts(active signals),supporting both normally open and normally closed contact inputs.
Electrical Parameters
Input Voltage:Rated 24V DC,voltage range 18-30V DC(accommodates industrial power supply fluctuations).
Input Current:Typical 6mA at 24V DC.The low-power design reduces signal source load.
Input Impedance:3.5kΩ(Stable impedance ensures accurate signal acquisition).Isolation and Safety
Isolation:Electrical isolation between the two channels,as well as isolation between the channels and the module bus and ground,provides strong anti-interference capabilities.
Insulation Level:Rated insulation voltage 50V,dielectric test voltage 500V AC(1 minute),meeting industrial safety standards.
II.Features
Fast Response and Filtering
Response Time:Signal switching response time is less than 1ms,meeting the requirements of high-speed control scenarios(such as real-time production line monitoring).
Configurable Filtering:Supports digital filter time adjustment(2ms,4ms,8ms,and 16ms),which can be set based on the on-site electromagnetic environment to effectively filter out noise pulses.
Status Indication and Diagnostics
Each channel is equipped with an independent green LED indicator that displays the input status in real time(lit for”1″and off for”0″),allowing intuitive verification of channel operation.
Each channel has a built-in voltage monitoring function.When the power supply voltage is abnormal,an error signal is fed back via the module bus,facilitating remote diagnosis.Protection Features
Each channel features integrated current limiting components and EMC protection circuitry,providing overcurrent protection and electromagnetic interference immunity,making it suitable for industrial environments with strong electromagnetic fields(such as those near motors and inverters).
Environmental Adaptability
Operating Temperature:-20°C to+60°C(wide temperature design,suitable for high and low temperature industrial environments);Storage Temperature:-40°C to+70°C.
Protection Rating:IP20(must be installed in a control cabinet);Vibration and shock resistance meet IEC 61131-2 standards.
III.Physical and Compatibility
Dimensions and Weight:45mm wide×119mm high×102mm deep(111mm including connectors),weighing approximately 0.2kg,suitable for space-saving installation in dense control cabinets.
Power Consumption:Typical 3.5W.Low heat generation design extends module life.Compatibility:Supports pairing with ABB S800 I/O series terminal units(such as TU810,TU812,TU830,etc.),and access to control systems via PROFIBUS DP,MODBUS,and other protocols for distributed signal acquisition.
