描述

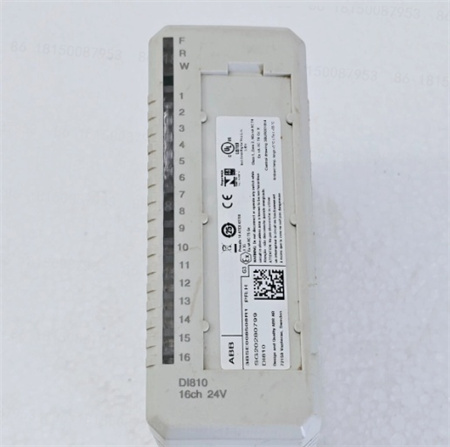

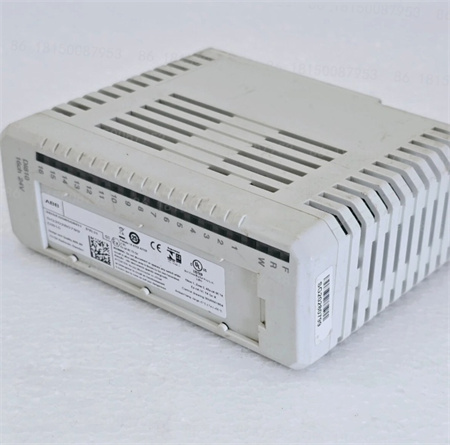

ABB DI810 3BSE008508R1是一款数字输入模块，属于ABB S800 I/O系统，其产品详情如下：
基本信息
产品编号：3BSE008508R1
信号规格：24V DC
通道数量：16
信号类型：sinking
机械类型：S800
电气参数
输入电压范围：“0”信号为-30..+5 V，“1”信号为15..30 V
输入阻抗：3.5 kΩ
额定绝缘电压：50 V
介电测试电压：500 V a.c.
功耗：典型值1.8 W
5V模块总线电流消耗：50 mA
通道特性
通道分组：16个数字输入通道分为两个独立隔离的组，每组8个通道，且每组有一个电压监控输入。
过滤时间：数字滤波时间可选，有2、4、8、16 ms。
状态指示
前面板LED：包括故障（F）、运行（R）、警告（W）以及1-16通道状态指示灯（“0”或“1”）。
机械特性
尺寸：102mm×119mm×45mm
重量：约0.2kg
工作环境
工作温度：0至+55°C（部分认证为+5至+55°C）
存储温度：-40至+70°C
污染等级：2级（IEC 60664-1）
腐蚀防护：符合ISA-S71.04:G3标准
The ABB DI810 3BSE008508R1 is a digital input module that is part of the ABB S800 I/O system.Product details are as follows:
Basic Information
Product Number:3BSE008508R1
Signal Specifications:24V DC
Number of Channels:16
Signal Type:Sinking
Mechanical Type:S800
Electrical Parameters
Input Voltage Range:”0″Signal:-30 to+5 V,”1″Signal:15 to 30 V
Input Impedance:3.5 kΩ
Rated Insulation Voltage:50 V
Dielectric Test Voltage:500 V AC
Power Consumption:Typical 1.8 W
5V Module Bus Current Consumption:50 mA
Channel Characteristics
Channel Grouping:The 16 digital input channels are divided into two independently isolated groups of 8 channels each,with one voltage monitoring input per group.
Filtering Time:Digital filter times are selectable:2,4,8,or 16 ms.
Status Indicators
Front Panel LEDs:Includes Fault(F),Run(R),Warning(W),and Channel 1-16 status indicators(“0″or”1”).
Physical Characteristics
Dimensions:102mm×119mm×45mm
Weight:Approximately 0.2kg
Operating Environment
Operating Temperature:0 to+55°C(+5 to+55°C with some certifications)
Storage Temperature:-40 to+70°C
Pollution Degree:Degree 2(IEC 60664-1)
Corrosion Protection:Complies with ISA-S71.04:G3
