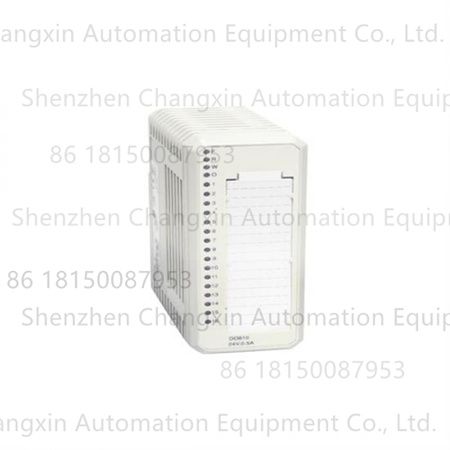

ABB DO810是一款专为工业自动化场景设计的数字输出模块，隶属于ABB S800 I/O系统，核心适配24V DC电源且具备16路输出通道。以下是其详细产品信息：
一、基本参数
通道配置：16个独立数字输出通道，采用分组隔离设计（16通道为1个隔离组）。
电源规格：额定工作电压24V DC，允许波动范围±10%（即21.6V DC-26.4V DC）。
输出能力：每通道最大持续输出电流0.5A，单个隔离组最大总电流4A（需注意通道间电流分配）。
物理规格：尺寸约为195mm（长）×45mm（宽）×130mm（高），重量约0.3kg，适配标准DIN导轨安装。
环境适应性：工作温度0℃至+55℃，存储温度-40℃至+70℃；相对湿度5%至95%（无冷凝）；污染等级2级（符合IEC 60664-1），防护等级IP20。
二、核心电气特性
输出性能：输出信号“1”时，电压降≤0.8V（满载状态）；信号“0”时，漏电流≤0.5mA，确保低功耗与信号稳定性。
保护机制：每通道具备短路保护与过热保护，短路电流触发后约100ms启动保护，故障解除后可自动恢复，无需手动复位。
开关频率：阻性负载下无固定限制（按需配置）；感性负载最大0.5Hz；灯负载（≤5W）最大11Hz，适配不同类型执行器。
布线支持：屏蔽电缆最长支持1000m，非屏蔽电缆最长600m，满足工业现场长距离布线需求。
三、产品功能特点
隔离与抗干扰：隔离组与背板间采用光耦隔离，内置EMC滤波组件，能抵御工业环境中的电磁干扰，符合IEC 61000-6-2抗干扰标准。
状态可视化：每个输出通道配备黄色LED指示灯，输出“1”时点亮、“0”时熄灭，可直观判断通道工作状态；模块整体设故障（F）、运行（R）指示灯，便于快速排查问题。
故障安全设计：支持“输出预设状态（OSP）”功能，当模块与控制器通信中断时，输出可自动切换至预设的安全状态（如全“0”或保持当前值），降低设备误动作风险。
便捷维护：支持热插拔操作，更换模块时无需断电或重新接线，减少系统停机时间；配置参数可通过ABB System 800xA软件统一管理，操作界面简洁。
四、典型应用场景
主要用于工业自动化控制系统中，驱动低功率执行器，常见应用包括：
控制继电器、小型电磁阀、指示灯等设备。
适配ABB AC800M、Advant Controller等控制器，应用于石油化工、电力、水处理、智能制造等领域的过程控制或设备联动场景。
The ABB DO810 is a digital output module designed specifically for industrial automation scenarios.It’s part of the ABB S800 I/O system and features a 24V DC core power supply and 16 output channels.The following is detailed product information:
I.Basic Parameters
Channel Configuration:16 independent digital output channels,using grouped isolation(16 channels form one isolation group).
Power Supply Specifications:Rated operating voltage 24V DC,with a±10%tolerance(i.e.,21.6V DC-26.4V DC).
Output Capacity:Maximum continuous output current per channel 0.5A,maximum total current per isolation group 4A(note current distribution between channels).
Physical Specifications:Approximately 195mm(length)×45mm(width)×130mm(height),weighs approximately 0.3kg,and is compatible with standard DIN rail mounting.Environmental Adaptability:Operating temperature:0°C to+55°C,storage temperature:-40°C to+70°C;relative humidity:5%to 95%(non-condensing);pollution degree:2(complying with IEC 60664-1),protection level:IP20.
II.Core Electrical Characteristics
Output Performance:When the output signal is”1″,the voltage drop is≤0.8V(at full load);when the signal is”0″,the leakage current is≤0.5mA,ensuring low power consumption and signal stability.
Protection Mechanism:Each channel has short-circuit protection and overheating protection.Protection activates approximately 100ms after a short-circuit current is triggered and automatically recovers after the fault is resolved,eliminating the need for manual reset.
Switching Frequency:Unlimited for resistive loads(configurable on demand);maximum 0.5Hz for inductive loads;maximum 11Hz for lamp loads(≤5W),compatible with different actuator types.Wiring Support:Shielded cables support up to 1000m,and unshielded cables support up to 600m,meeting the long-distance wiring requirements of industrial sites.
III.Product Features
Isolation and Interference Immunity:Optocouplers are used between the isolation group and the backplane,and built-in EMC filtering components provide immunity to electromagnetic interference in industrial environments,complying with the IEC 61000-6-2 interference immunity standard.
Status Visualization:Each output channel is equipped with a yellow LED indicator,which illuminates when the output is”1″and off when it is”0,”providing a visual indicator of the channel’s operating status.Fault(F)and Run(R)indicators are also provided throughout the module for quick troubleshooting.
Fail-Safe Design:Supports the”Output Preset State(OSP)”function.When communication between the module and the controller is lost,the output automatically switches to a preset safe state(such as all”0″or maintains the current value),reducing the risk of device malfunction.Convenient Maintenance:Hot-swappable operation allows module replacement without powering down or rewiring,reducing system downtime.Configuration parameters can be centrally managed through ABB System 800xA software,offering a simple user interface.
IV.Typical Application Scenarios
It is primarily used in industrial automation control systems to drive low-power actuators.Common applications include controlling relays,small solenoid valves,indicator lights,and other devices.
Compatible with controllers such as the ABB AC800M and Advant Controller,it is suitable for process control or equipment linkage scenarios in the petrochemical,power,water treatment,and smart manufacturing industries.
