描述

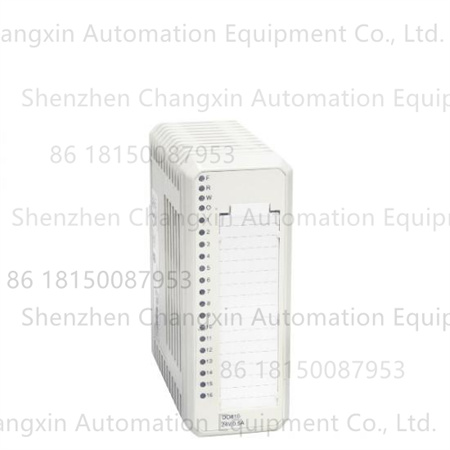

ABB DO810 3BSE008510R1是一款数字输出模块，属于ABB S800 I/O系列。以下是其产品详情：
基本信息
品牌：ABB
型号：DO810
产品编号：3BSE008510R1
原产国：瑞典
产品类型：数字输出模块
重量：约0.2kg
技术参数
输出通道：16通道
输出电压：24VDC（12-32VDC）
输出电流：每通道最大连续输出电流为0.5A
输出类型：电流源型
隔离方式：组间隔离，与地隔离
额定绝缘电压：50V
介电测试电压：500VAC
功耗：典型值2.1W
电流消耗（+5V模块总线）：80mA
最大现场电缆长度：600米
工作温度范围：0℃至+55℃
存储温度范围：-40℃至+70℃
功能特点
多通道输出：具备16个数字输出通道，可同时控制多个执行器，满足工业自动化场景中的多样化控制需求。
隔离设计：输出分为两个独立隔离的8通道组，提高了系统的抗干扰能力和安全性。
保护功能：具有短路、过压、过热保护以及接地和30V短路保护功能，确保模块和连接设备的安全运行。
状态指示：模块前端设有LED指示灯，可直观显示输出状态，便于用户进行实时监测和故障排查。
故障检测：每组输出都有电压监控输入，增强了诊断能力和故障检测功能，当电压消失时，过程电压监控输入会给出通道错误信号，错误信号可通过模块总线读取。
The ABB DO810 3BSE008510R1 is a digital output module that belongs to the ABB S800 I/O series.The following are product details:
Basic Information
Brand:ABB
Model:DO810
Product Number:3BSE008510R1
Country of Origin:Sweden
Product Type:Digital Output Module
Weight:Approximately 0.2kg
Technical Parameters
Output Channels:16
Output Voltage:24VDC(12-32VDC)
Output Current:Maximum continuous output current per channel is 0.5A
Output Type:Current Source
Isolation:Group-to-group isolation,isolation from ground
Rated Insulation Voltage:50V
Dielectric Test Voltage:500VAC
Power Consumption:Typical 2.1W
Current Draw(+5V Module Bus):80mA
Maximum Field Cable Length:600m
Operating Temperature Range:0°C to+55°C
Storage Temperature Range:-40°C to+70°C
Features
Multi-channel Output:Equipped with 16 digital output channels,it can simultaneously control multiple actuators,meeting the diverse control needs of industrial automation scenarios.Isolation Design:The output is divided into two independently isolated 8-channel groups,improving the system’s anti-interference capabilities and safety.
Protection:Short-circuit,overvoltage,overtemperature,as well as ground fault and 30V short-circuit protection ensure safe operation of the module and connected devices.
Status Indicator:An LED indicator on the front of the module provides intuitive output status,facilitating real-time monitoring and troubleshooting.
Fault Detection:Each output group has a voltage monitoring input,enhancing diagnostic capabilities and fault detection.When voltage drops,the process voltage monitoring input generates a channel error signal,which can be read via the module bus.
