描述

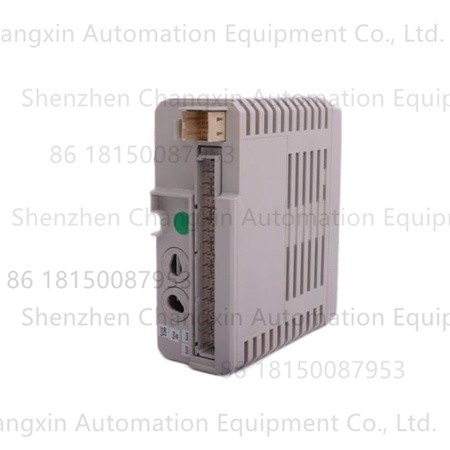

ABB DO880是一款适用于System 800xA系统的数字输出模块，以下是其产品详情：
基本参数
通道数量：16通道。
输出电压：24V DC。
输出电流：每个通道的最大连续输出电流为0.5A。
隔离方式：16个通道组成一个隔离组，与地面分组隔离。
额定绝缘电压：50V。
绝缘测试电压：500V AC。
电流消耗：+5V模块总线为45mA，外部+24V电流消耗为10mA。
最大现场电缆长度：600米。
功能特点
保护功能：每个输出通道都配有限流和热保护高压侧驱动器，可防止短路和过温情况，确保输出稳定可靠。此外，模块还配有EMC保护元件、电感负载抑制和模块总线隔离屏障，增强了系统抗扰性和安全性。
监控诊断：支持环路监控，能够监控短路和开路负载，且限值可配置。同时提供无脉冲输出开关诊断和先进的板载诊断功能，帮助及时发现和解决问题。
状态指示：配备LED输出状态指示灯，可显示通道的活动或错误状态，便于直观了解模块工作情况。
认证情况：通过了IEC 61508的SIL3认证以及EN 954-1的4类认证，具有高安全性和可靠性。
配置模式：支持冗余或单一配置，对于ND（常断电）系统，即使输出驱动器存在误差，仍可对输出进行控制。正常通电通道还具有降级模式（从DO880 PR:G开始支持）。
The ABB DO880 is a digital output module for System 800xA.Product details are as follows:
Basic Parameters
Number of Channels:16.
Output Voltage:24V DC.
Output Current:Maximum continuous output current per channel is 0.5A.
Isolation:16 channels are grouped together,isolated from ground.
Rated Isolation Voltage:50V.
Insulation Test Voltage:500V AC.
Current Draw:45mA from the+5V module bus and 10mA from an external+24V supply.
Maximum Field Cable Length:600m.
Features
Protection:Each output channel features a current-limiting and thermally protected high-side driver to protect against short circuits and overtemperature conditions,ensuring stable and reliable output.Additionally,the module is equipped with EMC protection components,inductive load suppression,and a module bus isolation barrier,enhancing system noise immunity and safety.Monitoring and Diagnostics:Supports loop monitoring,capable of monitoring short-circuit and open-circuit loads with configurable limits.It also provides pulseless output switching diagnostics and advanced onboard diagnostics to help promptly identify and resolve problems.
Status Indication:LED output status indicators display channel activity or error status,providing intuitive visibility into module operation.
Certification:Certified to SIL3 under IEC 61508 and Category 4 under EN 954-1,it offers high safety and reliability.
Configuration Mode:Supports redundant or single configurations.For ND(normally powered-off)systems,output control remains active even if output driver errors occur.Normally powered channels also feature a degraded mode(supported starting with the DO880 PR:G).
