描述
产品概述

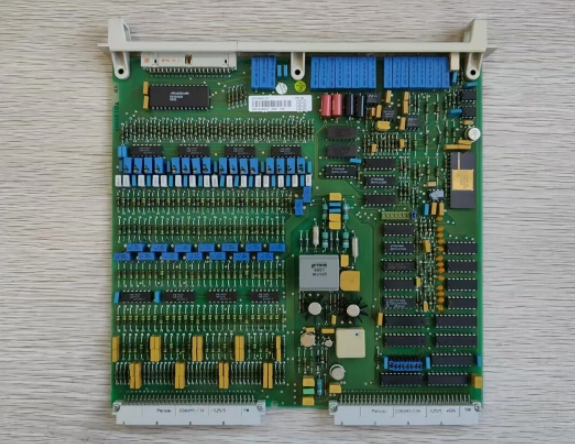

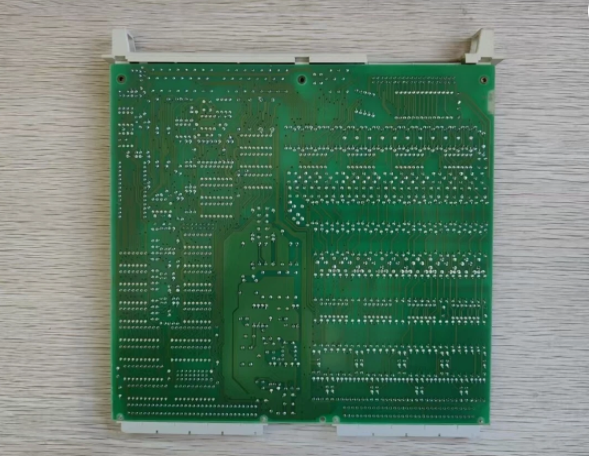

DSAI130D 3BSE003127R1是ABB控制系统中的模拟输入模块，属于S100 I/O系列。其核心功能是将模拟信号（如电压、电流、热电偶、电阻信号）转换为数字信号，支持工业自动化、过程控制、能源管理等场景的高精度数据采集与实时监控。
核心功能与技术特点
1.技术参数
输入通道：16通道模拟输入，支持差分输入（±10V、±10mA）。
分辨率：12位分辨率（部分资料提到16位，需以实际型号为准）。
转换时间：0.03%精度，转换时间20ms，支持4组滤波时间（10Hz、30Hz、100Hz、300Hz）。
通信接口：支持PROFIBUS DP（部分资料提及Modbus、TCP/IP）。
电源：24V DC，输入电流≤5mA，输出电流≤0.5A。
尺寸与重量：365mm（长）×261mm（宽）×20mm（高），重量0.475kg。
工作温度：-40°C至70°C，适应恶劣工业环境。
2.功能优势
高精度与稳定性：采用先进模数转换技术，确保信号采集的准确性与抗干扰能力。
多通道设计：16通道可同时处理多路模拟信号，适用于复杂控制系统。
模块化兼容性：无缝集成至ABB控制系统（如Advant®Master S100），支持灵活扩展。
实时性与可靠性：支持快速数据传输与远程诊断，降低维护成本。
Product Overview
DSAI130D 3BSE003127R1 is an analog input module in the ABB control system and belongs to the S100 I/O series.Its core function is to convert analog signals(such as voltage,current,thermocouple,resistance signals)into digital signals,and support high-precision data acquisition and real-time monitoring in industrial automation,process control,energy management and other scenarios.
Core functions and technical features
1.Technical parameters
Input channel:16-channel analog input,support differential input(±10V,±10mA).
Resolution:12-bit resolution(some data mention 16-bit,and the actual model shall prevail).
Conversion time:0.03%accuracy,conversion time 20ms,supports 4 sets of filtering times(10Hz,30Hz,100Hz,300Hz).
Communication interface:Supports PROFIBUS DP(some information mentions Modbus,TCP/IP).
Power supply:24V DC,input current≤5mA,output current≤0.5A.
Dimensions and weight:365mm(Length)×261mm(Width)×20mm(Height),weight 0.475kg.
Operating temperature:-40°C to 70°C,adapt to harsh industrial environments.
2.Functional Advantages
High precision and stability:Adopt advanced analog-to-digital conversion technology to ensure the accuracy of signal acquisition and anti-interference ability.
Multi-channel design:16 channels can process multiple analog signals simultaneously,suitable for complex control systems.
Modular compatibility:seamlessly integrated into ABB control systems such as Advant®Master S100,enabling flexible expansion.
Real-time and reliability:supports fast data transmission and remote diagnosis to reduce maintenance costs.
