描述

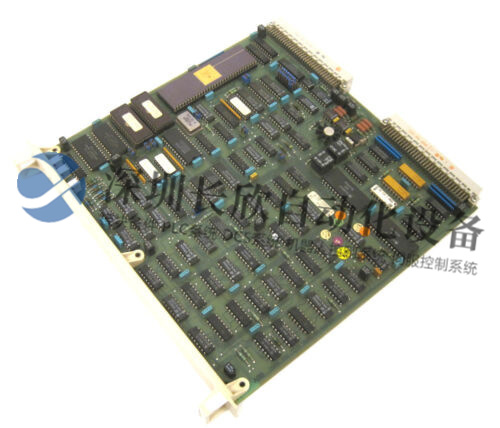

ABB DSCS117是一款主通信板，以下是其产品详情：
基本信息
品牌：ABB。
型号：DSCS117。
产品类型：通信板。
重量：约150g。
技术参数
接口类型：9针D-sub插座。
传输标准：符合EIA RS-485（依据IEC 61158/61784），无电位。
传输协议：Profibus DP。
传输速率：9.6kbit/s至12Mbit/s。
产品特点
通信速率可设置：支持拨码开关手动设置其全部标准速率或者速率自适应。
状态指示清晰：配备6个双色LED状态指示灯，可直观显示设备运行状态。
防护性能好：提供电接口4000V的防雷，1.5A过流，600W浪涌保护。
电源设计可靠：具备DC9-36V宽冗余双电源，DC1500V电源隔离，反接保护。
应用领域
造纸、电厂、钢厂等行业：可用于这些行业的DCS控制系统中，实现设备之间的通信和数据传输。
The ABB DSCS117 is a main communication board.The following are its product details:
Basic Information
Brand:ABB.
Model:DSCS117.
Product Type:Communication Board.
Weight:Approximately 150g.
Technical Parameters
Connector Type:9-pin D-sub socket.
Transmission Standard:Complies with EIA RS-485(according to IEC 61158/61784),potential-free.
Transmission Protocol:Profibus DP.
Transmission Rate:9.6 kbit/s to 12 Mbit/s.
Product Features
Configurable Communication Rate:Supports manual setting of all standard rates or adaptive rate using a DIP switch.
Clear Status Indicator:Equipped with six dual-color LED status indicators,the device’s operating status is intuitively displayed.
Excellent Protection:Provides 4000V lightning protection,1.5A overcurrent protection,and 600W surge protection for the electrical interface.Reliable power supply design:Features DC9-36V wide redundant dual power supplies,DC1500V power isolation,and reverse polarity protection.
Applications:Suitable for use in DCS control systems in industries such as papermaking,power plants,and steel mills,enabling communication and data transmission between devices.
