描述

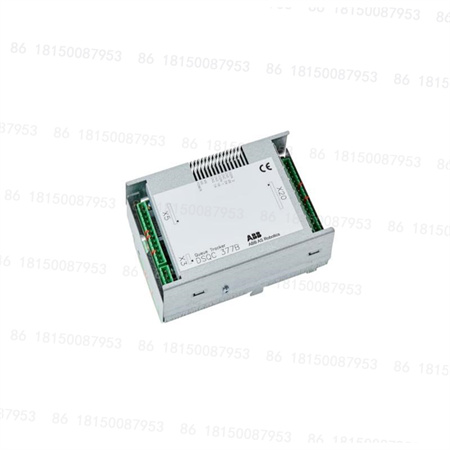

ABB DSQC 377B是一款输送链跟踪单元，主要用于处理机器人输送链跟踪功能的同步开关与编码器信号。以下是其产品详情：
基本信息
品牌：ABB
型号：DSQC 377B
部件号：3HNE01586-1
产品净重：0.48kg
产品净长：170mm
产品净高：55mm
产品净宽：120mm
技术规格
通信接口：DeviceNet接口，通过该接口与机器人控制系统进行通信。
电源接口：X3为供电电源接口，其中1脚为0V，5脚为24V。
信号接口：X20为连接同步开关和编码器的端子，1脚为24V，2脚为0V，3脚为编码器24V电源接线端，4脚为编码器0V电源接线端，5脚为编码器A相接线端，6脚为编码器B相接线端，7脚为同步传感器24V接线端，8脚为同步传感器0V接线端，9脚为同步传感器信号接线端。
产品特点
功能专一：专注于输送链跟踪功能，能精准处理同步开关与编码器信号，确保机器人与输送链的动作同步。
兼容性好：DSQC 377A和DSQC 377B完全兼容，方便用户进行升级或更换部件。
安装便捷：接口定义清晰，便于安装和接线，能够快速集成到机器人自动化生产线中。
The ABB DSQC 377B is a conveyor chain tracking unit primarily used to process synchronous switch and encoder signals for conveyor chain tracking functions in robots.Product details are as follows:
Basic Information
Brand:ABB
Model:DSQC 377B
Part Number:3HNE01586-1
Net Weight:0.48kg
Net Length:170mm
Net Height:55mm
Net Width:120mm
Technical Specifications
Communication Interface:DeviceNet interface for communication with the robot control system.
Power Interface:X3 is the power supply interface,with pin 1 being 0V and pin 5 being 24V.Signal Interface:X20 is for connecting the synchronization switch and encoder.Pin 1 is 24V,pin 2 is 0V,pin 3 is the encoder 24V power supply terminal,pin 4 is the encoder 0V power supply terminal,pin 5 is the encoder phase A terminal,pin 6 is the encoder phase B terminal,pin 7 is the synchronization sensor 24V terminal,pin 8 is the synchronization sensor 0V terminal,and pin 9 is the synchronization sensor signal terminal.
Product Features
Focused Function:Dedicated to conveyor chain tracking,it accurately processes synchronization switch and encoder signals to ensure synchronized movement between the robot and the conveyor chain.
Good Compatibility:The DSQC 377A and DSQC 377B are fully compatible,facilitating user upgrades and component replacements.
Easy Installation:Clearly defined interfaces facilitate installation and wiring,enabling rapid integration into robotic automation production lines.
