一、产品概述

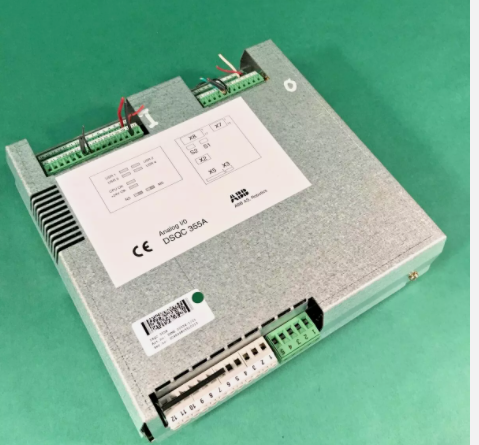

ABB DSQC355A是ABB公司推出的一款模拟量信号输入输出板，属于机器人系列，专为工业自动化控制系统设计。其核心功能是实现高精度模拟量信号的采集、传输与控制，支持多种信号类型（如电压、电流、温度、压力），适用于恶劣工业环境，广泛应用于机器人控制、过程自动化及工业设备集成等领域。
二、核心功能与技术参数
1.信号处理能力
模拟量输入（AI）：4通道，支持电压（0-10V、±10V）和电流（4-20mA）信号输入，精度达±0.1%。
模拟量输出（AO）：4通道，支持电压（0-10V、±10V）和电流（4-20mA）信号输出，精度同样为±0.1%。
信号隔离：输入/输出通道独立隔离，抗干扰能力强，适用于电磁干扰严重的工业场景。
2.环境适应性
工作温度：-25°C至70°C（部分型号扩展至-40°C至85°C）。
防护等级：IP67/IP68（具体以型号为准），防尘防水，适应潮湿、振动等恶劣环境。
3.物理特性
结构形式：模块式设计，支持DeviceNet总线连接。
尺寸与重量：约90×100×81mm，重量0.8公斤（不同配置可能略有差异）。
安装方式：可适配ABB机器人控制柜或工业机架，支持导轨安装。
4.兼容性与扩展性
通信协议：兼容DeviceNet、Profibus等工业总线协议，支持与ABB机器人、PLC及其他自动化设备无缝集成。
扩展功能：可通过DeviceNet总线连接多块DSQC355A模块，实现大规模模拟量信号扩展。
三、典型应用场景
机器人控制
用于机器人运动控制中的模拟量信号处理，如伺服电机转速调节、力矩反馈等。
过程自动化
化工、电力、冶金行业的温度、压力、流量等参数的实时监测与控制。
工业设备集成
与传感器、执行器协同工作，实现高精度数据采集与设备联动。
能源管理
发电厂、变电站中电压、电流信号的采集与保护逻辑执行。
ABB DSQC355A
1.Product Overview
ABB DSQC355A is an analog signal input and output board launched by ABB.It belongs t
o the robot series and is specially designed for industrial automation control systems.Its core function is to realize the acquisition,transmission and control of high-precision analog signals,support a variety of signal types(such as voltage,current,temperature,pressure),is suitable for harsh industrial environments,and is widely used in robot control,process automation,and industrial equipment integration.
2.Core functions and technical parameters
1.Signal processing capability
Analog input(AI):4 channels,supporting voltage(0-10V,±10V)and current(4-20mA)signal input,with an ac
curacy of±0.1%.
Analog output(AO):4 channels,supporting voltage(0-10V,±10V)and current(4-20mA)signal output,with the same accuracy as±0.1%.
Signal isolation:Independent isolation of input/output channels,strong anti-interference ability,suitable for industrial scenarios with severe electromagnetic interference.
2.Environmental adaptability
Operating temperature:-25°C to 70°C(some models are extended to-40°C to 85°C).
Protection level:IP67/IP68(specifically,depending on the model),dust-proof and water-proof,adapting to harsh environments such as humidity and vibration.
3.Physical characteristics
Structural form:modular design,supporting DeviceNet bus connection.
Dimensions and weight:about 90×100×81mm,weight 0.8 kg(different configurations may vary slightly).
Installation method:It can be adapted to ABB robot control cabinet or industrial rack,and supports rail installation.
4.Compatibility and Extensibility
Communication protocol:Compatible with industrial bus protocols such as DeviceNet and Profibus,and supports seamless integration with ABB robots,PLCs and other automation equipment.
Extended function:Multiple DSQC355A modules can be connected through the DeviceNet bus to realize large-scale analog signal expansion.
3.Typical application scenarios
Robot control
It is used for analog signal processing in robot motion control,such as servo motor speed adjustment,torque feedback,etc.
Process automation
Real-time monitoring and control of temperature,pressure,flow and other parameters in the chemical,electric power and metallurgy industries.
Industrial equipment integration
Works in coordination with sensors and actuators to achieve high-precision data acquisition and equipment linkage.
Energy Management
The acquisition and protection logic of voltage and current signals in power plants and substations is performed.
