产品概述

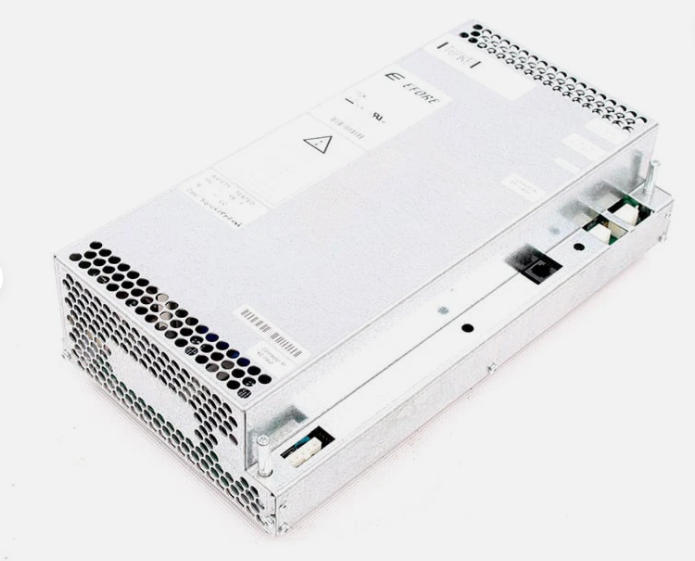

ABB DSQC626是一款工业自动化电源模块，专为ABB机器人控制系统设计，主要用于为控制器提供稳定直流电源，并集成过流、过压保护及滤波功能。其核心功能包括：
电源供应：为机器人控制器提供24V直流电压，确保系统稳定运行。
保护机制：内置过流保护和过压保护，防止因电流或电压异常损坏设备。
滤波处理：对输入电源进行滤波，减少噪声干扰，提升信号质量。
技术参数
电气规格
输入电压：200-480VAC（50/60Hz）
输出电压：24VDC
最大输出电流：10A
功率消耗：7W（典型值）
效率：未明确标注，但符合工业电源高能效标准。
物理特性
尺寸：
净尺寸：355mm（长）×200mm（高）×83mm（宽）
毛重：4.7kg
防护等级：未明确标注，但设计适用于工业环境（参考同类产品IP 20）。
环境适应性
工作温度：-20°C至+60°C（需结合控制柜散热设计）。
湿度范围：0-95%（无凝露）。
核心功能特点
高可靠性
采用工业级元器件，适应高温、高湿、强电磁干扰环境。
支持冗余电源输入（部分型号），确保系统连续运行。
模块化设计
易于安装和维护，兼容ABB机器人控制柜标准接口。
可与其他模块（如DSQC652信号板、DSQC663高压电源板）协同工作。
安全防护
符合EN 61000-4-2（静电放电抗扰度）和EN 61000-4-5（浪涌抗扰度）标准。
内置电流隔离和电压调节电路，防止短路或过载。
兼容性
适用于ABB IRC5控制器系列，支持与DSQC639主计算机板、DSQC652数字I/O板等组件集成。
Product Overview
ABB DSQC626 is an industrial automation power module designed for ABB robot control system.It is mainly used to provide a stable DC power supply to the controller and integrate overcurrent,overvoltage protection and filtering functions.Its core functions include:
Power supply:Provides 24V DC voltage to the robot controller to ensure stable operation of the system.
Protection mechanism:Built-in overcurrent protection and overvoltage protection to prevent damage to the equipment due to current or voltage abnormalities.
Filtering:Filter the input power supply to reduce noise interference and improve signal quality.
Technical parameters
Electrical specifications
Input voltage:200-480VAC(50/60Hz)
Output voltage:24VDC
Maximum output current:10A
Power consumption:7W(typical)
Efficiency:Not clearly marked,but it meets the high-energy-efficiency standards of industrial power supplies.
Physical characteristics
size:
Net size:355mm(Length)×200mm(Height)×83mm(Width)
Gross weight:4.7kg
Protection level:Not explicitly marked,but the design is suitable for industrial environments(see IP 20 of similar products).
Environmental adaptability
Operating temperature:-20°C to+60°C(requires combined with the control cabinet heat dissipation design).
Humidity range:0-95%(no condensation).
Core functional features
High reliability
It adopts industrial-grade components to adapt to high temperature,high humidity and strong electromagnetic interference environments.
Supports redundant power input(some models)to ensure continuous operation of the system.
Modular design
Easy to install and maintain,compatible with ABB robot control cabinet standard interface.
It can work in coordination with other modules(such as DSQC652 signal board,DSQC663 high voltage power board).
Safety protection
Comply with EN 61000-4-2(electrostatic discharge immunity)and EN 61000-4-5(surge immunity).
Built-in galvanic isolation and voltage regulation circuit to prevent short circuit or overload.
compatibility
Suitable for ABB IRC5 controller series,it supports integration with DSQC639 main computer board,DSQC652 digital I/O board and other components.
