描述

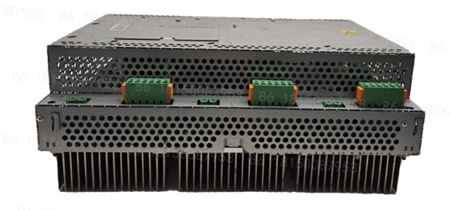

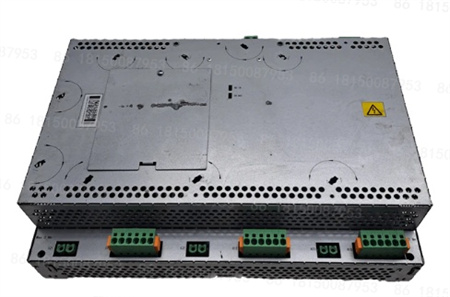

ABB DSQC663是一款应用于工业自动化领域的驱动单元，部件号为3HAC029818-001。以下是其产品详情：
电气参数
输入电压范围：200V-480V AC（三相）
输出功率：支持大连续电流20A（具体因型号配置而异）
通信接口：68针I/O连接器
物理特性
尺寸：约200mm（宽）×150mm（高）×100mm（深）
重量：约2.5kg
防护等级：IP20
功能特点
控制方式：支持位置、速度、转矩三闭环控制，定位精度±0.01mm，重复定位精度±0.005mm。
动态响应：动态响应时间≤1ms，满足高速点焊、喷涂等场景需求。
通信协议：支持Ethernet/IP、Profinet协议，兼容西门子、罗克韦尔等主流PLC。
智能诊断：内置LED指示灯，实时显示驱动器状态，支持ABB RobotStudio软件远程监控与参数配置。
工作温度范围：-10℃至+50℃。
The ABB DSQC663 is a drive unit for industrial automation applications,part number 3HAC029818-001.The following are product details:
Electrical Parameters
Input Voltage Range:200V-480V AC(three-phase)
Output Power:Supports a maximum continuous current of 20A(varies by model configuration)
Communication Interface:68-pin I/O connector
Physical Characteristics
Dimensions:Approximately 200mm(width)×150mm(height)×100mm(depth)
Weight:Approximately 2.5kg
Protection Rating:IP20
Functional Features
Control Mode:Supports three closed-loop control of position,speed,and torque,with positioning accuracy of±0.01mm and repeatability of±0.005mm.
Dynamic Response:Dynamic response time≤1ms,meeting the requirements of high-speed spot welding,spray painting,and other applications.
Communication Protocol:Supports Ethernet/IP and Profinet protocols,and is compatible with mainstream PLCs such as Siemens and Rockwell.Intelligent Diagnostics:Built-in LED indicators display real-time drive status and support remote monitoring and parameter configuration using ABB RobotStudio software.
Operating temperature range:-10°C to+50°C.
