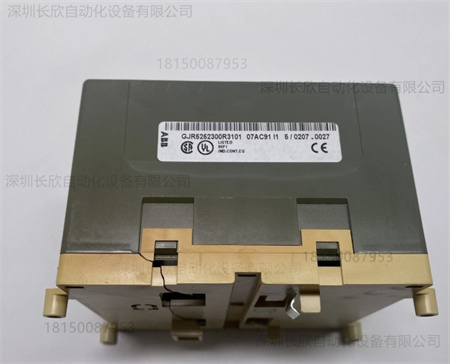

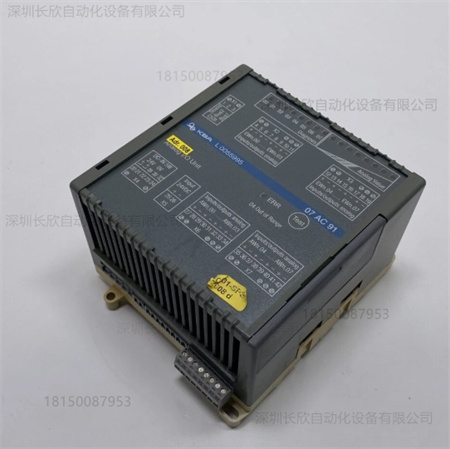

描述
1.核心技术参数
通道配置：16个模拟通道，支持两种工作模式：
12位模式：8个输入通道（±10V或0-20mA，12位分辨率）+8个输出通道（±10V或0-20mA，12位分辨率）。
8位模式：16个通道（成对配置为输入或输出，0-10V或0-20mA，8位分辨率）。
信号处理：内置模数/数模转换，支持电压和电流信号直接接入，输入阻抗≥100kΩ（电压）或330Ω（电流）。
供电与功耗：24V DC供电，最大功耗5W，工作温度范围0-55℃。
通信接口：通过CS31系统总线连接，支持Modbus协议（需结合AC800M控制器实现）。
诊断功能：17个LED指示灯，实时显示通道状态、错误信息及信号强度。
2.应用领域
工业自动化：生产线中的温度、压力、流量等参数监测与控制。
过程控制：化工、石油、制药等行业的连续生产过程优化。
能源管理：电力系统中的电压、电流信号采集与分析。
楼宇自动化：HVAC系统、照明控制等。
3.安装与配置

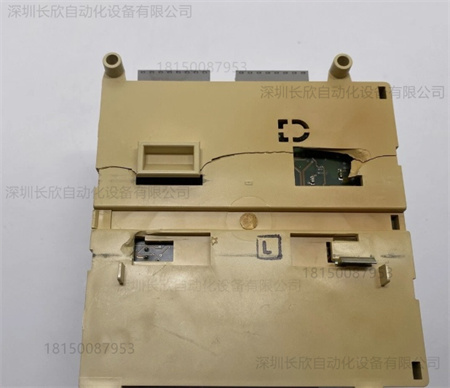

物理安装：支持DIN导轨或螺丝固定，模拟线缆最大长度100米（需屏蔽双绞线）。
DIP开关设置：通过模块右侧的DIP开关配置通道模式、地址及信号类型。
隔离设计：CS31总线与模拟电路电气隔离，增强抗干扰能力。
.1.Core Technical Parameters
Channel Configuration:16 analog channels,supporting two operating modes:
12-bit Mode:8 input channels(±10V or 0-20mA,12-bit resolution)+8 output channels(±10V or 0-20mA,12-bit resolution).
8-bit Mode:16 channels(configured in pairs as input or output,0-10V or 0-20mA,8-bit resolution).
Signal Processing:Built-in analog-to-digital/digital-to-analog conversion,supports direct input of voltage and current signals,input impedance≥100kΩ(voltage)or 330Ω(current).
Power Supply and Power Consumption:24V DC power supply,maximum power consumption 5W,operating temperature range 0-55°C.
Communication Interface:Connects via the CS31 system bus,supports Modbus protocol(requires integration with the AC800M controller).Diagnostic Functions:17 LED indicators display channel status,error messages,and signal strength in real time.
2.Applications
Industrial Automation:Monitoring and controlling parameters such as temperature,pressure,and flow in production lines.
Process Control:Optimizing continuous production processes in industries such as chemical,petroleum,and pharmaceuticals.
Energy Management:Acquisition and analysis of voltage and current signals in power systems.
Building Automation:HVAC systems,lighting control,etc.
3.Installation and Configuration
Physical Installation:Supports DIN rail or screw mounting.Maximum analog cable length is 100 meters(shielded twisted pair required).
DIP Switch Settings:Channel mode,address,and signal type are configured using the DIP switches on the right side of the module.
Isolation Design:The CS31 bus is electrically isolated from the analog circuitry,enhancing interference immunity.
