描述

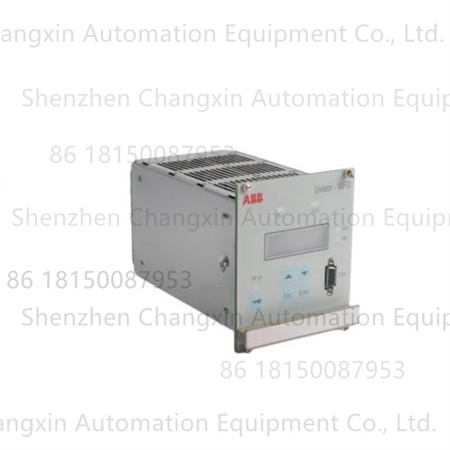

ABB EC-BOM-G009HLA005是UVISOR MFD系列中的一款燃料火焰检测控制单元，主要用于工业和大型电站锅炉的火焰信号处理。以下是其产品详情：
基本信息
品牌：ABB
型号：EC-BOM-G009HLA005
类型：燃料火焰检测控制单元
原产国：瑞典
重量：约1.26kg
尺寸：10.5x19x12.8cm
功能特点
双通道设计：具有两个完全独立的放大器通道，能同时处理两个火焰检测探头发出的火焰信号，每个通道可以组态两种不同方法检测火焰，如闪烁频率接收器、脉冲计数接收器。
参数独立调整：任一通道的参数都可以独立地调整，每一通道都可以设置多达四套参数，在燃烧器/锅炉运行时，可由BMS（燃烧器管理系统）自动选择最佳参数。
多种通信接口：通过RS232接口可连接本地监控站，实现在线实时显示火焰信号趋势、浏览和上传下载参数、下载更新硬件版本等功能；多个MFD可通过RS485网络连接到远程SCADA上，基于工业标准MODBUS协议。
安全可靠：硬件和软件具有安全特性和不间断的自诊断功能，保证锅炉燃烧控制的安全和可靠；符合EN 61010-1等安全规范，绝缘性能良好。
其他功能：提供独立的模拟量输出，可检测火焰质量；有一个热电偶输入和相关报警输出，用于测量、保护，防止探头热端过热；配备多种语言液晶图象显示器，提供友好的命令选择菜单。
技术参数
工作温度：0°C至60°C
贮存和运输温度：-25°C至85°C
相对湿度：40%，RH 93%
抗震性：频率范围5-150Hz，加速度10m/s²峰值恒定
抗冲击性：加速度15G，脉冲持续时间11ms，每个方向三冲击
The ABB EC-BOM-G009HLA005 is a fuel flame detection control unit in the UVISOR MFD series,primarily used for flame signal processing in industrial and large power plant boilers.The following are product details:
Basic Information
Brand:ABB
Model:EC-BOM-G009HLA005
Type:Fuel Flame Detection Control Unit
Country of Origin:Sweden
Weight:Approximately 1.26 kg
Dimensions:10.5 x 19 x 12.8 cm
Features
Dual-Channel Design:Features two completely independent amplifier channels,capable of simultaneously processing flame signals from two flame detection probes.Each channel can be configured with two different flame detection methods,such as a flicker frequency receiver or a pulse counting receiver.
Independent Parameter Adjustment:Parameters for each channel can be adjusted independently,with up to four parameter settings per channel.The BMS(Burner Management System)automatically selects the optimal parameters during burner/boiler operation.Multiple Communication Interfaces:The RS232 interface allows connection to a local monitoring station,enabling real-time online display of flame signal trends,parameter browsing and uploading and downloading,and hardware version updates.Multiple MFDs can be connected to a remote SCADA system via an RS485 network,based on the industry-standard MODBUS protocol.
Safe and Reliable:The hardware and software incorporate safety features and continuous self-diagnostics to ensure safe and reliable boiler combustion control.Complying with safety regulations such as EN 61010-1,the system boasts excellent insulation performance.
Other Features:An independent analog output is provided for flame quality monitoring;a thermocouple input and associated alarm outputs are provided for measurement and protection against overheating of the probe’s hot end;and a multi-language LCD graphical display provides a user-friendly command selection menu.Technical Specifications
Operating Temperature:0°C to 60°C
Storage and Transport Temperature:-25°C to 85°C
Relative Humidity:40%,RH 93%
Vibration Resistance:Frequency range 5-150Hz,acceleration 10m/s²peak constant
Shock Resistance:15G acceleration,pulse duration 11ms,three shocks per direction
