描述
ABB FENA-11产品的详细信息，综合多篇相关技术文档及产品手册整理而成：
一、基本信息

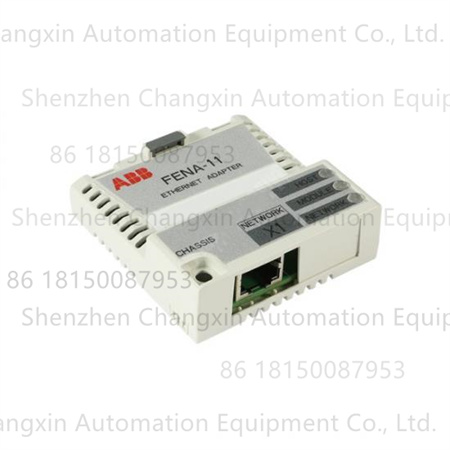

型号：FENA-11
类型：以太网适配器模块
品牌：ABB
兼容设备：ACS355、ACSM1、ACS850、ACQ810、ACS880、ACS580等系列变频器。
通信接口：1个RJ-45以太网端口。
二、功能特点
多协议支持
-PROFINET IO：支持DP-V1协议及PROFIdrive配置文件，适用于工业自动化网络集成。
-EtherNet/IP：兼容ODVA AC/DC Drive和ABB变频器配置文件，支持显式与隐式报文传输。
-Modbus TCP：支持标准读写寄存器功能代码，适配多种工业控制系统。
透明传输模式
-提供16位和32位字的透明数据传输模式，简化非标准协议的数据交互。
高性能与兼容性
-即插即用设计，支持快速安装与配置。
-通过参数设置切换通信协议，适应不同场景需求。
三、技术参数
项目参数
端口数量1端口（RJ-45）
协议支持PROFINET IO、EtherNet/IP、Modbus TCP
供电要求通过变频器电源供电（具体参考设备手册）
物理接口20芯连接器（自动连接电源与信号）
尺寸与重量标准工业模块尺寸（约11×1×1厘米，1千克）
四、安装与配置
机械安装
-将模块插入变频器的选项插槽，固定锁扣并拧紧螺丝（扭矩0.8 N·m）。
-确保屏蔽层接地以增强抗干扰能力。
参数设置
-通过变频器控制程序启用模块（参数50.01设为“Enable”）。
-配置IP地址、子网掩码及协议类型（如PROFINET需设置索引51.02）。
网络调试
-通过浏览器访问模块IP地址，输入MAC地址后六位（大写无连字符）作为密码登录配置界面。
五、安全注意事项
操作资质：仅允许具备资质的电气工程师进行安装与维护。
断电操作：安装前需断开电源并等待至少5分钟放电，避免触电风险。
环境要求：避免高温、高湿环境，确保散热与防护措施到位。
Detailed information of ABB FENA-11 products,compiled by combining multiple relevant technical documents and product manuals:
1.Basic information
Model:FENA-11
Type:Ethernet Adapter Module
Brand:ABB
Compatible devices:ACS355,ACSM1,ACS850,ACQ810,ACS880,ACS580 and other series of inverters.
Communication interface:1 RJ-45 Ethernet port.
2.Functional characteristics
Multi-protocol support
-PROFINET IO:Supports DP-V1 protocol and PROFIdrive configuration files,suitable for industrial automation network integration.
-EtherNet/IP:Compatible with ODVA AC/DC Drive and ABB inverter configuration files,supporting explicit and implicit message transmission.
-Modbus TCP:Supports standard read and write register function codes,and is adapted to a variety of industrial control systems.
Transparent transmission mode
-Provides transparent data transmission modes of 16-bit and 32-bit words to simplify data interactions in non-standard protocols.
High performance and compatibility
-Plug and play design,supports quick installation and configuration.
-Switch communication protocol through parameter settings to adapt to different scenario needs.
3.Technical parameters
Project Parameters
Number of ports 1 port(RJ-45)
Protocol supports PROFINET IO,EtherNet/IP,Modbus TCP
Power supply requirements Power supply through the inverter power supply(refer to the equipment manual for details)
Physical interface 20-core connector(automatically connect power and signal)
Dimensions and Weight Standard Industrial Module Size(approximately 11×1×1 cm,1 kg)
4.Installation and configuration
Mechanical installation
-Insert the module into the option slot of the inverter,secure the lock and tighten the screw(0.8 N·m torque).
-Ensure the shield is grounded to enhance anti-interference capability.
Parameter settings
-Enable module through the inverter control program(parameter 50.01 is set to”Enable”).
-Configure IP address,subnet mask and protocol type(such as PROFINET needs to set index 51.02).
Network debugging
-Access the module IP address through the browser,enter the last six digits of the MAC address(caps without hyphen)as password to log in to the configuration interface.
5.Safety precautions
Operating qualifications:Only qualified electrical engineers are allowed to install and maintain.
Power-off operation:Disconnect the power supply before installation and wait for at least 5 minutes to discharge to avoid the risk of electric shock.
Environmental requirements:Avoid high-temperature and high-humidity environments and ensure that heat dissipation and protection measures are in place.
