描述

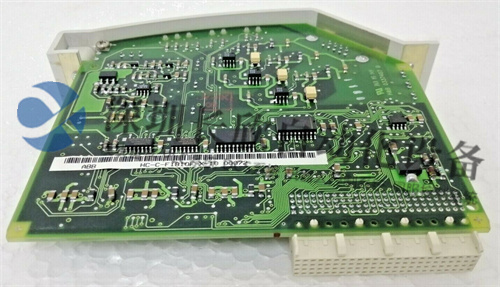

ABB FI810F 3BDH000030R1是一款高性能的工业自动化模块，主要用于实现工业设备与控制系统之间的通信。以下是其产品详情：
基本信息
品牌：ABB
型号：FI810F 3BDH000030R1
产品类型：现场总线模块
供电电源：24V DC（±15%波动范围）
功耗：≤5W
重量：约0.261kg
技术参数
通信协议：支持Profinet、Modbus TCP、CANopen、EtherNet/IP等主流工业协议。
总线接口：双冗余RJ45以太网口（支持10/100Mbps自适应）+CAN总线接口（1MBd）。
隔离电压：通道间/通道对地2500V DC（电气隔离）。
工作温度范围：-25℃至+70℃。
防护等级：IP20（模块本体），支持IP67防护接线端子。
安装方式：35mm标准DIN导轨安装，兼容ABB Freelance 2000机架。
信号指示灯：双色LED（绿色=链路正常，红色=故障告警），每端口独立状态指示。
产品特点
多协议自适应：内置协议转换引擎，可同时处理Profinet与Modbus TCP双协议栈数据交互，协议转换延迟<2ms。
工业级冗余通信：支持AC800F冗余控制器双链路热备，单链路故障时自动切换时间<50ms。
强电磁兼容性：通过IEC 61000-6-2/4标准，可承受10V/m（80MHz-1GHz）射频辐射干扰、4kV（线-线）/8kV（线-地）静电放电、100A/50μs浪涌冲击。
即插即用与可视化诊断：支持ABB System 800xA工程软件自动扫描设备，通过LED指示灯与系统日志，可快速定位物理层、数据链路层和应用层故障。
应用领域
能源行业：用于变电站DCS系统，连接智能电表与调度中心，实现数据同步。
化工行业：通过冗余链路连接不同装置，接入第三方监测系统，读取公用工程数据，优化能源调度。
冶金行业：在高温环境下实现冗余通信连接，接入激光测距仪等设备，确保生产安全和精度。
The ABB FI810F 3BDH000030R1 is a high-performance industrial automation module primarily used for communication between industrial equipment and control systems.Here are its product details:
Basic Information
Brand:ABB
Model:FI810F 3BDH000030R1
Product Type:Fieldbus Module
Power Supply:24V DC(±15%tolerance)
Power Consumption:≤5W
Weight:Approx.0.261kg
Technical Parameters
Communication Protocols:Supports major industrial protocols such as Profinet,Modbus TCP,CANopen,and EtherNet/IP.
Bus Interface:Dual redundant RJ45 Ethernet ports(10/100Mbps auto-sensing)+CAN bus interface(1Mbps).
Isolation Voltage:2500V DC between channels and to ground(electrical isolation).
Operating Temperature Range:-25°C to+70°C.
Protection Level:IP20(module body),IP67 rated terminal block.
Installation Method:35mm standard DIN rail mounting,compatible with ABB Freelance 2000 rack.
Status Indicators:Dual-color LED(green=normal operation,red=fault alert),individual status indicator per port.
Product Features
Multi-protocol Support:Built-in protocol conversion engine for simultaneous handling of Profinet and Modbus TCP data,with protocol conversion latency<2ms.
Industrial-grade Redundant Communication:Supports AC800F redundant controller dual-link hot standby,automatic switchover time<50ms upon single link failure.
High Electromagnetic Compatibility:Compliant with IEC 61000-6-2/4 standards,withstands 10V/m(80MHz-1GHz)RF radiation,4kV(line-to-line)/8kV(line-to-ground)ESD,and 100A/50μs surge.
Plug-and-Play and Visual Diagnostics:Supports automatic device scanning by ABB System 800xA engineering software;LED indicators and system logs facilitate quick fault location at physical,data link,and application layers.Application Areas
Energy Industry:Used in substation DCS systems to connect smart meters with the control center,enabling data synchronization.
Chemical Industry:Establishes redundant communication links between different equipment,integrates with third-party monitoring systems,accesses utility data,and optimizes energy management.
Metallurgy Industry:Provides redundant communication in high-temperature environments,integrates with devices such as laser rangefinders,ensuring production safety and accuracy.
