描述

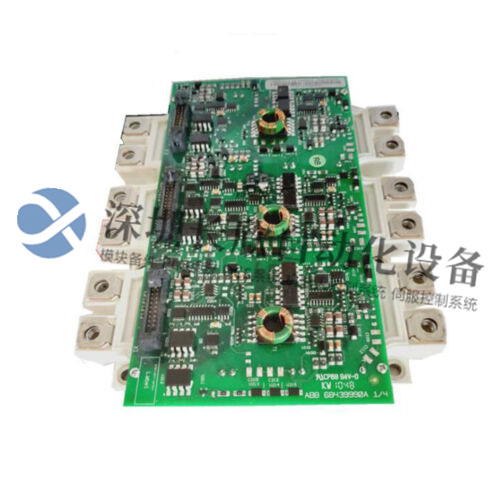

ABB FS450R12KE3 AGDR-71C是由IGBT模块（FS450R12KE3）和驱动板（AGDR-71C）组成的变频器关键组件，主要用于高功率电机控制和变频调速应用。以下是其产品详情：
IGBT模块（FS450R12KE3）
生产厂家：Infineon（英飞凌）
电压等级：1200V（集电极-发射极击穿电压）
电流等级：450A（连续集电极电流），峰值可达600A
功率：最大2100W
封装：EconoPACK+（英飞凌标准封装），尺寸162×150×17mm
工作温度：-40°C~+125°C（结温）
技术特点：采用沟槽场截止（Trench Field Stop）技术，可降低导通损耗，提高开关频率；六单元（Hex）IGBT结构，适用于三相逆变器设计；集成NTC热敏电阻，能实时监测模块温度，防止过热损坏。
驱动板（AGDR-71C）
生产厂家：ABB
主要功能：提供栅极驱动信号，确保IGBT正确导通和关断；具备短路保护功能，能检测过流并快速关断IGBT；通过NTC反馈进行温度监测，防止过热运行；通过排线与主控板（AINT）连接，接收控制信号，并反馈状态信息。
兼容性：适用于ABB ACS800、ACS880等系列变频器，可与APOW电源板、AINP输入桥控制板等配套使用。
The ABB FS450R12KE3 AGDR-71C is a key component for frequency inverters,consisting of an IGBT module(FS450R12KE3)and a driver board(AGDR-71C).It is primarily used in high-power motor control and variable frequency speed control applications.Here are the product details:
IGBT Module(FS450R12KE3)
Manufacturer:Infineon
Voltage Rating:1200V(Collector-Emitter Breakdown Voltage)
Current Rating:450A(Continuous Collector Current),Peak up to 600A
Power:Maximum 2100W
Package:EconoPACK+(Infineon standard package),Dimensions:162×150×17mm
Operating Temperature:-40°C~+125°C(Junction Temperature)
Features:Utilizes Trench Field Stop(TFS)technology to reduce conduction losses and increase switching frequency;Hex-IGBT structure suitable for three-phase inverter design;Integrated NTC thermistor for real-time temperature monitoring to prevent overheating.
Driver Board(AGDR-71C)
Manufacturer:ABB
Main Functions:Provides gate drive signals to ensure proper IGBT conduction and switching;Includes short-circuit protection,detecting overcurrent and rapidly shutting down the IGBT;Monitors temperature via NTC feedback to prevent overheating;Connects to the main control board(AINT)via a cable to receive control signals and feedback status information.
Compatibility:Suitable for ABB ACS800,ACS880 series frequency inverters;Compatible with APOW power supply board,AINP input bridge control board,etc.
